Lifting Equipment MID Rise Scissor Lifts Construction Machinery

• Warranty：1 Year
• Type：Double Cylinder Hydraulic Lift
• Lifting Capacity：3T
• Driving Type：Hydraulic
• Certification：CE, ISO
• Driving Motor Number of Mechanical Lift：1

=== Base Info ===

• Double Cylinder Lift Type：Thin Plate Type
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Eounice
• Design：Scissor
• Lifting Time：30
• Lifting Height：1000mm (39 3,8′′)
• Minimum Height：110mm (4 5 ,16′′)
• Runway Length：1420mm (55 7,8′′)
• Overall Length (Inc.Ramps)：2015mm (79 5,16′′)
• Runway Width：520mm (20 1,2′′)
• Gross Weight：564kgs (1, 243lbs)
• Motor Power：2.2kw (3HP)
• Transport Package：Container
• Specification：1850*1650*250mm
• Trademark：Eounice
• Origin：China
• HS Code：8425429000
• Production Capacity：10000

=== Description ===

Basic Info.

Double Cylinder Lift Type Thin Plate Type Shearing Lift Type Small Shear Type Condition New Brand Eounice Design Scissor Lifting Time 30 Lifting Height 1000mm (39 3/8′′) Minimum Height 110mm (4 5 /16′′) Runway Length 1420mm (55 7/8′′) Overall Length (Inc.Ramps) 2015mm (79 5/16′′) Runway Width 520mm (20 1/2′′) Gross Weight 564kgs (1, 243lbs) Motor Power 2.2kw (3HP) Transport Package Container Specification 1850*1650*250mm Trademark Eounice Origin China HS Code 8425429000 Production Capacity 10000

Product Description

TECHNICAL DATA :


Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Runway Length	Overall Length (Inc.Ramps)	Runway Width	Gross Weight	Motor Power
ON-7802L	3,000kgs (6,600LBS)	≤30S	1000mm (39 3/8")	110mm    (4 5 /16")	1420mm (55 7/8")	2015mm (79 5/16")	520mm (20 1/2")	564kgs (1,243LBS)	2.2KW (3HP)

PRODUCT INTRODUCTION


1. CE approval by TUV.
2. 3,000Kg (8,000LBS.) lifting capacity.
3. Portable design and the lift can be moved easily.
4. Durable cylinders with anti-surge valves.
5. Pneumatic safety lock release system.
6. 24V low voltage electrical control system.
7. Self-lubricated bushing and bearing.
8. Standard with height limit switch.
9. Standard with mobile kit makes the lift move in the garage easily.
10. Standard with aluminum motor power unit.
11. Standard with power arm to start the lift easier.

MAIN FEATURES

1. Portable design and the lift can be moved easily.
2. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
3. The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

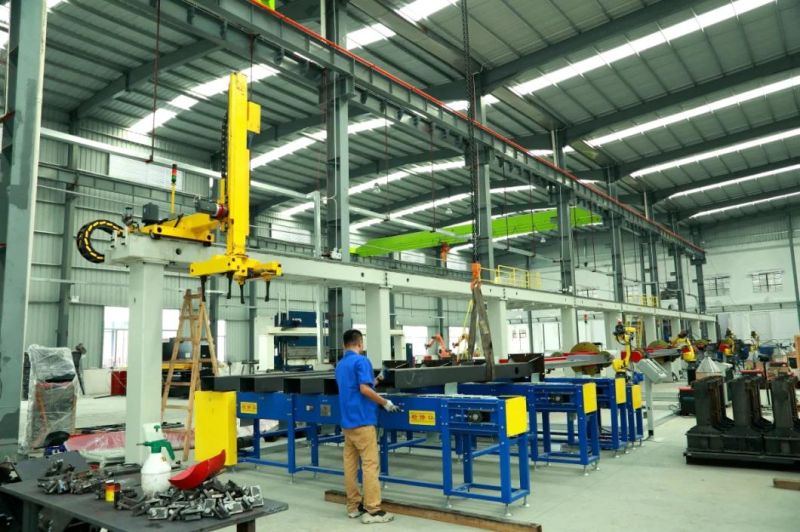

OUR FACTORY






Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

 The Some buyer  maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
