Outdoor P10 Front Service Advertising Display Screen Car LED

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：OF-P10S
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Alu,Steel
• Brightness：6000nits
• Refresh Rate：>1920Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Plywood Cases
• Specification：960x960mm 1280x1280mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Part 3: Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.





Part 4: Technical Specification

Item

Outdoor  front service back service led display screen

Model Number

P3 to P20

Pixel Pitch

3mm-20mm

Pixel Density

2500 -111111 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size

320x160mm (options)

Module Resolution

32*16 pixels

Min.Viewing Distance

3-50 m

Brightness

>6000

Viewing Angle

≤140°

Average Power Consumption

300 W/M2

Scan Mode

1/2 Scan

Protection Level

IP65/IP54

Cabinet Size

960x960mm / 960x640mm / 960x1280mm / 1280x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

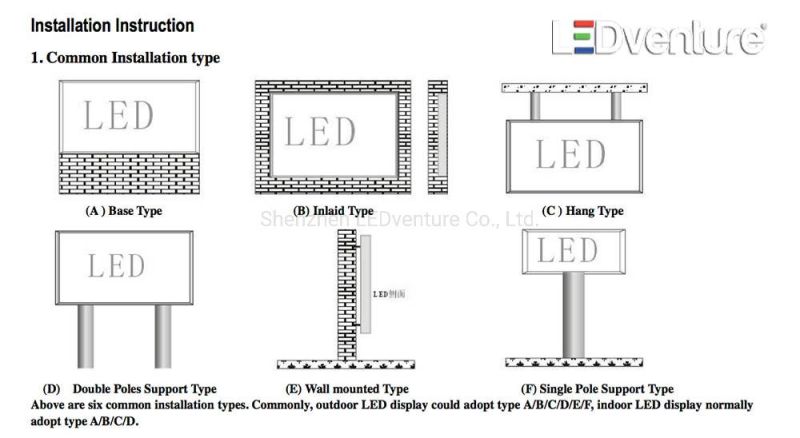

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.




Part 6: Packing information by plywood cases, packing well and easy to load


Part 7: Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure

Part 9: LED display screen installation cases

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
