P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel

Hangzhou Awesome Imp&Exp. Co., Ltd. / 2022-06-27

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:4.81mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:350W , m²

=== Base Info ===

  • Model NO.:OX-P4.81
  • Pixel Density:43264 Pixels,M2
  • Scanning Mode:1,16 Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, UL, CCC, ETL
  • Cabinet:Alu,Steel
  • Weight:35,50 Kg,M2
  • Brightness:>6500nits
  • LED Lamps:SMD 3 in 1
  • PSU:5V 60A
  • Refresh Rate:>3840Hz
  • Contrast Rate:3000:1
  • Voltage:AC110-240V
  • Driver IC:Constent Current
  • System:Nova
  • Transport Package:Plywood Cases
  • Specification:1000x1000mm
  • Trademark:LEDventure
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:2000sqm,Month

=== Description ===
Overview Product Description

P3.91 P4.44 P4.81 P5.33 P6.67 P10 Full Color Outdoor Front Service LED Advertising Display Screen Billboard is very hot sale for outdoor media solution series, it is very cost effective, and high refresh rate more than 3840hz , also light weight design cabinet for options, image quality is top, running stable, resolution is high density, plus simple installation to make this series more and more popular in indoor outdoor media screens.

Detailed Photos

P3.91 P4.44 P4.81 P5.33 P6.67 P10 Full Color Outdoor Front Service LED Advertising Display Screen Billboard Product detail images

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel



Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel
P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel


Technical Specification



Item

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel

Pixel Pitch

4.81mm

Pixel Density

43264 pixels/M2

Pixel Configuration

SMD 3 IN 1

Module Size

250x250mm

Module Resolution

52*52 pixels

Min.Viewing Distance

5m

Brightness

>6500 nits

Viewing Angle(degree)

≤140°

Average Power Consumption

350 W/M2

Scan Mode

1/16 Scan

Protection Level

IP65/IP54

Cabinet Size

750x500mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ/60HZ

Refresh Rate

> 3840hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

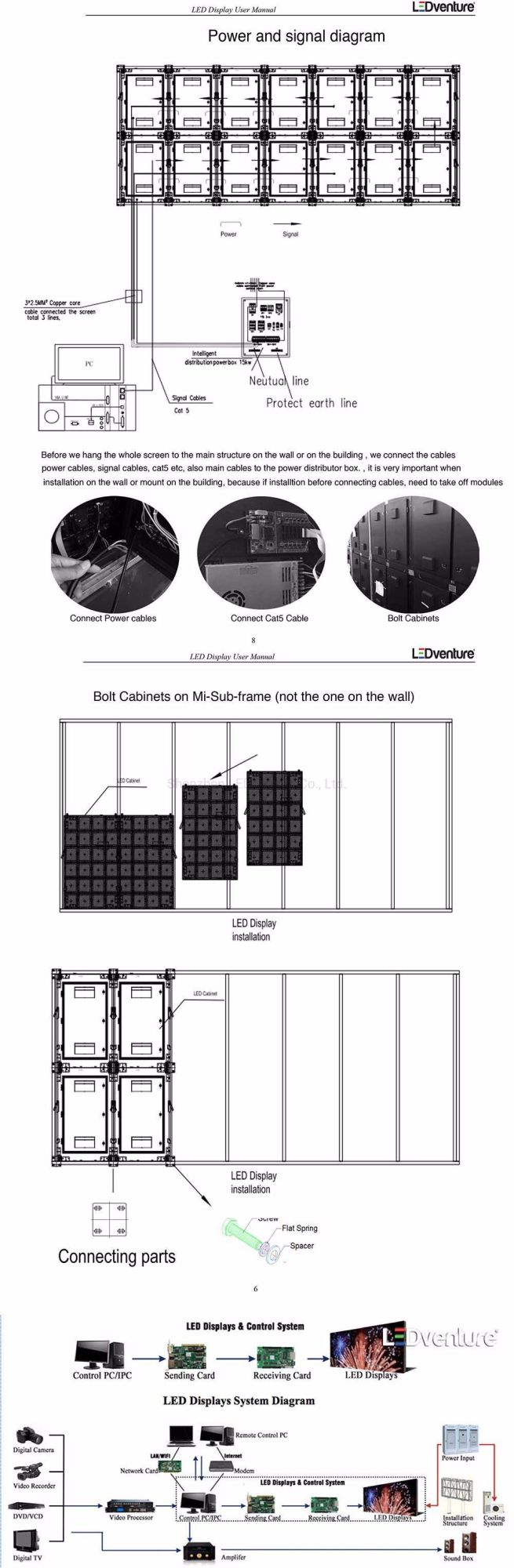

Installation Methods

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel
P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel






Packing Information

By plywood cases, packing well and easy to load.

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel




Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

P4.81 High Quality Outdoor Digital Advertising Board Screen LED Display Panel
