Indoor P2.5 320X160mm Full Color LED Advertising Display Screen

Hangzhou Awesome Imp&Exp. Co., Ltd. / 2022-06-27

Indoor P2.5 320X160mm Full Color LED Advertising Display Screen

  • Tube Chip Color:Full Color
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Pixel Pitch:2.5mm
  • Pixel Configuration:1R,1G,1B
  • Pixel Density:160000 Pixels,M2
  • Scanning Mode:1,16 Scan

=== Base Info ===

  • Model NO.:P2.5
  • System Operating Platform:XP,Win7,Win10,Mac
  • Display Type:LED Video Display
  • Application:Stage Performance, Advertising, Shopping Guide, Theater
  • IP Rating:IP31
  • Certification:CE, RoHS, UL, CCC, ETL
  • Cabinet Material:Aluminium
  • Cabinet Weight:35kg,M2
  • Brightness:>1000 Nits
  • Refresh Rate:>1920 Hz
  • Grey Scale:16 Bits
  • LED Brand:Nationstar,CREE
  • LED Chip:Epistar,CREE
  • Driver IC:Mbi5124,Mbi5252,Mbi5153
  • Power Supply:MW,G-Energy
  • Repair Access:Both Front Access and Rear Access
  • Connector:Lk,Nuetrick,Seetronic,Invisible
  • Transport Package:Plywood Cases
  • Specification:640x480mm
  • Trademark:LEDventure
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:4000m2,Month

=== Description ===
Overview Product Description

P2.5 indoor led screen is a popular product in Indoor fixed series. Module size is 320x160mm, cabinet size is usually 640x480mm, cabinet size and screen size can be customized by project requirements.

It use for commercial advertising, cctv lives, theater, shopping mall, stadium etc.
- Light weight cabinet
- Fast installation
- High contrast rate
- High refresh rate >1920HZ
- Stable driver IC solution
- Long life span

Product Parameters



Indoor P2.5 320X160mm Full Color LED Advertising Display ScreenIndoor P2.5 320X160mm Full Color LED Advertising Display ScreenIndoor fixed series led display screenPixel Pitch2.5mm/3mm/4mm/5mm/6mm/7.62mm/10mmModule160*160mm/192*192mm/244*122mmCabinet640*640mm/960*960mm/976*976mm/1024*1024mmBrightness>1000 nits

Item

Indoor Fixed Series Advertising LED Display Screen

Model Number

IF-P2.5

Pixel Pitch

2.5mm

Pixel Density(pixels/M2)

160000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size(mm)

320x160mm

Module Resolution(pixels)

128*64

Min.Viewing Distance(m)

2.5

Brightness(nits)

1000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

1/16 Scan

Protection Level

IP31

Cabinet Size(mm)

640x480mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Project Cases

P2.5 Indoor led full color display screen for advertising 640*480mm sizes are not limited by technology, the sizes we can make according the smallest part led modules, small size as a few square meters, big as thousands square meters are no problems, also, we can provide customers gold radio 4:3 or 16:9 resolutions.
Indoor P2.5 320X160mm Full Color LED Advertising Display ScreenIndoor P2.5 320X160mm Full Color LED Advertising Display ScreenIndoor P2.5 320X160mm Full Color LED Advertising Display Screen

Control System

A complete set of P2.5 indoor led full color display screen for advertising 640*480mm including led modules, power supplies, cabinets, control system, etc, LEDventure provide a whole compete solutions for customers.

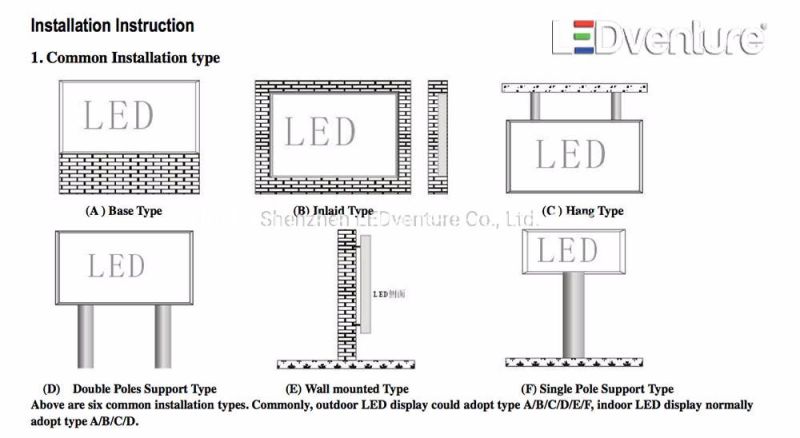

Indoor P2.5 320X160mm Full Color LED Advertising Display ScreenInstallation Instructions

P2.5 indoor led full color display screen for advertising 640*480mm installation usually mounted on the wall, and hanging or fixed on the structure etc, we provide a compete set of design, electric diagrame, and sending out engineer for installation if necessary.

Indoor P2.5 320X160mm Full Color LED Advertising Display ScreenCertifications

Our P2.5 indoor led full color display screen for advertising 640*480mm pass CE, EMC, UL FCC tests, meet the standard of the local market requires

Indoor P2.5 320X160mm Full Color LED Advertising Display ScreenCompany Profile

Indoor P2.5 320X160mm Full Color LED Advertising Display Screen

FAQ

Q1: Can I get a sample before official order?
A: Sample orders are available for quality check and market test.

Q2: What is your payment method?
A: Our usually practice for payment is by T/T for the mass order.
 At least 30-50 % deposit in advance, and the balance should be paid before delivery.

Q3: What is your shipping and packing way?
A: We do plywood case or flight case as per customers' requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline.

Q4: Can we make any size of led display?
A: Nope, according the led module size or cabinet size.

Q5: How to install led display?
A: We will provide drawing of steel structure or hanging truss according to your requirements, you can install the led display according to the installation guide.


Q6: Is Available to print customer required logo on your LED product?
A: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.
