Ce Approved Economical Car Spray/Paint Booth/Baking Oven

Yumyth Electronic Tech Co., Limited / 2022-06-23

Ce Approved Economical Car Spray/Paint Booth/Baking Oven

  • After-sales Service:Available
  • Warranty:12months
  • Type:Auto Painting Spray Booth Bake Oven for Car
  • Certification:CCC, CE, GS, SGS
  • Substrate:Steel
  • Brand:Hongyuan

=== Base Info ===

  • Model NO.:HY-CB55B
  • Coating:Painting
  • Airflow Direction:Fully Undershot-type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Color:Red, Blue, White
  • Panel:50,75mm EPS Foam Panel
  • Grate:3rows
  • Ramp:2pieces
  • Heating System:Gas, Diesel, Oil, Used Oil, Electric
  • Filter System:4-Stage Filtration System
  • Upper Light:Available
  • Side Light:Optional
  • Control Box:English Panel
  • Standard Voltage:380V,3f&220V,1f@50Hz
  • Control:Automatic
  • Drawing:Available
  • User Manual:Available
  • Related Product 1:Large Truck Paint Spray Booth
  • Related Product 2:Folding Retractable Paint Spray Booth
  • Transport Package:Proper Packing Suitable for Sea Shipment
  • Specification:25cbm for a 20ft container loading.
  • Trademark:Hongyuan
  • Origin:Shandong, China
  • Production Capacity:100 Set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 3rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with diesel Burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner
ModelHY-CB55B
Outside Size(mm)7000(L)*4000(W)*3400(H)
Inside Size(mm)6900(L)*3900(W)*2700(H)
Front Door(mm)3000*2600(W*H)
Side Door(mm)650*2000(W*H)
Total power<17kW
Voltage status380V/3ph&220V/1ph@50Hz
Wall Panel50mm EPS foam panel
Ceiling panelGalvanized steel
Basement&floorRaised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
IntakeTWO set of fan, motor: 3kW.
Exhaust One set of fan, motor: 5.5kW.
By-passPneumatic damper from spraying to baking cycle
Heating System(Oil)Italy Riello one-stage oil burner/electric heaters/Gas burner.
Filter System4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting Upper lights, 8units, 4*36W each.
Control System1set.

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
Ce Approved Economical Car Spray/Paint Booth/Baking OvenCe Approved Economical Car Spray/Paint Booth/Baking OvenCe Approved Economical Car Spray/Paint Booth/Baking Oven

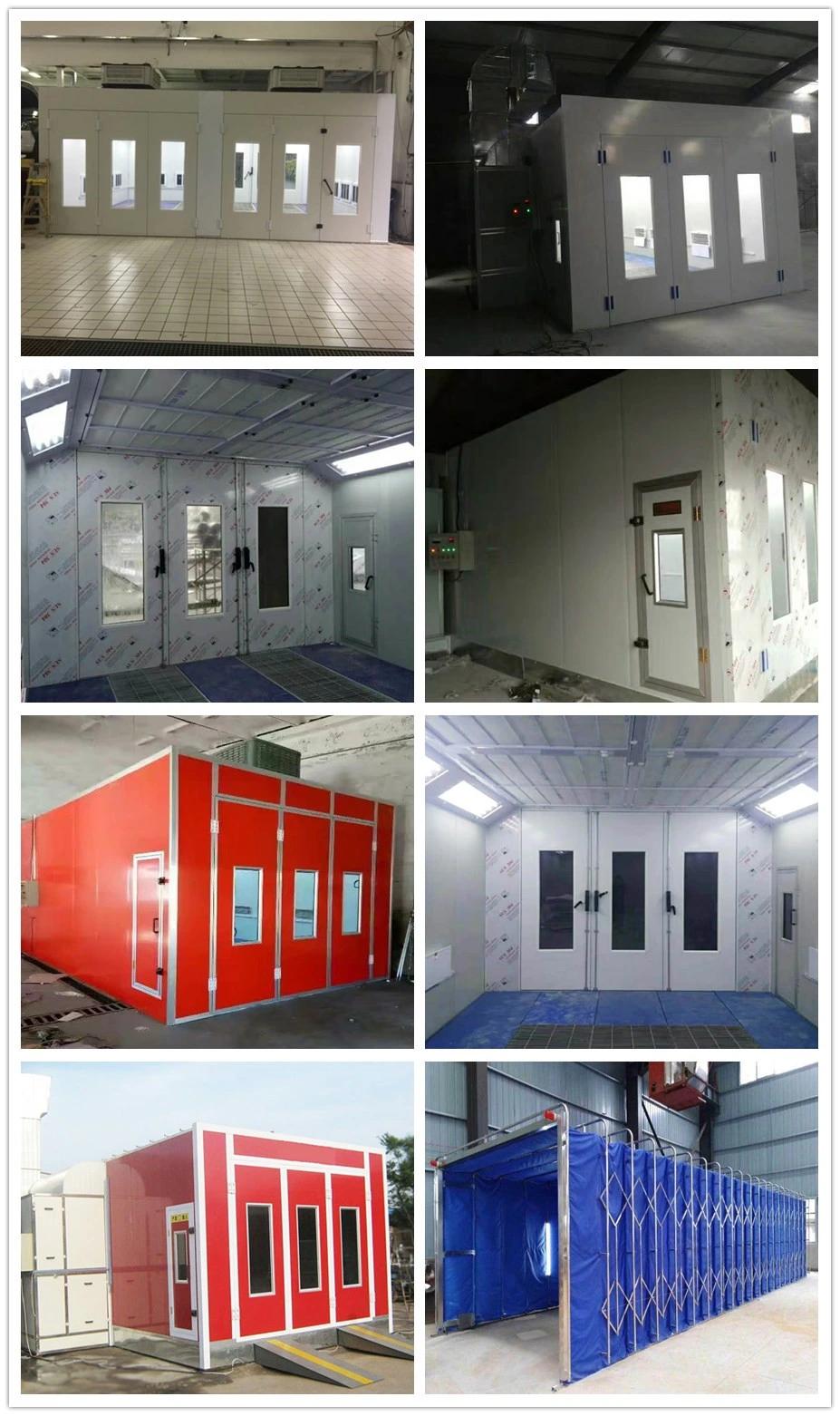

Project case for paint booth
Ce Approved Economical Car Spray/Paint Booth/Baking Oven
Ce Approved Economical Car Spray/Paint Booth/Baking Oven
Package show

Production area and equipment show

Ce Approved Economical Car Spray/Paint Booth/Baking Oven

Certificate of our product and company
Ce Approved Economical Car Spray/Paint Booth/Baking Oven
Our Team is serving you at any time Ce Approved Economical Car Spray/Paint Booth/Baking Oven
