4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift

• Warranty：1 Year
• Type：Four Cylinder Hydraulic Lift
• Lifting Capacity：4T
• Driving Type：Hydraulic
• Certification：CE, ISO
• Driving Motor Number of Mechanical Lift：1

=== Base Info ===

• Model NO.：ON-7804B
• Double Cylinder Lift Type：Thin Plate Type
• Shearing Lift Type：Ultrathin Type
• Condition：New
• Brand：Eounice
• Design：Scissor
• Transport Package：Iron Shaf
• Specification：4800*560*700MM
• Trademark：Eounice
• Origin：China
• HS Code：8425429000
• Production Capacity：1000

=== Description ===

Basic Info.

Model NO. ON-7804B Double Cylinder Lift Type Thin Plate Type Shearing Lift Type Ultrathin Type Condition New Brand Eounice Design Scissor Transport Package Iron Shaf Specification 4800*560*700MM Trademark Eounice Origin China HS Code 8425429000 Production Capacity 1000

Product Description

TECHNICAL DATA:

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Runway Length	Overall Length (Inc.Ramps)	Runway Width	Gross Weight	Motor Power
ON-7804B	4,000kgs (9,000LBS)	≤50S	1800mm (70 7/8")	195mm    (7 11 /16")	4500mm (177 3/16")	5480mm (215 3/4")	620mm (24 7/16")	2,030kgs (4,475LBS)	2.2KW (3HP)

PRODUCT INTRODUCTION:

1. CE approval.
2. 4,000Kg (9,000LBS.) lifting capacity.
3. Low profile design for all quick inspections, body diagnostics, tire and body repairs.
4. Secondary lifting platform for easy maintenance of tires, and the platform can be extended for vehicles with different wheelbases.
5. Mechanical lock device to ensure the safety of the lift operation.
6. Pneumatic safety lock release system.
7. 24V low voltage electrical control system.
8. Alarm buzzer during full-range of lift descent.
9. Self-lubricated bushing and bearing.
10. Hydraulic valve plate with manual unloading knob. In the event of a power outage, the vehicle being repaired on the lift can also be safety and smoothly lowered.
11. Standard with aluminum motor power unit.

MAIN FEATURES:

1. Low profile design, min height is only 195mm (7 11/16"), suitable for low-chassis vehicles.
2. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
3. Large diameter 2-Dual synchronous cylinder (master cylinder 80mm), easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

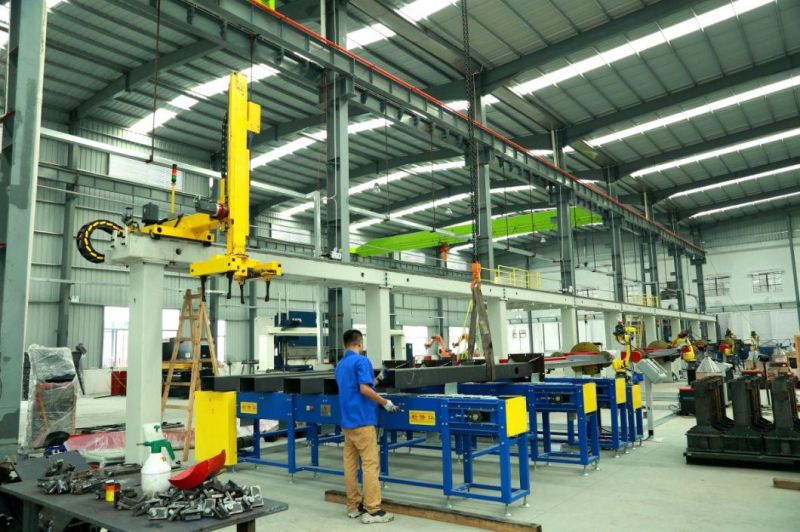

OUR FACTORY:




Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

 The Some buyer  maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
