Factory Price High Quality Spray Booth From Infitech

Hangzhou Mig Packaging Co., Ltd. / 2022-06-23

Warranty：2 Years
Type：Spray Booth
Certification：CE
Substrate：Steel
Brand：Infitech
Coating：Powder Coating

=== Base Info ===

Airflow Direction：Fully Undershot-type
Heating Mode：Diesel
Paint Mist Treatment：Dry-type
Condition：New
Walls：50mm Thick Rock Wool Panel
Plenum Height：600mm
Basement Height：350
Filter Area：32mm2
Filters：High Efficiency Filters
Fan：Centrifugal Fan, 35,000m3,H
Empty Loaded Air Speed：0.3m,S
Heat：315kw Heat Exchanger
Noise：<78dB
Transport Package：Polyfoam and Metal Frame
Specification：8000*4000*2800mm(L*W*H)
Trademark：INFITECH
Origin：Guangzhou, China
HS Code：8419899090
Production Capacity：900 Sets,Year

=== Description ===
INFITECH European standard luxury auto refinish car automotive waterborne water based spray paint boothDesign standardBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009AirflowFull downdraftInternal dimensions8000 x 4000 x 2800mm (L X W X H)External dimensions8110 x 5760 x 3810mm (L X W X H)Plenum height600mmBasementFull grids, 350mm highDrive-in ramp1 set, pneumaticEntrance door1 set, 3200 X 3050mm (W X H)Personnel door1 set, 800 X 2000mm (W X H)Ceiling lighting10 sets, each 4 X 18W, 720W total, LED lampSidewall lighting10 sets, each 2 X 18W, 360W total, LED lamp Brightness >1,000LUXPurification Pre-filter, ceiling filter, floor filter, extract filter Air intake Direct-type turbine fan, 11KW, SIEMENS Air exhaust Direct-type turbine fan, 11KW, SIEMENS Air volume35,000m³/h Empty loaded air speed +/-0.30m/sHeating system315kw heat exchanger, RIELLO gas burner RS5D Controls CE standard control box Rated power26KW
Features

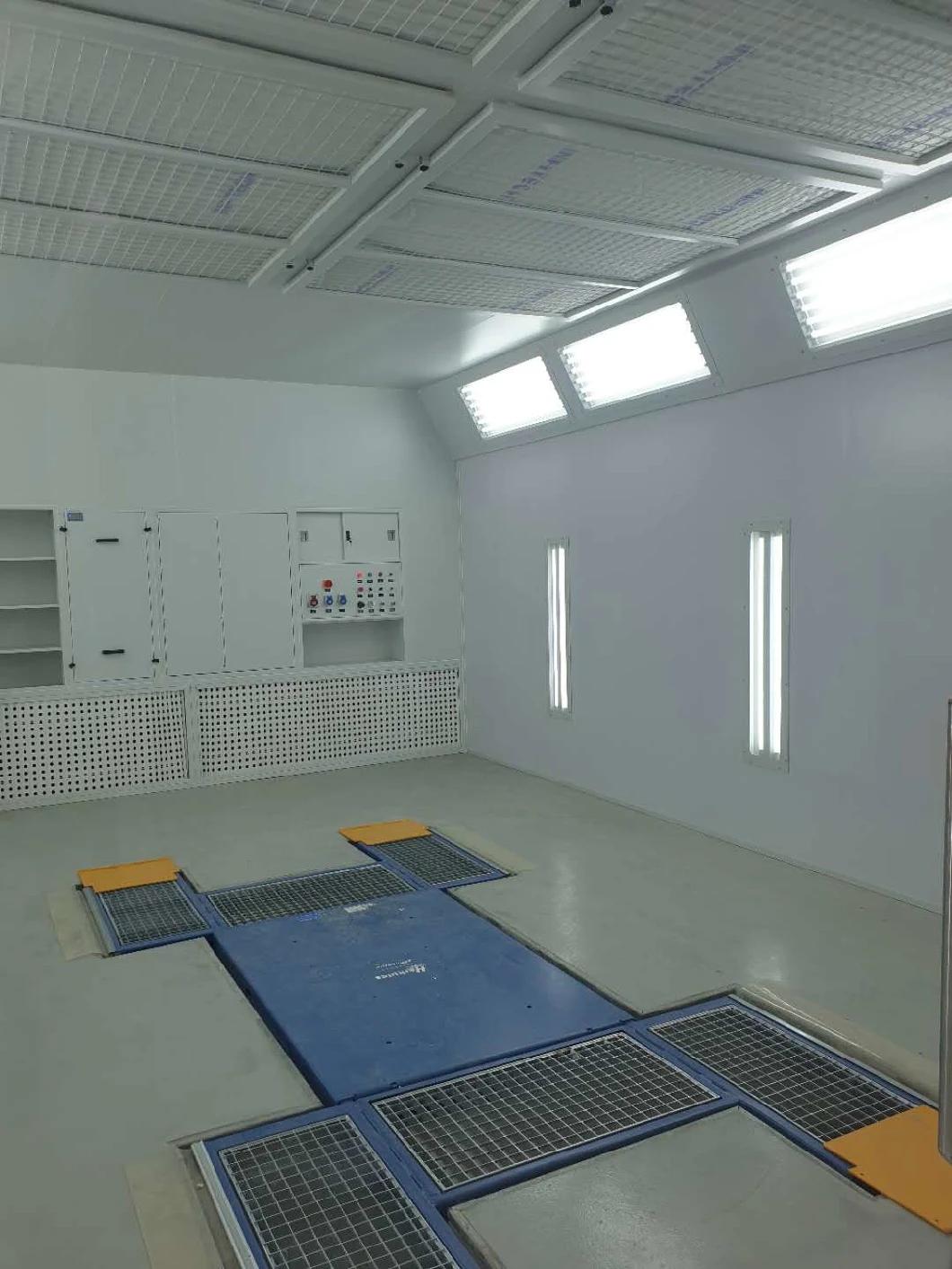

Airflow • Downdraft for spray and cure • Controlled airflow ceiling	Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids (900kg/wheel), 350mm high basement
Doors • 3-wing entry door with tempered glass window • Personnel door with observation window	Heat • Intake and exhaust motors, 11kw, SIEMENS motor • RIELLO gas burner RS5D, 315kw heat exchanger

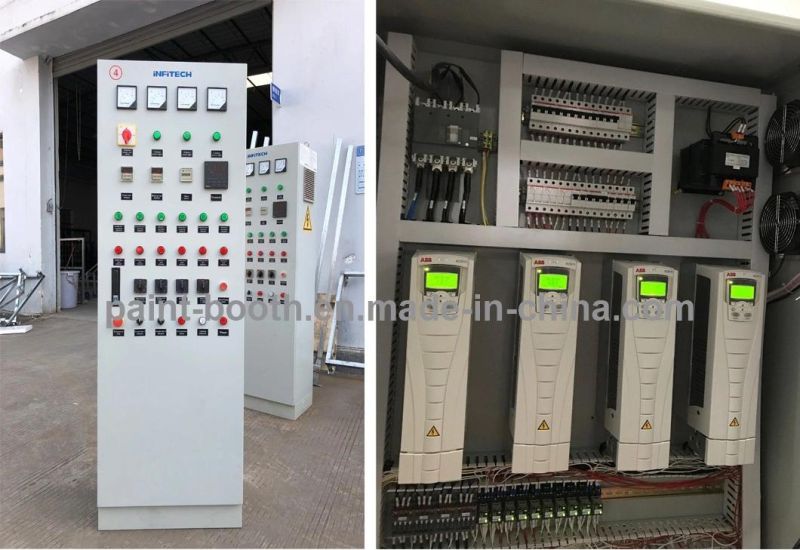

Filtration • Pre-filter: EU3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Extract filter: Simple activated carbon filters	Controls • PLC controller, pressure gauge Functions: Painting, flash, baking, cooling, lighting, emergency stop switch, failure indication, over-temperature alarm indication, motor over-load and over-current protection

Packaging & Shipping
Factory Price High Quality Spray Booth From Infitech

Engineering cases
Factory Price High Quality Spray Booth From Infitech

Company introduction
INFITECH is professional manufacturer of CE standard spray booths. We provide complete spray workshop solution including design and layout, technical consultation, manufacturing, sales, installation and maintenance. And we pride ourselves in providing personalized and ideal paint workshop solution that best suit customers' requirements, helping improve workflow, and maximize profits for shop owners.
