Autocare Truck Paint Booth Big Industrial Spray Booth with High Quality

• After-sales Service：on Line Service
• Warranty：12 Months
• Type：Spray Booth
• Certification：CCC, CE, CSA, GS, ISO9001
• Substrate：Steel
• Brand：Guangli

=== Base Info ===

• Model NO.：GL
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：4.0
• Door Height(M)：4.0
• Air Flow (M3/H)：72000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Truck
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 4.0 Door Height(M) 4.0 Air Flow (M3/H) 72000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Truck Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

<sub><sup>Full Downdraft Auto Paint Spray Booth

Spray paint booths represent one of the greatest improvements made toward cost-effective productivity in modern manufacturing. You maybe have some items to paint in a spray booth, like cars, trucks, boats, planes, parts and furniture, no matter what size, industry or application, we can design to fit your needs.
This car paint booth is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand.</sup></sub>

GuangLi Truck Spray Paint Booths Feature

1.Body
--Wall panel :sandwich style,δ=75mm,polystyrene.(Rock wool as optional)
--Basement:Concrete Structure made by customers.2rows of grids. Personnel Lift as optional.
--Ramps:NO.
--Door:4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
2.Air System(two sets),collocation of each set as below:
--Frame:steel,powder coated.
--One 11kw intake fan.One 11kw exhaust fan.
--5m straight intake ducts,one 90° bend,and one 60°bend, 5m straight exhaust ducts,one 90° bend,and one 60°bend.
--5m straight chimney and 2 small bends.
--1manual VCD exhaust damper.(Electrical VCD as optional)
--1manual VCD intake damper.(Electrical VCD as optional )
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
3.Filtration system
--Roof filter:16pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 2pc of air mouth filter.M style filtration per sets.(Bag style is optional)
4.Light System
--Upper light:20sets,4*40w per set.
--Side light:16sets,4*40w per set.(32sets,4*40w per set)
5.Electric System
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
-- 50kw power.

Model	GL10-CE
External size (m)(LxWxH)	15.2x6.7x5.0
Internal size (m)(LxWxH)	15.0x5.0x4.4
Entrance width(m)	4.0
Entrance height(m)	4.0
Fan capacity( m 3 /h )	72000
Air velocity (m/s)	0.3-0.5
Drying Temperature	20-80
Oil consumption (L/unit)	6-8
Water Paint Device	As option
Power (kw)	50
Suitable Automobile Type	Truck

GuangLi Spray Booth Show

Note:The man lift model is GL1010.It's for optional.



<sub><sup>Our installation instruction and service team



Guangli packages



Real Case

GZ Guangli's paint booths can be widely found in automotive, machinery, hardware, furniture, fiberglass products, chemical and more industries. They are approved by customers whose projects have been successfully executed by us. Whether you need a common automotive paint booth, furniture paint booth or large equipment paint booth, you can rely on GZ Guangli to get the job done with results satisfying your expectation. We thrive on servicing our customers by customizing various non-standard paint booths to your specific needs.



Factory Show

Established in 1994,GZ GUANGLI EFE CO.,LTD is located in Zengcheng,Guangzhou, combining
technology,industry and trade together and a diversified industrial enterprise mainly engaged in the
development, production and marketing of automobile maintenance equipment. It is a director unit of
China Automobile Maintenance Equipment Association Maintenance Equipment Association.

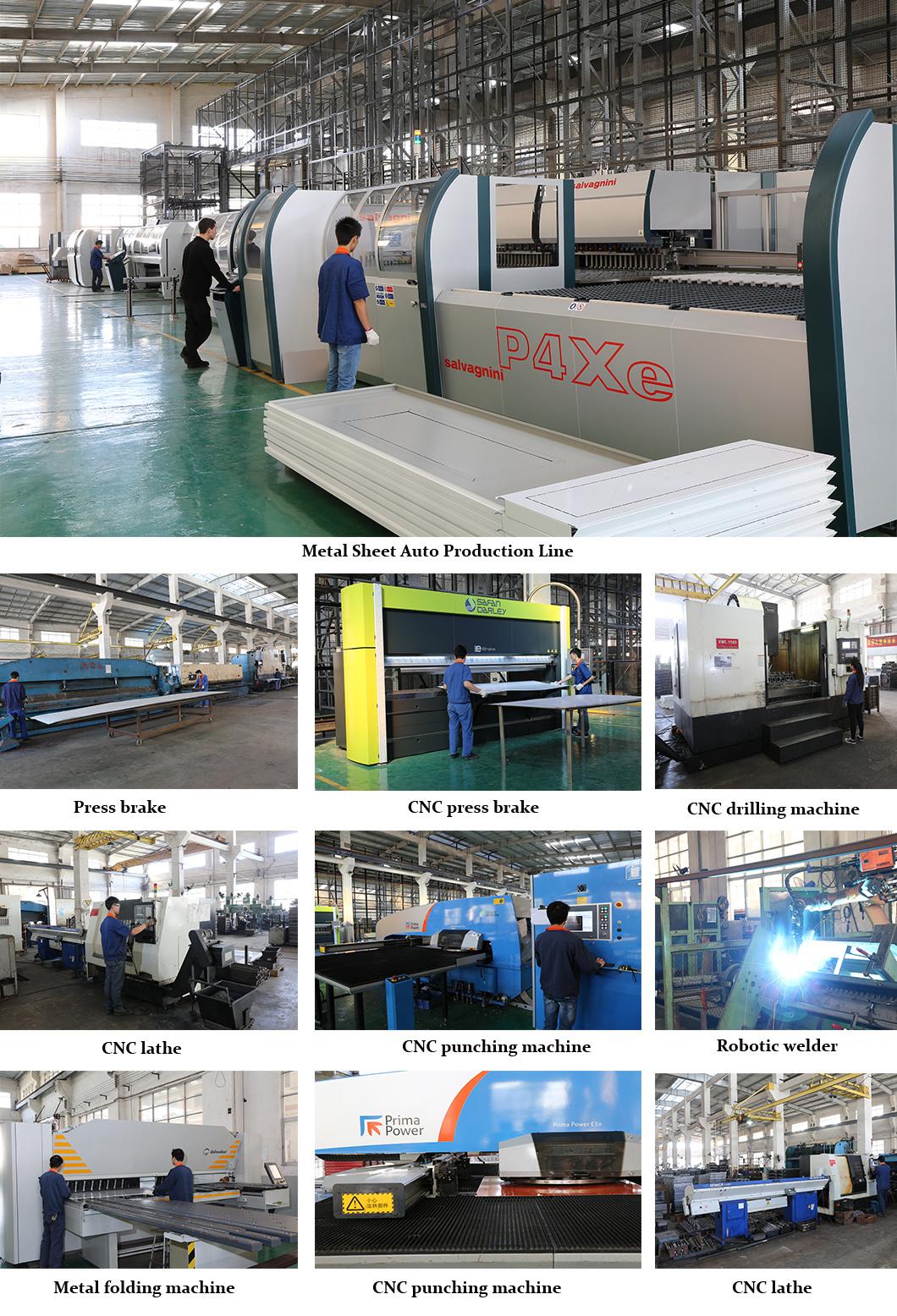

Our Production Equipment

As a trustworthy company we have heavily invested in purchasing advancedmanufacturing equipment to guarantee the high precision and premium quality for each product.
German Up&Down Bending Machine,German Welding Robot, Finland CNC Punching Machine, Italy Full-automatic Metal-plate Flexible Manufacturing Line. All our paint spray booth are molded production through these advanced machine . Good-looking and high quality compare with manual work.



Our Convention Exhibitions



Our Team



Our corporation customers
Our factory are authorised manufacturer of many different types of car brands 4S shop




Our Products Quality

GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our company is certified in accordance with ISO9001:2021 quality management system, our products have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc.



Our main markets</sup></sub>

In addition to domestic market, our paint booths have been exported to over 50 countries and regions. The sales accounted for international market is more than 50% of the total. We have won a favorable brand reputation across a diverse range of market segments worldwide.



<sub><sup>Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers manyoptions for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
