Pole Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV LED Board with P3 P4 P5 P6 P8 P10 Price

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：3.91mm - 10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：600W , m²

=== Base Info ===

• Model NO.：P4.44 P5.33 P8.33 P10.14 P12.5
• Pixel Density：65536 Pixels,M2
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>6500nits
• LED Lamps：3 in 1
• Driver IC：Constent Current
• PSU：60A
• Cabinet：Alu,Steel
• Refresh Rate：>3840Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP65,IP43
• Viewing Distance：3-10meters
• Service Solution：Front + Rear Service
• Weight：35kg,M2 (Aluminium)
• Installation：Back Fixed
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：960x960mm (Options)
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

=== Description ===

Item

P4.44 P5.33 P8.33 P10.14 P12.5 Outdoor LED Display Screen Board for Signature Billboard Advertising

Model Number

P4.44mm to 12.5mm

Pixel Density(pixels/M2)

6400 to 50625 pixels

Pixel Configuration

1G1B1B

LED Type

SMD 3 in 1

Module size(mm)

250x250mm, 300x300mm

Module Resolution(pixels)

24x24 pixels to 64x64pixels

Min.Viewing Distance(m)

3-10meters

Brightness(nits)

>6500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP65/IP43

Cabinet Size(mm)

960x960mm(option), 750x500mm (option)



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

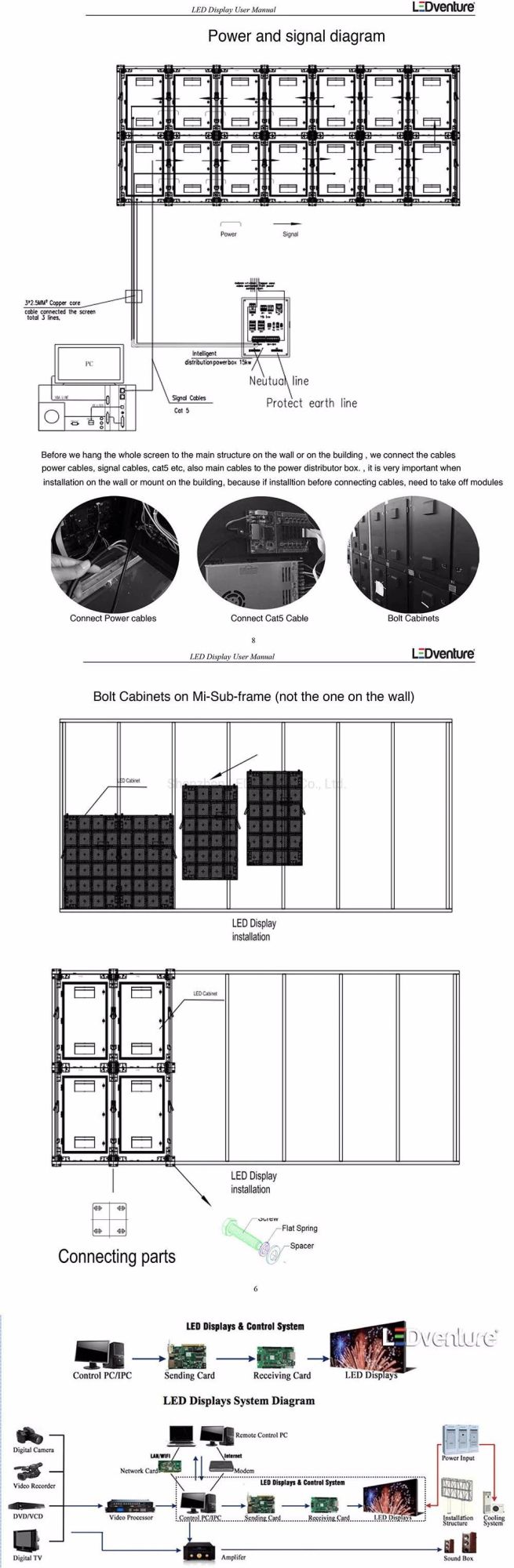

Part 5: Installation methods, outdoor led display board available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.





Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
