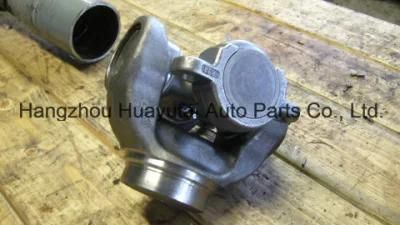

Weld Yoke for Scania, Man, Benz, Daf

=== Base Info ===

• Model NO.：Weld Yoke for SCANIA, MAN, BENZ, DAF

=== Description ===

Basic Info.

Model NO. Weld Yoke for SCANIA, MAN, BENZ, DAF

Product Description

Procue the drive shafts, cardan shafts, and components, FLANGE YOKE, TUBE YOKE, SCANIA PARTS.

Standard Part #	Series	( E )Distance Across Lugs	( D )Bearing Diameter	( M )Spline Diameter & Number	( J )Centerline to End of Spline	( Q )Length  of Thru Hole
9-3-481KX	1910	-	2.56"	3.163"-36 Inv.	8.94"	6.30"
9-3-481-1KX	1910	-	2.56"	3.163"-36 Inv.	11.94"	9.30"
9-3-351-1KX	2150	-	4.750"	5.835"-34 Inv.	20.938"	17.87"
9-3-331-4KX	2050	-	3.812"	5.835"-34 Inv.	17.56"	14.50"
9-3-331-2KX	2050	-	3.812"	5.835"-34 Inv.	11.938"	8.50"
9-3-331-1KX	2050	-	3.812"	5.835"-34 Inv.	15.438"	12.38"
9-3-261KX	1950	-	3.062"	4.167"-24 Inv.	9.688"	6.126"
9-3-241KX	1950	-	3.062"	4.167"-24 Inv.	10.875"	7.313"
9-3-221KX	1950	-	3.062"	4.167"-24 Inv.	13.875"	10.313"
8-3-431KX	1880	8.09"	2.18"	4.17"-24 Inv.	5.03"	3.62"
8-3-411KX	1880	8.09"	2.18"	3"-16	11.65"	9.62"
8-3-391KX	1880	8.09"	2.18"	3"-16	10.03"	8.00"
6.5-3-1451KX	1810	7.55"	1.94"	3.25"-18 Inv.	5.38"	3.88"
6.5-3-1431KX	1810	7.55"	1.94"	3"-16	8.94"	7.38"
6.5-3-1371KX	1810	7.55"	1.94"	3"-16	11.88"	9.50"
6.5-3-1351KX	1810	7.55"	1.94"	3"-16	10.25"	7.88"
6.3-3-41KX	1760	7"	1.94"	2.50"-16	9.25"	6.78"
6.3-3-21KX	1760	7"	1.94"	2.50"-16	11.16"	8.69"
6-3-2741KX	1710	6.09"	1.94"	2.50"-16	7.47"	7.625"
6-3-2671KX	1710	6.09"	1.94"	2.50"-16	9.59"	7.875"
6-3-2651KX	1710	6.09"	1.94"	2.50"-16	11.69"	9.25"
6-3-2631KX	1710	6.09"	1.94"	2.50"-16	8.84"	7.50"
6-3-1661KX	1710	6.09"	1.94"	3.25"-18 Inv.	4.12"	2.74"
6-3-1481KX	1710	6.09"	1.94"	3.25"-18 Inv.	4.88"	3.50"
5-3-288KX	1610	5.31"	1.88"	2"-16	9.31"	7.38"
5-3-2261KX	1610	5.31"	1.88"	2"-16	10.81"	8.38"
5-3-2141KX	1610	5.31"	1.88"	2"-16	11.94"	9.00"
5-3-198KX	1610	5.31"	1.88"	2.673"-18 Inv.	4.25"	3"
5-3-188KX	1610	5.31"	1.88"	2.673"-18 Inv.	4.00"	2.75"
5-3-168KX	1610	5.31"	1.88"	2.673"-18 Inv.	3.50"	2.25"
5-3-108KX	1610	5.31"	1.88"	2"-16	7.81"	6.38"
4-3-1751KX	1550	5.25"	1.38"	1.75"-16	5.38"	4.00"
4-3-1431KX	1550	5.25"	1.38"	1.75"-16	10.06"	8.00"
4-3-1261KX	1550	5.25"	1.38"	2.50"-16	3.50"	2.56"
4-3-1241KX	1550	5.25"	1.38"	1.75"-16	6.88"	5.50"
3-3-508KX	1410	4.44"	1.19"	1.50"-16	7.81"	6.47"
3-3-468KX	1410	4.44"	1.19"	1.50"-16	3.91"	2.75"
3-3-448KX	1350	3.88"	1.19"	1.50"-16	7.31"	6.12"
3-3-388KX	1350	3.88"	1.19"	1.50"-16	3.94"	2.75"
3-3-2381KX	1410	4.44"	1.19"	1.56"-16	11.50"	9.50"
3-3-1641KX	1480	4.44"	1.38"	1.56"-16	9.50"	7.50"
3-3-1621KX	1480	4.44"	1.38"	2.25"-10	3.72"	2.59"
3-3-1601KX	1480	4.44"	1.38"	1.56"-16	6.81"	5.50"
3-3-1511KX	1410	4.44"	1.19"	1.75"-16	3.25"	2.44"
3-3-118KX	1410	4.44"	1.19"	1.50"-16	6.50"	5.34"
2-3-5221KX	1280	3.47"	1.06"	1.38"-16	6.88"	5.38"
2-3-5221KX	1310	3.47"	1.06"	1.38"-16	6.88"	5.38"
2-3-258KX	1280	3.47"	1.06"	1.25"-16	4.12"	3.12"
2-3-258KX	1310	3.47"	1.06"	1.25"-16	4.12"	3.12"
