P4.81 Elite Max Series Rental Indoor Full Color LED Display Screen Supplier

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：4.81 mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：43264 Pixels,M2
• Scanning Mode：1,13 Scan

=== Base Info ===

• Model NO.：ELI MAX-4.8
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Rental
• IP Rating：IP30
• Certification：CE, ETL, FCC
• Cabinet Color：Black
• Cabinet Material：Die Cast Aluminum
• Best Viewing Distance：>10m
• Module Size：250X250X15 mm
• Transport Package：Plywood Case or Flight Case
• Specification：Cabinet size 500x1000x88mm
• Trademark：None
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：4000 M2,Month

=== Description ===

Basic Info.

Model NO. ELI MAX-4.8 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Rental IP Rating IP30 Certification CE, ETL, FCC Cabinet Color Black Cabinet Material Die Cast Aluminum Best Viewing Distance >10m Module Size 250X250X15 mm Transport Package Plywood Case or Flight Case Specification Cabinet size 500x1000x88mm Trademark None Origin Shenzhen, China HS Code 8528591090 Production Capacity 4000 M2/Month

Product Description

ELITE MAX Series Indoor P4.81 Full Color Video LED Display Screen Rental
Application:

1. It's a series of advanced LED screen which can be easily installed and removed.
2. Indoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of  public facilities and etc.



Product feature:

1. Slim and light weight design, convenient for installation and save transportation costs.
2. Die-casting aluminum forming process, cabinet tolerance is controlled within 0.1mm, using special connection lock, whole screen flatness and the stitching gap is less than 0.5mm.
3. Low power consumption PCB design, anti-noise cabinet design.
4. Support hanging installation and stand on floor installation, fast stitching without tools.
5. Support front service option and angle adjustment.

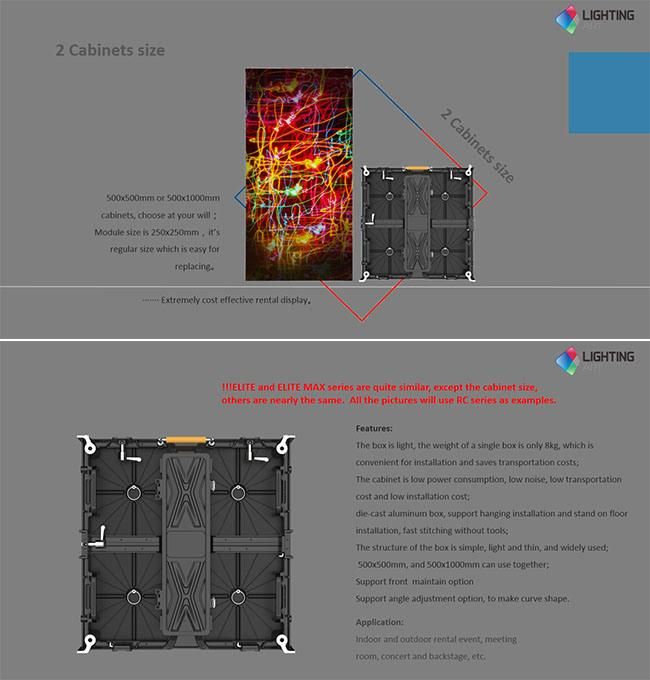

6. 500x500mm, and 500x1000mm can use together

Specification:


1	Product Type	ELI MAX-4.81
2	Pixel Pitch (mm)	P4.81
3	Module Size (mm)	250X250X15
4	Module Resolution (pixels)	52x52
5	Cabinet Size (mm)	500x1000x88
6	Cabinet Resolution (pixels)	104x208
7	Pixel Configuration	1RGB
8	LED Encapsulation	SMD2020
9	Work Voltage(DC)	5V
10	Driver Mode	1/13
11	Weight (kg)	15
12	Physical Density (Pixels/ m2)	43264
13	Brightness (NIT)	800
14	Gray Scale (BIT)	14
15	Contrast ratio	3000:1
16	Refresh Rate (Hz)	3840
17	Viewing Angle(H/V)	±140°/±140°
18	Protection Grade	IP30
19	Max Power Consumption (W/ SQM) SQm2)	424
20	Average Power Consumption (W/ SQM)	168
21	Work Temperature	-20ºC~50ºC
22	Working Humidity	10%RH~95%RH
23	Optimal Viewing Distance (m)	≥10m
24

The development ability:

1. We can provide all the accessories and software for a whole project. Including hanging bars, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc.
2. We are professional in designing and manufacturing high-end rental LED display screen.



Who we are:

We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.



Factory:

(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.



Terms:

1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
