P20 Outdoor Advertising Giant LED Display/ LED Panel/ LED Screen

Danyang Yun Kai Metal Products / 2022-06-27

P20 Outdoor Advertising Giant LED Display/ LED Panel/ LED Screen

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:20mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display
  • Average Power Consumption:200W,Sqm

=== Base Info ===

  • Model NO.:20mm
  • Pixel Density:2500dots,Sqm
  • Scanning Mode:Static Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, UL, CCC, ETL
  • Module Size:320X160mm
  • Module Resolution:16X8dots
  • Cabinet Size:1280X960X150mm
  • Cabinet Resolution:64X48dots
  • Screen Brightness:6000nits
  • Protection Grade:IP65
  • Compliance:Ce
  • Controller:Nova, Linsn
  • Maintenance:Rear Service
  • Transport Package:Plywooden Case
  • Specification:1280x960mm
  • Trademark:CKGLED
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:6000sqm,Month

=== Description ===
Pixel pitch20mmModule size320mm*160mmModule pixel16dots*8dotsDriving methodstatic constant drivingPixel configurationDIP 1R1G1BPixel density2500 dots/sqmModule resolution128dots


Cabinet specifications:
 Cabinet size1280mm*960mm*150mmCabinet resolution64dots*48dotsCabinet weight61kgModule Qty24pcsCabinet pixel3072dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:

 No.ParameterSpecification1Pixel Pitch20mm2Pixel Density2500pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness ≥6000cd/sqm6Drive Methodstatic constant current scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

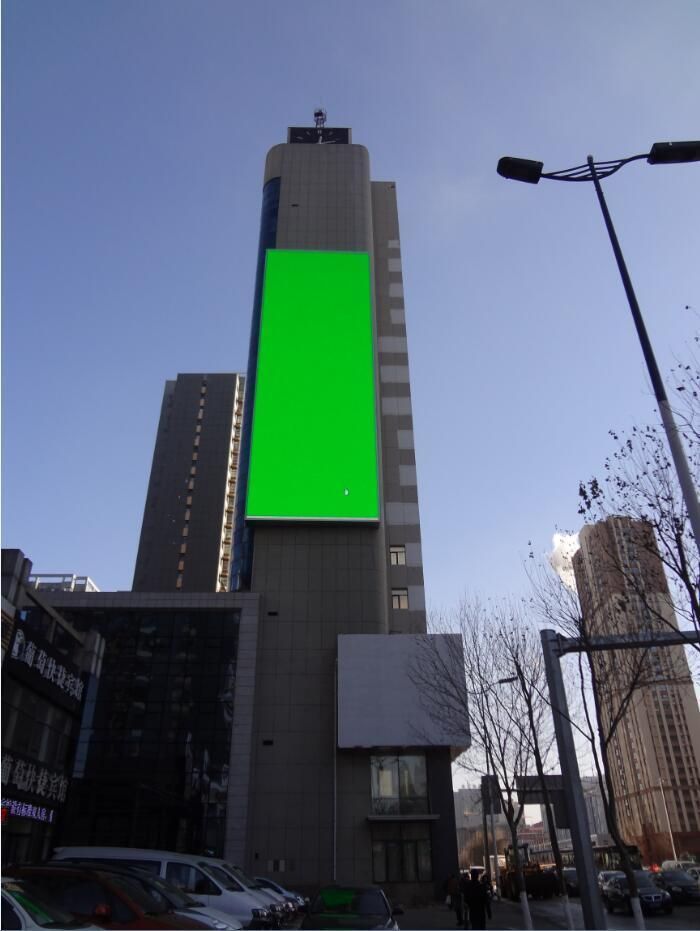

PRODUCT PHOTOS:


P20 Outdoor Advertising Giant LED Display/ LED Panel/ LED ScreenP20 Outdoor Advertising Giant LED Display/ LED Panel/ LED ScreenP20 Outdoor Advertising Giant LED Display/ LED Panel/ LED ScreenP20 Outdoor Advertising Giant LED Display/ LED Panel/ LED ScreenP20 Outdoor Advertising Giant LED Display/ LED Panel/ LED ScreenP20 Outdoor Advertising Giant LED Display/ LED Panel/ LED Screen
