P10 Outdoor Full Color Advertising Display Screen LED Video Wall

Hangzhou Awesome Imp&Exp. Co., Ltd. / 2022-06-27

P10 Outdoor Full Color Advertising Display Screen LED Video Wall

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:10mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:220W , m²

=== Base Info ===

  • Model NO.:P10
  • Pixel Density:10000 dot , m²
  • Scanning Mode:1,2 Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, UL, CCC, ETL
  • Cabinet:Alu,Steel
  • Weight:46kg(Steel),34kg(Aluminum)
  • IP Rate:IP65
  • Brightness:>6500nits
  • LED Lamps:Epistar
  • Driver IC:Mbi
  • PSU:MW
  • Voltage:AC110-240V
  • Refresh Rate:>1920Hz
  • Contrast Rate:3000:1
  • System:Nova
  • Transport Package:Plywood Cases
  • Specification:960x960mm 1280x1280mm
  • Trademark:LEDventure
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:2000sqm,Month

=== Description ===

Item

P10 Outdoor Full Color Advertising Display Screen LED Video Wall

Model Number

P10

Pixel Pitch

10mm

Pixel Density(pixels/M2)

10000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

320x320mm

Module Resolution(pixels)

32*32

Min.Viewing Distance(m)

10

Brightness(nits)

>6500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/2 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

960x960mm / 960x640mm / 960x1280mm / 1280x960mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization


Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
P10 Outdoor Full Color Advertising Display Screen LED Video Wall
P10 Outdoor Full Color Advertising Display Screen LED Video Wall

Part 6: Packing information by plywood cases, packing well and easy to load
P10 Outdoor Full Color Advertising Display Screen LED Video Wall
Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
P10 Outdoor Full Color Advertising Display Screen LED Video Wall


Part 8: About LEDventure.

P10 Outdoor Full Color Advertising Display Screen LED Video Wall

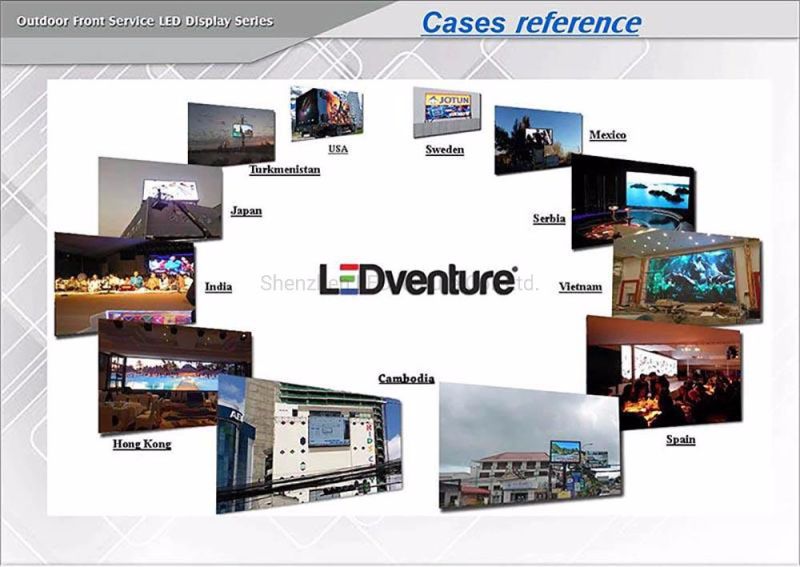

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
P10 Outdoor Full Color Advertising Display Screen LED Video Wall
P10 Outdoor Full Color Advertising Display Screen LED Video Wall
