• Cage：With Cage
• Rows Number：Single
• Load Direction：Radial Bearing
• Style：Without Outer Ring, With Outer Ring, Without Inner Ring, With Inner Ring
• Material：Bearing Steel
• Type：Open

=== Base Info ===

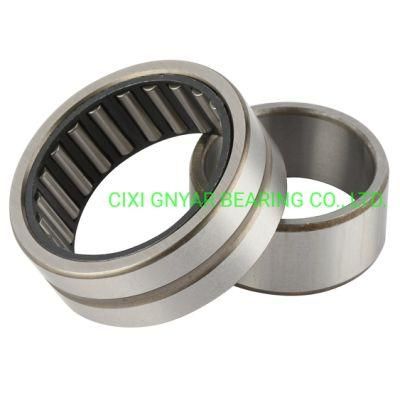

• Model NO.：NK1212
• with Oh or Not：Both Are Available
• Transport Package：Industrial Packing
• Specification：NK1212
• Trademark：GNYAR or OEM
• Origin：China
• HS Code：8482400000
• Production Capacity：1200000PCS a Month

=== Description ===
 Needle bearing series

Drawn cup needle

roller bearings

HK Series

BK Series

Inch Series

Sealed drawn cup

needle roller bearings

HK...RS Series

HK...2RS Series

BK...RS Series

Drawn cup full component

needle roller bearings

F Series

FH series

MF Series

MFH Series

FY Series

Drawn cup roller clutches/

clutch and bearing assemblies

HF Series

HFL Series

Radial needle roller and cage assemblies

K Series

K...ZW Series

Radial needle and cage assemblies

for pin connecting rod

KZK Series

KBK Series

Heavy duty needle roller bearings

NK Series

NKS Series

RNA49 Series

RNA69 Series

NKI Series

NKIS Series

NA49 NA69 NA48 NAO RNAO series

Sealed heavy duty needle rollers bearings

RNA49...RS/2RS   NA49...RS/2RS

Full components needle roller bearings

RNAV series

RNV Series

Self-aligning needle roller bearings

RPNA/PNA  Series

IR/LR Series

IXK Series

SeriesHK,BK,SCE,B,TLA.AXK,AS.LS.NTA.TRA,HF,HFL,RC,RCB,DC,CSK,NA,NK,NKIS,RNA,NAV,NKI,CF,KR,NUTR,NUKR,NAST,STO,RSTO.DBF,NE,KH,K,KT,KBK





Price is very competitive,Quality is stable. pls inquiry.



^FAQ


Q:  Where to find Other bearings ?



^{Discover the Homepage-----> Products}























Q: HOW TO CHOOSE A BEARING?

To properly choose a ball bearing, the important thing is to take into account several parameters:







1. Its application

Bearings are everywhere and therefore their applications are varied:

• - Agriculture (agricultural machinery, tools, ...)
• - Domestic (turntable, fishing rod, rollers, ...)
• - Industry (assembly lines, industrial machinery, ...)
• - Machines (tools, robots, ...)
• - Vehicles (cars, motorcycles, bicycles, trailers, ...)
• - Office (fans, ….)





The application for which the bearing will be used will therefore be decisive in the choice of the part.







2. The speed of rotation

The ball bearing supports high speeds and reduced loads, while the tapered roller bearing supports higher loads but lower speeds.



The speed limits of a bearing are determined by the operating temperature.

The speed limit can be defined as the highest rotational speed a ride can achieve depending on use, without compromising performance and duration.

The speed limit of bearings depends on several factors, such as: bearing type, load size, tolerance class, cage configuration, work set, lubricant, lubrication and cooling conditions, etc.









3. The supported load

2 types of loads are supported by bearings:

- Basic Dynamic Load

This is the maximum permissible load of the bearing capable of providing a nominal service life equal to 1 million revolutions.
It is necessary to calculate the service time necessary to show signs of fatigue on the materials, and on this basis to determine the theoretical duration.

- Static charge

This is the load that applies to the stationary bearing. It corresponds to a contact stress calculated between the rolling body in the most loaded contact and the raceway.
The loads are of simple type and radial, for the radial bearings, of simple type and axial, for
the abutments.







4. Life of bearings

Bearing life is defined as the number of revolutions or hours of operation, which the bearing is able to withstand before signs of fatigue appear on one of the rings, on the raceway or on the rolling elements.









5. Nominal fatigue life

The rated fatigue life of an identical bearing or batch of bearings operating under the same service conditions shall be equivalent to at least a 90 degree of reliability.

The average life of a bearing lot is much greater than its nominal duration.

The nominal fatigue life is expressed as L10 (Million revolutions) or L10h (service hour).







6. Bearing tolerance

Bearing tolerances have been standardized both nationally and internationally in accordance with ISO standards.

Bearings are generally manufactured in the P0 tolerance class.

Other parameters can be studied to choose the bearing best adapted to your needs:

• - The conditions of use and the constraints
• - The requirements of duration of the machine
• - The mimics of congestion of the bearing
• - Negative factors (vibration, shock, heat, dirt, acceptable sound level, etc.)

The choice of bearing is therefore mainly dictated by the dimension and load characteristics to which the bearing is subjected.

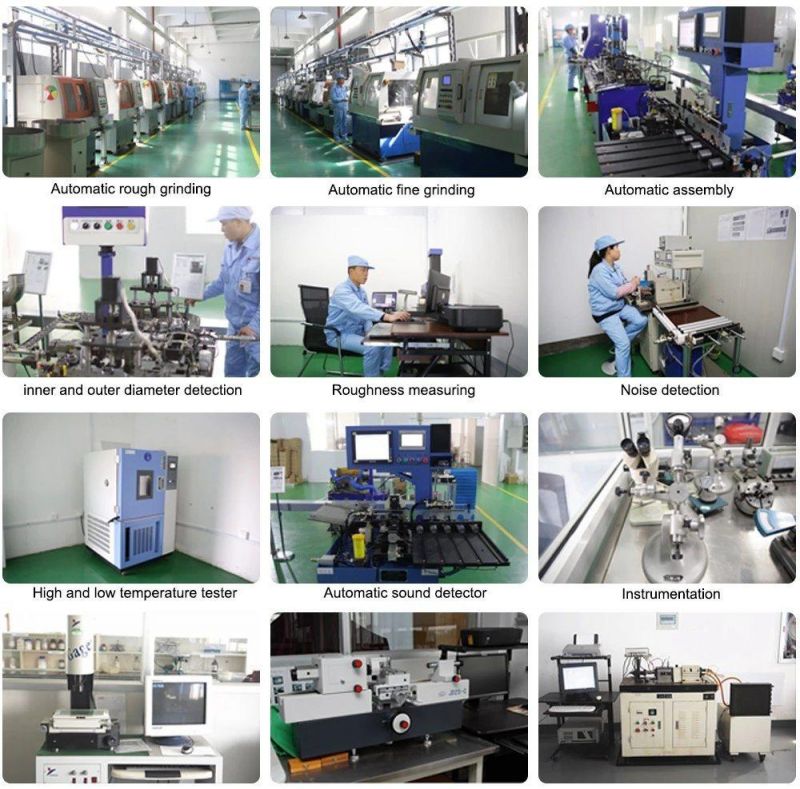

In order to supply even more stable quality to our vast customers, we established a factory in Cixi city, Zhejiang province, China, near Ningbo and Shanghai port, which has recognized by special ISO. The various bearings we produce there have been inspected and confirmed by SGS to be RoHS compliant.

Besides we has a genuine concern about our customers' needs and desires, we believe that by establishing a mutually beneficial relationship with our customers we can both continue to grow and prosper, we wish and hope to always grant you satisfaction.

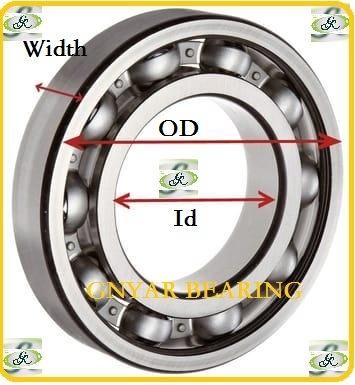

Q: HOW TO MEASURE A BEARING?





You have to change your ball bearing but do not know the model?

There is no written reference to it and you are lost?

You do not have a sliding foot?

The measurement of the bearing will allow you to find this bearing or an equivalent.

GNYARBearing helps you to take accurate measurement.







1st step: the inside diameter of the bearing (called the bore)

•
• A / Put your bearing on the grid as shown in the diagram, taking care to justify the inside edge.
•
• B / Mark the inner contour.
•
• C / For ease of reading, do not hesitate to draw lines to the axes and then take the measure.



And do not hesitate to contact our GNYARbearings team who will be happy to inform you by phone or email.

24hours CET : (86) 15381928152



Do you prefer that we remind you ?

Immediate and free call/email back







2nd step: the outside diameter of the bearing

•
• A / Put your bearing on the grid as shown in the diagram.
•
• B / Mark the outline of the outer ring. For more convenience, use a pencil with a fine point.
•
• C / For ease of reading, do not hesitate to draw lines to the axes and then take the measurement.









3rd step: the thickness of the bearing

•
• A / In the same way as for the outer diameter and the bore, place your bearing on the edge on the grid as shown in the diagram.
• B / Draw the outer contour.
•
• C / For ease of reading, do not hesitate to draw lines to the axes and then take the measurement.



Conclusion :

You now have 3 measuring elements that will allow you to identify your bearing: the inside diameter (or bore), the outside diameter, and the thickness.

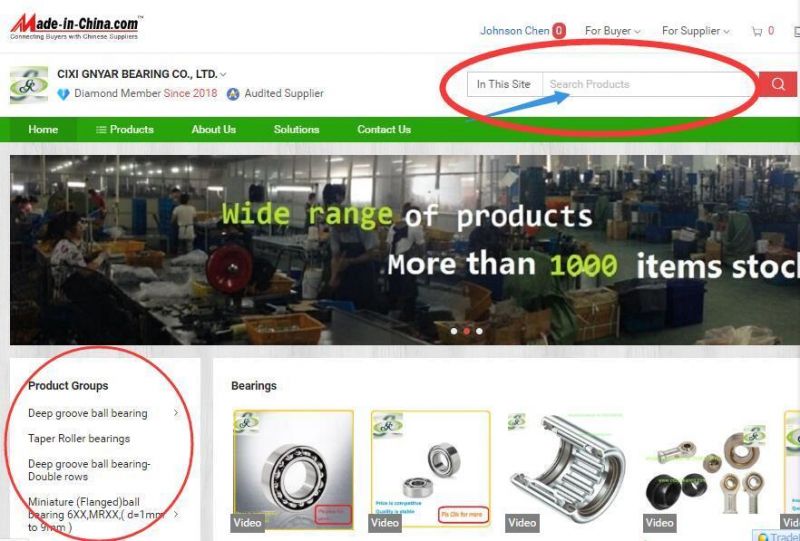

You can postpone these measurements in our bearing search tool on our website

https://cxzybearing.en.made-in-china.com



FAQ:

1. Q: If I want to mark my own brand on your bearing in small Q'ty, does it work?
A: Yes, we can engrave your own brand on the rings of bearing in small Q'ty.
If the future, when you have larger Q'ty, we can open the cover mold of your own brand name.

2. Q2. Does your company accept the small quantity of orders?
A: Once your bearing is standard size bearing, we accept the small Q'ty even in 1pc.

3. Q: will you send me free sample?
A: Yes, sample is free, but the freight cost has to be paid by you.

4. Q :If I don't see the type of bearing I need, what should I do?
A: we have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba. Just send the inquiry to us, and we'll send you the detail of your bearing.

5. Q: Why is your bearing price higher than others?
A: our bearing value is most cost-effective for you to use,the most suitable bearings is the best bearing for our every customer.



You search, we find !
