Solar Energy System for Lighting

• Light Source：LED Light
• Color Temperature(CCT)：Cool White
• Lamp Body Material：Aluminum Alloy
• Lamp Power：80W
• Power Supply：Solar
• Average Life：>8000h

=== Base Info ===

• Model NO.：SMLN-80W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Distance Between Poles：10-15m
• Pole Height：7m 5m 12m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：90
• Beam Angle：145*100°
• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 4 Nights
• Transport Package：Carton
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

=== Description ===

Basic Info.

Model NO. SMLN-80W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Lamp Luminous Efficiency(Lm/W) 180lm/W Distance Between Poles 10-15m Pole Height 7m 5m 12m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 90 Beam Angle 145*100° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 4 Nights Transport Package Carton Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

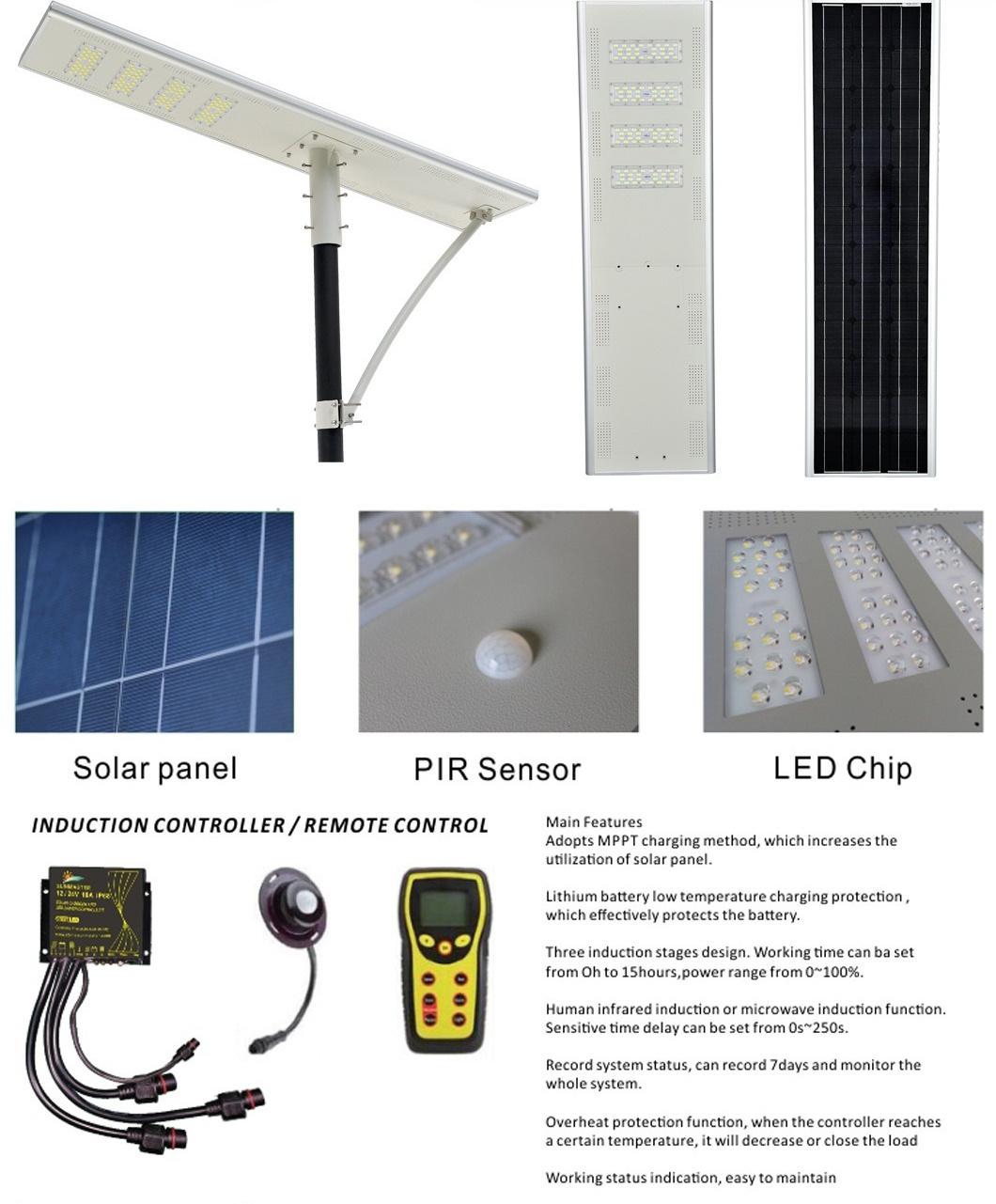

1.Integrated design solar panel,LED chips, battery,cotroller,motion sensor etc.
2.Without extra cable connection,save shipping and labour cost
3.Energy saving by PIR motion sensor and environment friendly.
4.High capacity and long life Lithium battery,more than 8 years working life and high-temperature resistance, make the whole light a longer life.

Model NO.	SMLN-80W	Battery Type:	LiFePO4 26Ah/25.6V
Power:	80W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	24.2kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
