High Brightness Outdoor Front Maintenance P10 P8 P6 Fix Ads LED Display Screen Shenzhen Gmled

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Market Display
• Average Power Consumption：180W , m²

=== Base Info ===

• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Shipment Terms：by Sea or by Air
• Brightness：6500-7500 CD,Sqm
• Cabinet Material：Waterproof Iron Cabinet
• Best View Distance：10~150m
• Control System：Novastar or Colorlight or Linsn
• Deliver Time：12-15 Days
• LED：Nationstar or Kinglight SMD3535
• Module Size：480mm*320mm
• LED Chip：Epistar LED
• Transport Package：Wooden Case
• Specification：960mm*960mm*80mm
• Trademark：GM
• Origin：Shenzhen
• HS Code：8528591090

=== Description ===
P10 Full Color LED Display Screen For Fixed InstallationS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD3535540-702mcd620-625nm160º/160º3Green LEDSMD35351200-1300mcd519-522nm160º/160º4Blue LEDSMD3535200-260mcd462-465nm160º/160ºModule Specification1Pixel Pitch10mm2Pixel Configuration1R1G1B3Module Resolution48 x 32 pixels4Module Pixles1536 pixels5Module Size480mm X 320mmCabinet Specification1Cabinet Size(W X H X D)960mm x 960mm x 75mm2Cabinet Resolution(dot)96 x 96 pixels3Module Quanity (pcs)6 pcs 4Cabinet Pixels9216 pixels 5Pixel Density10000 pixels/m26Cabinet MaterialsAluminum profile7Cabinet Weight24kg per cabinet8Packaging Wooden case9Wooden Case Size105*45*115CM ( one case for two cabinets )/ 102kgWhole Screen Specification1Screen Brightness≥6500cd/m22Driving Method1/2 scan3Best Viewing Distance10m - 150m4Max. Power Consumption600W/m25Average Power Consumption180W/m26Gray Level65536 levels(16 bit)7Display Color16.7M8Frame Frequency≥60Hz9Refresh Frequency≥1920Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleFor Outdoor use only17Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemLinsn, Novastar or as you required.22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m25CertificateCE, ROHS, FCC

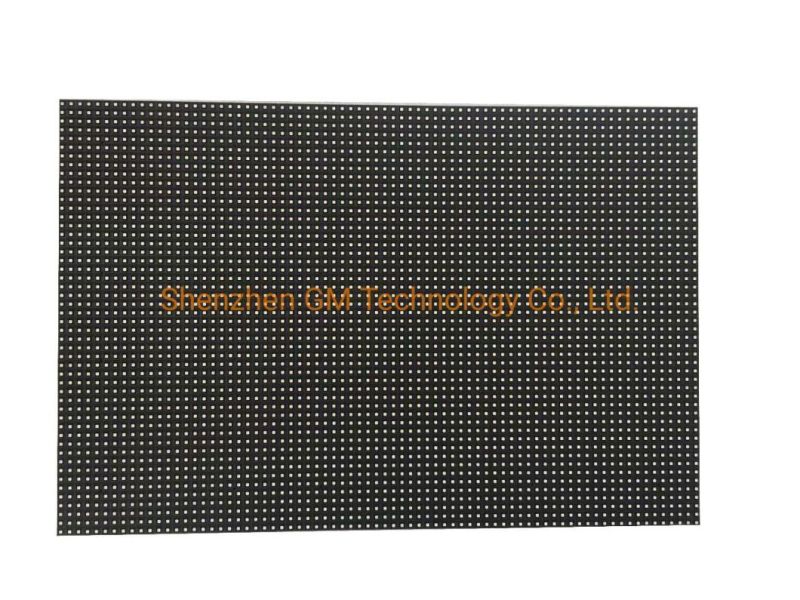

Outdoor P10 led screen detailed information



Product Features:
Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
1. High brightness SMD3535 LED is used for outdoor LED display, keeps the display content visible even if facing the strong sunshine directly.
2. Weatherproof design, completely outdoor use.
3. The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
4. Good quality raw material, accurate technique and careful inspection insures the high quality of LED display.
5. Cabinet size double fan design, speed up internal air circulation, auxiliary heat make the screen more stable and reliable.

More Project



Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10

Factory details and product certiification




FAQ :
 1. Q: Can I get some samples?
     A: Yes, Sure, Sample order is available for quality check and market test.

 2. Q: What's your payment term? How long is your delivery time ?
     A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-15working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.

3. Q: How long is the warranty period ?
    A:  Non-artificial damage,  My company provide about 3-5 years warranty .

4. Q: Do you have the products in stock?
    A: Yes ,of course, We all have storck of standard products.

5. Q: Freight Cost?
    A: Our price terms: EXW, CIF, Door to Door .
