Hollow Shaft Helical Hypoid Spiral Bevel Reducer

• Application：Motor, Agricultural Machinery, Ceramic
• Hardness：Hardened Tooth Surface
• Installation：Vertical or Horizotal Type
• Layout：Coaxial
• Gear Shape：Bevel Gear
• Step：Three-Step

=== Base Info ===

• Model NO.：XGK Series
• Type：Gear Reducer
• Color：Blue
• Mounting：Flange-Mounting
• Input Power：0.12-4.0kw
• Transport Package：Wooden Case, Polywood,Carton
• Specification：CE, SGS
• Trademark：Starshine Drive
• Origin：China
• HS Code：8483409000
• Production Capacity：6000PCS,Month

=== Description ===

Basic Info.

Model NO. XGK Series Type Gear Reducer Color Blue Mounting Flange-Mounting Input Power 0.12-4.0kw Transport Package Wooden Case/ Polywood/Carton Specification CE, SGS Trademark Starshine Drive Origin China HS Code 8483409000 Production Capacity 6000PCS/Month

Product Description

XGK Series HELICAL-HYPOID GEAR UNITS
 The hypoid gear has low friction, efficiency is as high as 92%,compared with the worm gearbox ,the efficiency improved about 10%-40%.The hypoid gear made of high quality alloy,treated by surface hardening,and produced by high-precision grinding machine, the output torque,gear strength and life are much better than worm gearbox.

Characteristics

1.Larger reduction ratio with hard surface hypoid bevel gear and helical gear drive
2.Big output torque, high transmission efficiency, energy-saving
3.Fine casting of aluminum alloy, light weight, rust-proof
4.Stable transmission, low noise, suitable for the terrible working condition
5.Good appearance and durability small volume
6.A variety of mounting positions, wide application, easy using
7.Mounting dimension is interchangeable with RV series worm gear reducer
8.Modularity on design:
Input: connected with IEC standard flange motor and servo motor with multiple specifications
Output:hollow shaft and solid shaft
9.Multi-stages gear drive. It is divided into two-stage drive(one hypoid bevel gear and one helical gear) and three-stage drive(one hypoid bevel gear and two helical gears). Compared with RV series worm gear and worm shaft structure, it has more refined ratio and wider application

ABOUT STARSHINE DRIVE

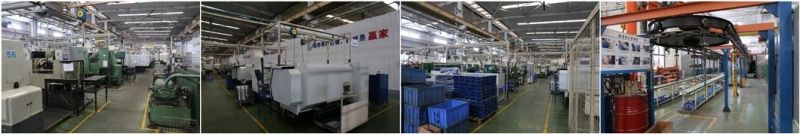

Guangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

Our products are widely used in ceramic industry, glass industry, woodworking machinery , high voltage switch, food & beverage, packaging & printing, Storage & logistics, hoisting & transportation facilities…etc , and Starshine technically provide the professional product & service for the medium and high-end customers, and our gearboxes are best-selling in domestic, and even in abroad , such as in Europe, North America, South America, Middle East, South Asia, Southeast Asia, Africa…etc.

 In the future , Starshine will hold the creed of "serving customer, diligence & simplicity, self-criticism, innovation, honesty, teamwork", and the concept of "quality creates value" to focus on the customers' requirements and provide them the competitive transmission solution and create value for them constantly, and make a high-end equipment manufacturing industry and create a preferred brand of replacing import products and upgrading continuously for the end users.



TEAM


QUALITY CONTROL
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value


3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.



PACKING


DELIVERY
