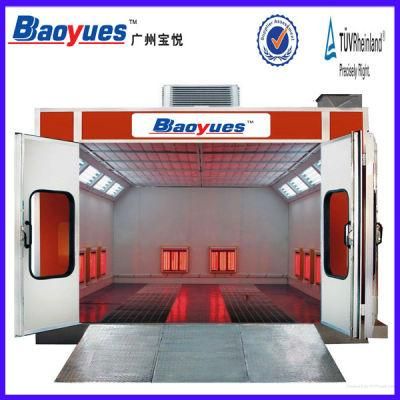

CE Standard High Quality Infrared Car Care Equipment Car Spray Booth by-2
Luminous Optical Technology Co., Ltd. / 2022-06-23
- Certification：CCC, CE, CSA, GS, UL
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Brand Name：Baoyues
- Function：Car(or Furniture)Painting and Baking
=== Base Info ===
- Model NO.：BY-2
- Certificate：CE,CCS,SGS,TUV
- Service：Professional Team for Installation Abroad
- Warranty：1 Year
- Transport Package：1 Pieces,20gp
- Specification：CE, CCS, TUV, SGS
- Trademark：Baoyues
- Origin：Guangzhou, China
- Production Capacity：80 Piecescs,Month
=== Description ===
| Item | Detail specification |
| Inside dimension | 6900*3900*2650mm(L*W*H) |
| Outside dimension | 7000*5050*3400mm(L*W*H) |
| Front door | Folding door,3 folds,3000*2600mm(W*H),without frame cover,color:blue |
| Emergency door | 1 unit,650*1800mm(W*H),color:blue |
| Basement |
Galvanized steel assemble, 300mm high, quadrate steel support,2rows of grills made by flat bar and twisted steel,painted,3 rows of indented plates,painted.2pcs ramps,520×2000mm(W×L) |
| Wallboard | Thickness:50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. |
| Light | Ceiling Lights: 8Units×4Pcs=326Pcs×36W,with electronic ballast,without side lights,Illuminate: ≥700LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back upper,quadrate steel frame,white coated steel covered, filled with heat preservation material inside. |
|
Intake and exhaust system |
Inlet:2*3KWdouble-intake centrifugal fans, model:YDW4.5MI,air capacity for each fan:10500m3/h. outlet:optional |
|
Heating system |
With 10 units short wave infrared lamp heating ,3pcs/unit,1KW/pcs,total power:30KW,max temperature:80 degree |
| Purification system | Pre-filter, ceiling filter, exhaust fibreglass filter |
|
Roof |
Galvanized steel |
| Control system | Spray,baking,time setting,lighting switch,thermostat,power supply switch,emergency stop |
| Total power | 40kw |
