Industrial Spray Booth/Large Painting Room

Shenzhen E-Fuel Technology Ltd / 2022-06-23

Industrial Spray Booth/Large Painting Room

  • Warranty:24 Months
  • Type:Coating Production Line

=== Base Info ===

  • Model NO.:18m
  • Certification:CE
  • Substrate:Sandwich Panel
  • Brand:Captain
  • Coating:Painting
  • Airflow Direction:Cross-flow Type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Wet-type
  • Condition:New
  • Outside Size(mm):18156X7516X5800
  • Inside  Size(mm):18000X6000X5000
  • Heating Method:Diesel Burner, Gas Burner, Infrared Lamps
  • Fan:Centrifugal Fan, Belt Fan, Turbo Fan
  • Lights:Anti-Explosure Lights
  • Panel:EPS, Rock Wool, Fiber Glass
  • Basement:No, Extract From Sides
  • Wall Panel:75mm EPS
  • Transport Package:Export Container ,Pallet ,Disassembly with Carton
  • Specification:CE, SGS, ISO
  • Trademark:OEM,Captain
  • Origin:Shandong, China.
  • HS Code:8424899990
  • Production Capacity:196sets,Month
  • Package size per unit product:18156.00cm * 7516.00cm * 5800.00cm
  • Gross weight per unit product:5000.000kg

=== Description ===

Outside Size:(mm)
 18156x7516x5800
 Front Door:(mm)
 4100(w)x4500(h)
  Inside  Size:(mm)
 18000x6000x5000
 Total Power:(kw)
 65
  Cabin System
 Wallboard
 EPS (epispastics polystyrene)Colorful Steel Skin Boards,75mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation with the strong support of powder coated pillars inbetween.

Basement
 Two rows of pits with galvanized duty-bearing grids for air sucking
  Air Circulation System
 Inhaling
Ventilator
 Type&Model:
YDW-5.6M
 Exhaust Ventilator
 Type&Model:
4-82-6.3E
  Blower Capacity:   21000m3/h
 Blower Capacity: 35000m3/h
  Pressure:             800Pa
 Pressure:  800Pa
  Rolling Speed:        900rpm
 Rolling Speed:   900rpm
  Power:               7.5kw
 Power: 15kw
  Quantity:              6 sets
 Quantity:  3 sets

Air Volume: 12000m3/h; Air Speed: 0.31m/s
  Air Purification System
 Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Inflammable Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure  Gauge, TSP≤1.4mg/m3
    Heating System
 Burner
 Italy Riello Brand, RG5S Diesel Burner x 3 Sets , 260000Kcal/h, 20N Damp Motor
  Heat Energy Converter
 SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
    Max Temp:80 . C , Heating Time: 15-20min(20-60°C), Fuel Consumption: 10-12kg/vehicle
   Light System
 Ceiling Light: 60 pcs 36w Philips Lamp; Side Light: 36 pcs 36w Philips Lamp, 900 Lux,
  Electric Controlling System
 Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer
   Environmental  System
 Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
    Optional3-Dimention trolley as an optional is available for easily painting work.
1.An ideal type for big painting capacity;
2.Professional design for air flow;
3.Many big project cases experience support.

We are a company specialized in manufacturing different spray booths, painting lines etc since 1999, besides, we have
the largest production base of spray booth in China, and big projects production capability is our manifestation, and we also export a lot of spray booth every year, and your requirement is our mission.
We devote ourselves to make a neat, enjoyable and professional factory to produce out

high level and world famous spray booths for our customers. What's more, we have about 90,000 m2 production area,

which can fully satisfy your needs of production capability. Welcome friends from all over the world visit our factory to

inspect our production ability, technical power, product quality,management etc.

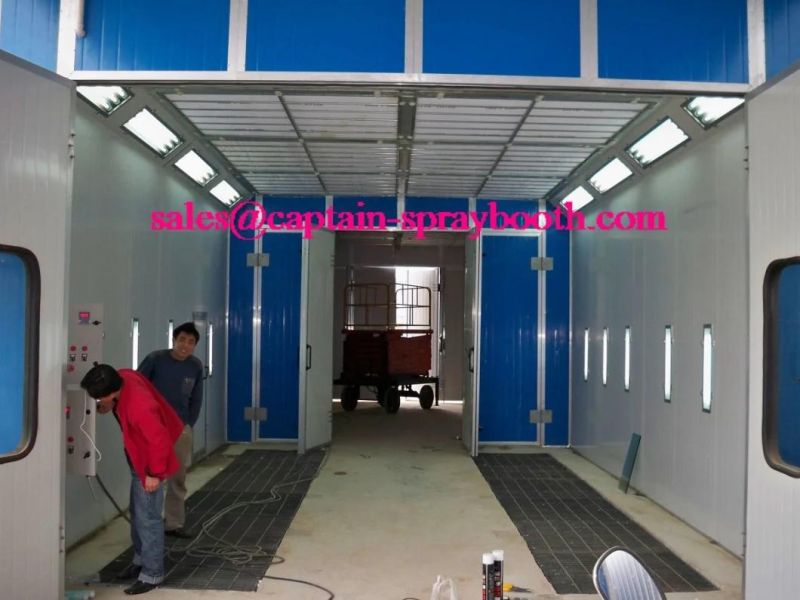

Pictures to Show
Industrial Spray Booth/Large Painting Room

Industrial Spray Booth/Large Painting RoomIndustrial Spray Booth/Large Painting Room

Industrial Spray Booth/Large Painting Room

Industrial Spray Booth/Large Painting Room

Industrial Spray Booth/Large Painting RoomCaptain Advantages

*The same price higher quality, the same quality lower price! ! !

*2 years quality warranty! ! !

*Fast and stable supply capability! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
