P7.62 Full Color Indoor Advertising LED Display/LED Sign

• Tube Chip Color：Full Color
• Display Function：Video Display
• Pixel Pitch：7.62mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：17222dots,Sqm
• Scanning Mode：1,16 Scan

=== Base Info ===

• Model NO.：7.62mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：244X244mm
• Module Resolution：32X32dots
• Cabinet Size：976X976mm
• Cabinet Resolution：128X128dots
• Screen Brightness：1300nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Plywood Case
• Specification：976x976mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===
NO.ItemParameters1ModelV072Pixel Pitch(mm)7.623LED Configuration1R1G1B4LED TypeSMD35285Screen Resolution17222dots/sqm6Module size(mm)244x2447Module resolution(dots)32x328Scan method1/16 constant current drive9Cabinet size(mm)976x97610Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥130013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)17017Max. power consumption(W/sqm)42018IP gradeIP3319controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

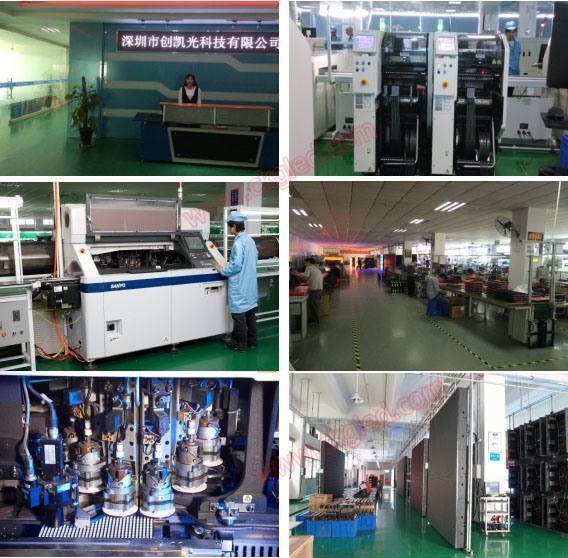

WORKSHOP:



PROCESS:



Product photos:










Certificates:



Package:
