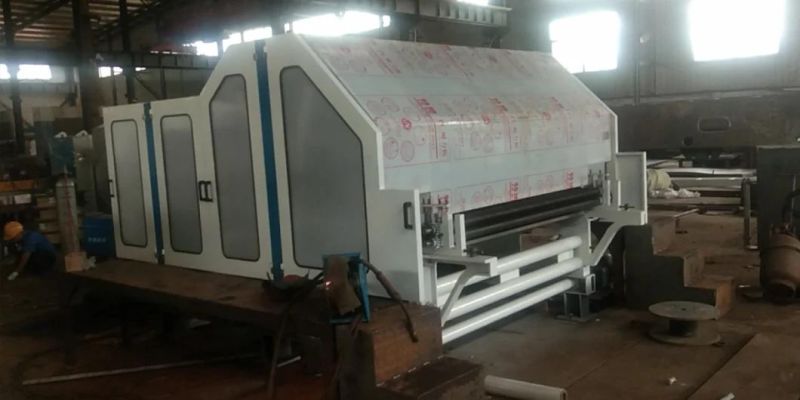

Highly Stable Fiber Nonwoen Double Cylinder Double Doff Carding Machine for Carpet, Matters Nonwoven Machine

• Type：Surgical Supplies Materials
• Material：Non-woven Fabric
• Ethylene Oxide Sterilization：Without Ethylene Oxide Sterilization
• Quality Guarantee Period：Two Years
• Group：Adult
• Logo Printing：Without Logo Printing

=== Base Info ===

• Trademark：RONGDA
• Production Capacity：300pieces,Min

=== Description ===

NO

ITEM

DESCRIPTION

1

Model

GMCD2-1500×1230

2

Raw materials work on

Processing of raw materials from feeding machine, the output fiber layer

3

Working width

1500 mm

4

Production capacity

180 kg/h(Reference 6 d first-grade product chemical fiber)

5

Fiber raw materials requirements

3~15D×38~65mm

6

The speed of the output fiber layer

≤40m/min

7

Total power

18.7KW

8

Main body

High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays

9

Feeding roller

With a pressure roller feeding uniformity.Feeding roller: 4sets , 65mm



10

Metal detectors

Equipped with metal detectors, feedback and control power and warning

11

Diameter of Cylinder &doffer &mixed and disorderly roller

1230 mm, double doffer diameter492 mm, mixed and disorderly roller diameter: 295 mm

12

No of groups

There are 5 carding working groups, so can get a very good carding effect

13

Dust collection points

There are 4 dust places

14

Working shield

Working shield with transparent organic glass, a mechanical rotation can be observed during it running

15

Power

11KW ,for doffer: both 2.2KW, Fan 4KW all by inverter



Related machines



related product




Certification:

Warranty
Warranty: 12 month and 12 months free spare parts
Out of warranty time: we still supply board and favorable technical support and after service of life.
Installation
Before shipment, machine will be tested by our technicians to make sure the can work well.
Our technicians will be sent to user's factory to install the machine and train works if need. ( the buyer just need pay for the technician's tickets, meals accommodation and salary)
