Professional Guangli High Quality Vehicle Equipment Powder/Painting Coating Line

• Type：Spray Booth
• Certification：CCC, CE, CSA, GS, UL
• Substrate：Steel
• Brand：Guangli
• Coating：Powder Coating
• Airflow Direction：Cross-flow Type

=== Base Info ===

• Model NO.：GL-L3
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Painting Line Length(M)：36.4
• External Size Internal Size(M)：8.3X8.4X5.5
• Painting Booth Internal Size(M)：6.9X3.9X2.8
• Baking Booth Internal Size(M)：6.9X3.9X2.8
• Painting Booth Air Flow(M3/H)：25000
• Baking Booth Air Flow(M3/H)：18000
• Total Power (Kw)：23
• Standard Movable Jacks：4 Sets
• Rail(M)：5X36.4
• Voltage(V)：380V,50Hz,3pH
• Transport Package：Iron Frame Packing and Carton Packing.
• Specification：Standard
• Trademark：GL
• Origin：Guangzhou, China
• Production Capacity：800 Units,Month

=== Description ===

Basic Info.

Model NO. GL-L3 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Painting Line Length(M) 36.4 External Size Internal Size(M) 8.3X8.4X5.5 Painting Booth Internal Size(M) 6.9X3.9X2.8 Baking Booth Internal Size(M) 6.9X3.9X2.8 Painting Booth Air Flow(M3/H) 25000 Baking Booth Air Flow(M3/H) 18000 Total Power (Kw) 23 Standard Movable Jacks 4 Sets Rail(M) 5X36.4 Voltage(V) 380V/50Hz/3pH Transport Package Iron Frame Packing and Carton Packing. Specification Standard Trademark GL Origin Guangzhou, China Production Capacity 800 Units/Month

Product Description

Professional Guangli High Quality Vehicle Equipment Powder/Painting Coating Line

Auto Works Painting Line Feature
Multi-bays Line: Prep station + Paint booth + Baking booth + Polishing area

Working process
Park the vehicle on the four movable jacks in the waiting area.
Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
The transition in different areas is realized by moving vehicles along the jacks.
Structure:
Painting and barking are working separately in this line, vehicle can through from the moving door in side wall. With close curtain at two side of optional prep station.
This line consists of painting room, baking room, rails and movable jacks. Prep station and infrared light are for option.
Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
The transition in different area is realized by moving vehicles along the jacks.
Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
If specified with vertical suspending door, the height of workshop should be at least 5800mm.
A small spray booth can be installed outside the line to do the painting and baking for parts.

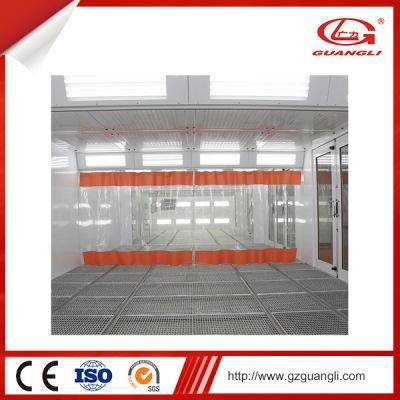

Auto Works Painting Line Show

Technical Specifications	GL-L3
Painting line Length(m)	36.4
External Size Internal Size	8.3x8.4x5.5
Painting booth Internal Size	6.9x3.9x2.8
Baking Booth Internal Size	6.9x3.9x2.8
Painting booth Air Flow(m³/h)	25000
Baking Booth Air Flow(m³/h)	18000
Total Power (kw)	23
Standard Movable Jacks	4 sets
Rail(m)	5x36.4

Guangli Powder Coating Line Details Show
Remark:
1.Wet sand, vertical suspend door without exhaust system.
2.The model about are suitable for saloon car, concrete basement made by user.
3.Nonstandard design plan can be made as requirement.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.

Company Information
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters, which covers 58,000M² of grounding area and 36,000M² of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
Certificate
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.
Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China
Exhibitions
For more details,please feel free to contact me.
Contact: Sunnie Di
Tel:+86-2086569629/86378972
Mobile/:+8613925061383
