AA4c High Precise 3D Wheel Aligner AA-Dt101A

Dongguan Jiacheng Packing Material Co., Ltd / 2022-06-23

AA4c High Precise 3D Wheel Aligner AA-Dt101A

  • Type:3D Wheel Alignment
  • Certification:CE
  • Communication Mode:ZigBee Wireless Communication
  • Structure:Electronic
  • Standard:Standard
  • Condition:New

=== Base Info ===

  • Model NO.:AA-DT101A
  • Lifting Capacity:1t
  • Transport Package:Carton
  • Specification:CE
  • Trademark:AA4C
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:100units,Month

=== Description ===

Basic Info.

Model NO. AA-DT101A Lifting Capacity 1t Transport Package Carton Specification CE Trademark AA4C Origin China HS Code 9031809090 Production Capacity 100units/Month

Product Description

High Precise 3D Wheel Aligner AA-DT101A

5.3D Wheel Aligning
3D Wheel Alignment System
Exquisite Movable Small Cabinet
Intelligent Auto Lifting Pole
HP Computer
32'' LCD monitor
Unique Target Disks
Deluxe Holding Tire Clamps
High Definition Camera
Steering Wheel Lock
Brake Lock
Wedge-shaped Pads
Turntables
Transition Blocks of Turntables
Printer
Speaker


Product Description: double cameras structure, fixed camera beam, steelcolumn stand, independent cabinet.

Function: four wheel alignment, two wheel alignment, signle wheelmeasurement, Camber, Caster, KPI, Toe, Set-back, Thrust Angle, adjuststeering wheel, Toe lock adjustment, Toe curve adjustment,max.steering wheelmeasurement, Axis offset measurement,wheel offset measurement,liftmeasurement.

1 X camera beam assembly
1 X steel stand column1 x one body simple cabinet
4 X 3D clamps 4X targets
2 X turntables2 X rubber block
1 X steering locker1 X pedal locker
1X PC,22'' monitor and thermalprinter
1 Classical Structure Design


Brand new camera beam design makes the entire structure of the alignment system rational and grand. Versatile structures are optional.

2 Golden Eyes

Superior lens can adapt to strict outside environment and filtrate the stray light with wider angle to capture and read the target disks appropriately.

3 High-resolution Camera

With two imported high-resolution cameras and the fast and stable central computer system, transmission of the picture can reach 15 frames per second to make the measuring result be displayed continually.

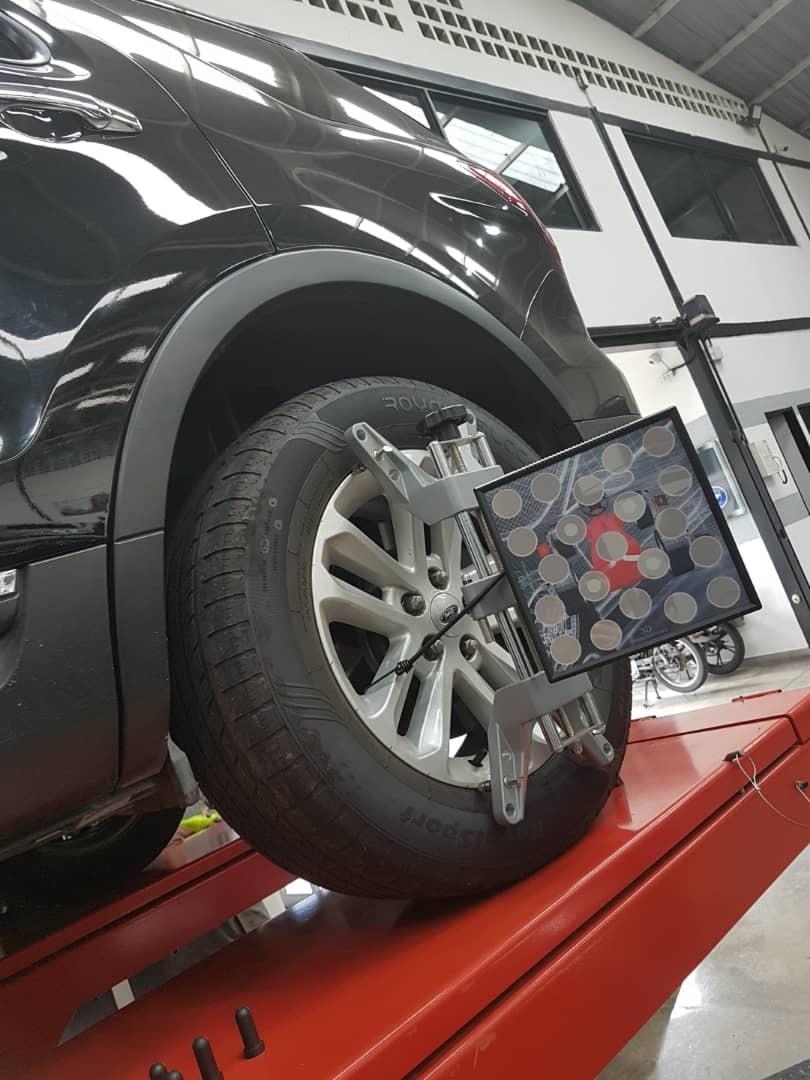

4 Target Disk

Target disks are made of special materials which will not be broken even falling from 10 meters high. The reflection materials with superior engineering film can last longer working life.

Double-displaying System & Ten Outstanding Functions

1 Intelligent LED Guide

With special design, flashing LED lamps offer dynamic feedback during measuring and monitor the measurement processes effectively.

2 3D-tech Compensation:

Only one moving forward and backward can finish comprehensive compensation for errors caused by deformed rims or installation.


3 Four Wheels Reference Display:

Toe, camber and their differences can be displayed on the screen simultaneously.

4 Front/Rear Wheel Reference Display:

The front and rear wheel reference can be displayed simultaneous adapting to different operators' requirements.

5 Voice-over System:

Advanced automotive voice-over will guide every step of wheel aligning operation.

6 Body Dimension:

Unique 3D alignment body measurement system can measure chassis parameters, such as wheelbase, track width and axle offset.

7 Caster/ S. A. I. Measurement:

Simultaneous measurement of caster, S. A. I. And inclusive angle can diagnose the acceleration off-tracking, the weight of steering wheel boosting and other factors.

8 Four Wheels Toe/Camber Display:

The data of toe and camber for four wheels can be displayed simultaneous on the screen to provide effective reference.

9 Drive-on Camera:

Special mirror function of the PC camera can guide the best parking position on the platform effectively.

10 Controllable Lifting Pole:

In the process of operating, the pole can be adjusted up to 2.1 meters according to the height of vehicle at any time with a remote.
