P5 Outdoor Advertising SMD Front Access LED Video Display

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：8mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：800

=== Base Info ===

• Model NO.：GLG-TDL-050F
• Pixel Density：15625
• Scanning Mode：Static Scan
• Display Type：LED Dot Matrix Display
• Application：Advertising,Message
• Certification：CE, RoHS, CCC
• Brightness (CD/M2)：6000-6500
• Module Power (W)：18.5
• Modules Size W*H(mm)：320*160
• Driving Mode：Constant Current
• LEDs：3535
• Transport Package：Wooden Carton
• Specification：32*16
• Trademark：GLG-LED
• Origin：China
• HS Code：8531200000
• Production Capacity：50000PCS,Month

=== Description ===
Outdoor SMD Full Color LED DisplayP4SMD19216250064*32256*1281R1G1B1/8Sconstant current5500~60001000P4.75SMD19214432164*32304*1521R1G1B1/8Sconstant current5500~6000900P5SMD27274000064*32320*1601R1G1B1/8Sconstant current5000~55001000P6SMD27272777732*32192*1921R1G1B1/8Sconstant current5000~55001000P6SMD27272777732*32192*1921R1G1B1/4Sconstant current6000~65001000P8SMD35351562532*16256*1281R1G1B1/4Sconstant current6000~6500800P10SMD35351000032*16320*1601R1G1B1/4Sconstant current4500~5000600P10SMD35351000032*16320*1601R1G1B1/2Sconstant current6500~7000900

Product Features

√ High-quality constant current drive LED display special chip design, with a small package, high brightness, wide viewing angle, anti-static characteristics
√ The new mask design, so that the light emitted from the LED to achieve almost zero reflection, ensure the display screen body.
√ Box design module unit using high temperature coating technology has greatly enhanced rust-proof function.
√ Module mounting surface flatness control of plus or minus 0.2mm, good flatness of the entire screen
√ Intelligent exposure control system according to changes in outdoor light automatically adjust the display brightness, energy saving, lower costs.
√ PCB using wave soldering process, with green oil and oxygen barrier, preventing the line of wet oxidation and improve the life
√ Front of the module using high-quality imported glue Glue carried back waterproof apron, improve water resistance of the display.
√ Having a high performance level above IP65 waterproof and dust
√ All day long display, adapt to harsh outdoor environments.
√ Factory strict quality control, subject to aging, vibration and a series of rigorous tests to ensure that the factory zero failure rate.
√ Advanced manufacturing processes and packaging technology to ensure the quality and longevity of the display.
√ Raw materials include LED chips, mask, glue and iron box has the ability to high temperature, high humidity, and UV resistant, waterproof, anti-corrosion and rust.

Waterproof

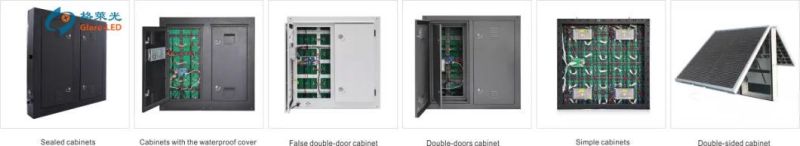

Use cabinet design



Cabinet has a variety of colors

Display Structure

Quality Control Process
Package Method
