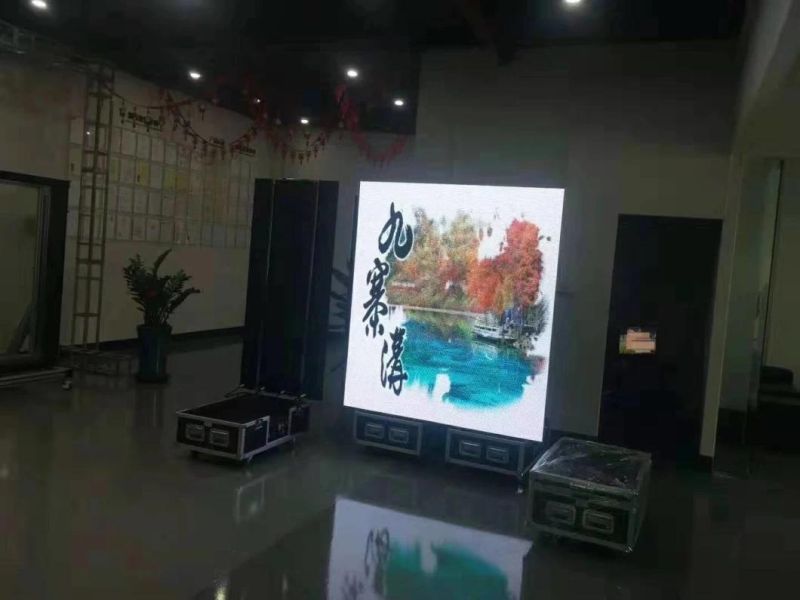

Full Color, Easy and Fast Installation Foldable LED Display for Stage Show and Entertainment

• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：6mm

=== Base Info ===

• Model NO.：BF
• Pixel Configuration：SMD 3528 , 3535, 1R, 1G, 1B
• Pixel Density：27,777 dots , m²
• Scanning Mode：1,8 Scan
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Foldable Degree：360 Degree
• Max Length of Control Box：8 M
• Servicing：Front
• United Size：250 X 250
• Installations：Hanging Stacking Attaching
• Transport Package：Plywooden Case or Flight Case
• Specification：8.5 - 15 mm
• Trademark：Bako Vision
• Origin：China
• HS Code：8528591090
• Production Capacity：6000m2,Month
• Package size per unit product：150.00cm * 40.00cm * 50.00cm
• Gross weight per unit product：40.000kg

=== Description ===
 BF-6BF-7Physical Pitch6 mm7.8 mmPixel ConfigurationSMD 3528SMD 3528/3535Pixel Density27,556 pixels/m²16,384 pixels/m²Unit Size (W*H)(mm)192*192250*250Physical Resolution of Unit (H*V)32*3232*32Weight (kg/m²)<10<9Processing16 bit16 bitColours281 trillion281 trillionContrast Ratio2,000:1/4,000:12,000:1/4,000:1Average Power Consumption150/310 W/m²90/200 W/m²Max Power Consumption375/775 W/m²225/500 W/m²Brightness2,000/4,000 nits1,500/6,000 nitsRefresh Rate>1,920 Hz>1,920 HzFoldable Angle360°360°Max Length of Control Box6 m8 mExpected Lifetime100,000 Hrs100,000 HrsServicingFrontFrontIP Rating (Front/Rear)IP 43/54IP 43/54

LED Foldable Display Features:

1.Ultra Thin & Light Weight

2.Conventient Installation & Combination

3.Extraordinary Flexibility

4.Maintenance way: Front service.

5.Application: Super market, Airport, hotel lobby, etc.

About us:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!


FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
