K Series Helical Bevel Gear Motor Reducer Gearbox

• Application：Machinery, Agricultural Machinery
• Function：Speed Changing, Speed Reduction
• Layout：Coaxial
• Hardness：Hardened Tooth Surface
• Installation：Horizontal Type
• Step：Single-Step

=== Base Info ===

• Model NO.：K,KF
• Type：Circular Gear
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Warranty：One Year
• Delivery：30days
• Output：Solid Shaft
• Mounting：Foot
• Transport Package：PLYWOOD CASE
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：CHINA
• HS Code：8483409000
• Production Capacity：5000PCS,MONTH

=== Description ===

Basic Info.

Model NO. K/KF Type Circular Gear Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Warranty One Year Delivery 30days Output Solid Shaft Mounting Foot Transport Package PLYWOOD CASE Specification ISO9001: 2008 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 5000PCS/MONTH

Product Description

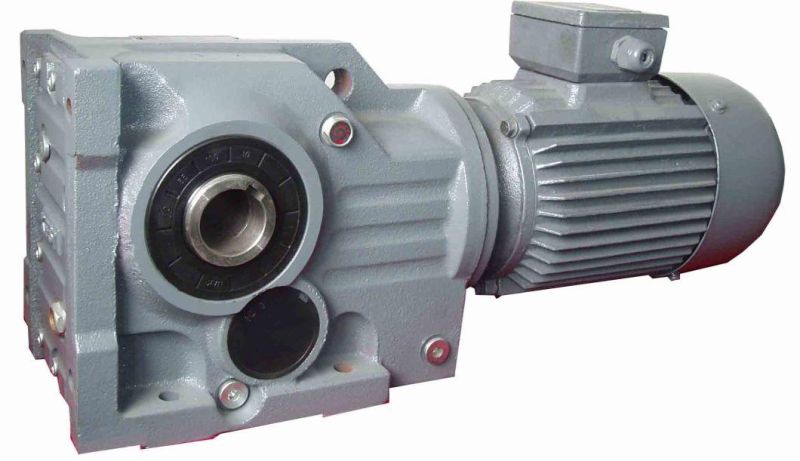

K Series Helical Bevel Gear Motor Reducer Gearbox

Technical data:
1. Ratio range: 8.1-191
2. Input power: 0.12-270 KW
3. Permit torque rang: ≤ 50000 N. M
4. Output speed: 0.3~205 r/min
5. Structure: Foot-mounted, flange-mounted, shaft-mounted

Characteristic:
1. Adopt optimized design, module combination, right angle output, space reduction
2. High strength and longevity gears
3. Can be combined with various motors, wider ratio range
4. Big output torque, smoothly startup, high efficiency
