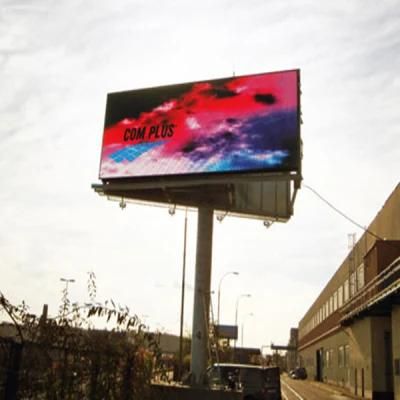

P10 Outdoor LED Advertising Billboard Display Screen

• Tube Chip Color：Full Color
• IP Rating：IP67
• Pixel Pitch：16mm
• Pixel Configuration：2R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：FOX-Outdoor-P10
• Pixel Density：3906 DOT,Sqm
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL
• Resolution of Module：16*16
• Colors：16777216
• Best Viewing Distance：16-300m
• Horizonta L Viewing Angle：120°
• Brightness：>=8000CD,Sqm
• Gray Scale：16bits Per Color
• Color Temperature：10000CD,Sqm
• Frame Frequency：60Hz
• Refresh Frequency：>=300Hz
• Life Span：100, 000h
• Transport Package：Anti-Shaking Wooden Case or Air Flight Case
• Specification：CE, RoHS, UL, SGS
• Trademark：Foxgolden
• Origin：China
• HS Code：853120
• Production Capacity：3000PCS,Month

=== Description ===
Technical parameterUnit moduleModule size256*128mmPixel pitch16mmPixel density3904dots/m2Pixel configuration2R1G1BLed specificationΦ 5ellipsePixel resolutionW: 16dots*H: 8dotsCabinetDimension1024mm*768mm*170mmQuantities of module24pcsPower supply5pcsThermal dischargeFan*2pcsTotal weight55kgBest viewing angle12-300mTemperatureStorage: -35~+85Working: -35~+85Thickness17cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption250-480WMax. Power consumption≤ 560W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving deviceStatic scanningDrive typeConstant Current driver ICRefresh frequency≥ 400HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 8000cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode1024*768Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player
