Flexible 2835 SMD LED Light Bar 5 mm PCB with Soft Weight

• Certification：FCC, CCC, UL, RoHS, CE
• Power：12W,M
• Emitting Color：White
• Voltage：12V
• IP Rating：IP20
• LED Qty/m：120LEDs,m 2835

=== Base Info ===

• Model NO.：LM2835-WN120-5MM-001
• LED Supplier：Honglitronic,Osram,Samsung
• LED BINs：3-Step,5-Step, same BIN for each order
• LEDs material：packaged by 99.99% pure gold wire.
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：5mm
• PCB material：Double-sided coated pure copper
• Adhesive Tape：9495 3000LSE 3M tape
• PCB thickness：2Oz(front 35um,back 35um)
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：UL, CE, RoHS, FCC, ERP
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

=== Description ===

Basic Info.

Model NO. LM2835-WN120-5MM-001 LED Supplier Honglitronic/Osram/Samsung LED BINs 3-Step/5-Step, same BIN for each order LEDs material packaged by 99.99% pure gold wire. LED Chip Brand Sanan(Epistar optional) PCB Width 5mm PCB material Double-sided coated pure copper Adhesive Tape 9495 3000LSE 3M tape PCB thickness 2Oz(front 35um,back 35um) IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification UL, CE, RoHS, FCC, ERP Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

Product DetailsFlexible 2835 SMD LED Light Bar 5 MM PCB with Soft Weight






Model NO	LM2835-WN120-12V-5MM
Product Name	SMD2835 120LEDS/M 5MM LED strips
PCB Width	5MM
LED Qty/m	120leds/m 2835
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	12W/M, 60W/5M
Luminous(lm/m)	3240lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	5*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Our Services
A. 16.4ft(5Meter) per reel as standard length, different length can be customize.

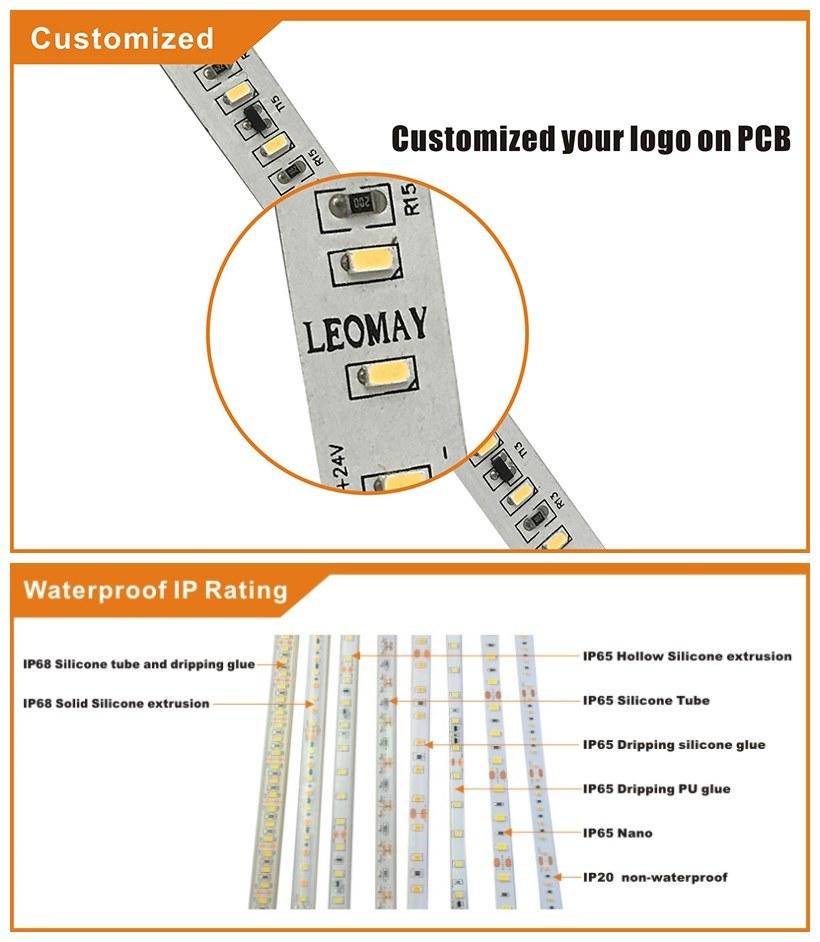

B. From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.
C. Supply the full led strip products (with strip accessory )to make you more easy with LED Business.
D. Easy and flexible installation, can be used directly.
E. We can support special customized package for you.
F. We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Mi.light controller,  connectors, etc.

ADVANTAGES

*No UV/IR radiation and long life-span(>5000 hours).

"Superior color rendering.
We have high CRI LED strip products of CRI>80,90,96

1. The color and width of PCB board could be choosed.
2. Pcb thickness can be 2oz, 3oz.
3. The voltage can be 5-24V or your requirement.
4. The LED quantity can be choosed, from 30leds/m to 480leds/m.
5. CCT can be adjusted, wider CCT range.

Certifications




Company Information

About Leomay

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL,CE,FCC,RoHS and SGS, which is engaged in researching, manufacturing and selling new LED lighting products. Now Leomay products mainly cover LED Strip Light, LED Rope Light, Aluminum profile, LED Linear Light, LED Panel Light, LED Tube, etc.

Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.






FAQ:

Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: leomay-ledstrip.en.made-in-china.com

Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.

Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.

Q4: What is warranty time for your products? If any broken, what I will do?
2-3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.

Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.

Q6: What kinds of payment methods do you accept?
 T/T bank transfer, West Union and Paypal, L/C at sight

Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
