Car Prep Bays Preparation Bay Prep Station Preparation Station for Car Paint Refinishing

• After-sales Service：24 Hours After Service
• Warranty：2 Years
• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Infitech

=== Base Info ===

• Model NO.：IT-PRB-6100D
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Lamp：LED Lamps
• Fan：Direct Drive, Intake and Exhaust Fan
• Motor：2X5.5kw, Siemens
• Heats：Infrared Heating
• Brightness：>800lux
• Air Volume：20,000m3,H
• Empty Loaded Air Speed：0.25m,S
• Doors：Electric Soft Curtain Doors
• Rated Power：20kw
• Transport Package：Cargo Packed on Pallets Handled by Forklifts
• Specification：6100*3550*2800mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Pieces,Year

=== Description ===
Car Prep Bays Preparation Bay Prep Station Preparation Station For Car Paint RefinishingITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009

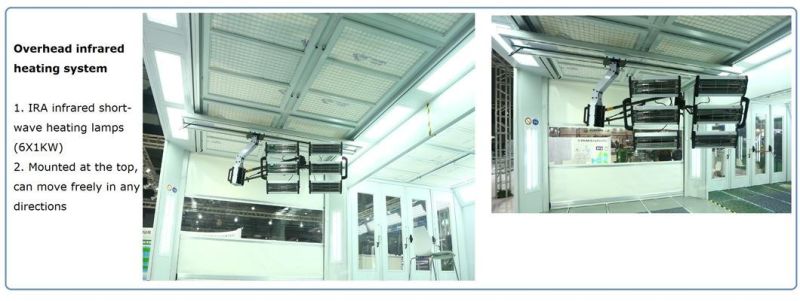

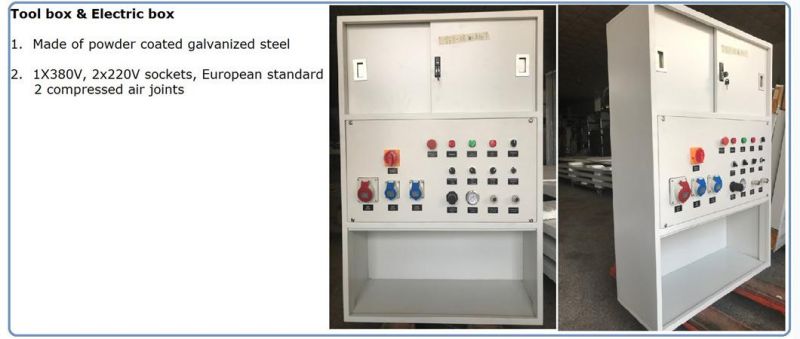

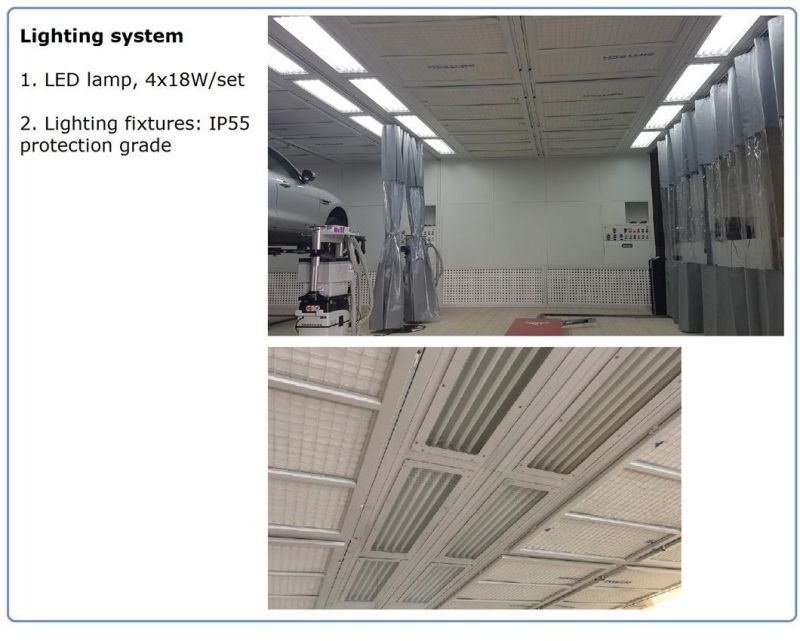

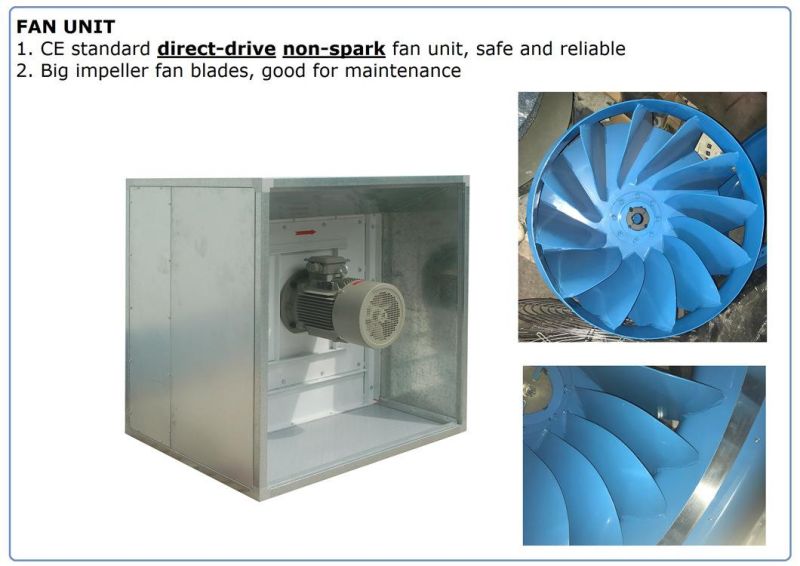

BS EN 60204: 2006+A1:2009Internal dimensions 6100 X 3550 X 2800mm (L X W X H)External dimensions7250 X 3650 X 3260mm (L X W X H)AirflowDowndraftPlenum400mm high, suspended or supported by columnsExtractionThrough pitExtraction area6.8m²Entrance door3350x2400mm (WxH), 1 set, electric soft curtain doorDivider door5860x2400mm(WxH), 1 set, electric soft curtain doorCeiling lights (LED)8 sets, each 4 X 18W, 576W totalBrightness>800LUXFiltersHigh efficiency ceiling filter, floor filter, exhaust filterIntake / Exhaust unitDirect-type turbine fan, 2x5.5KWAir volume20,000m³/hEmpty loaded air speed0.25m/sHeatsOverhead infrared curing lamp, 6x1kw/setTool box & electric boxIntegrated in the back wallInverterInverter as optionRated power20KW
3. Details

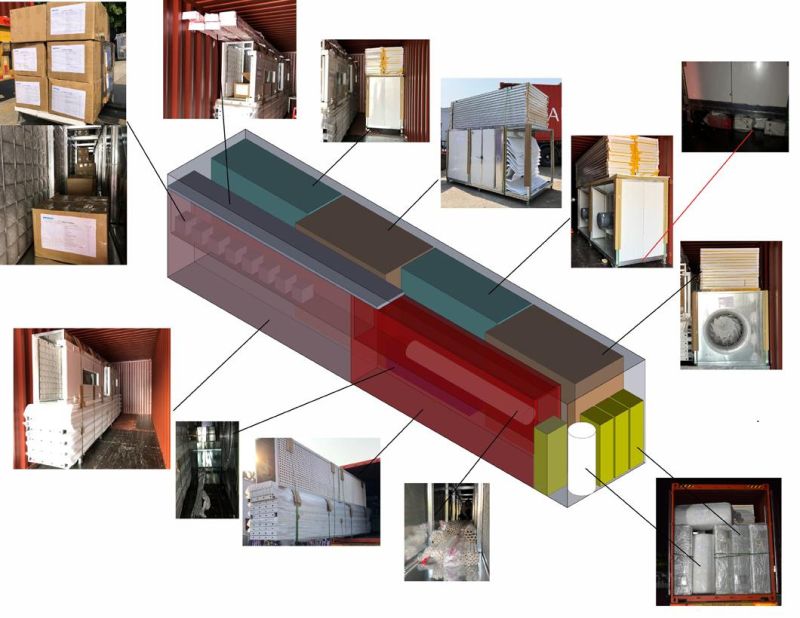

4. Packaging and loading photos

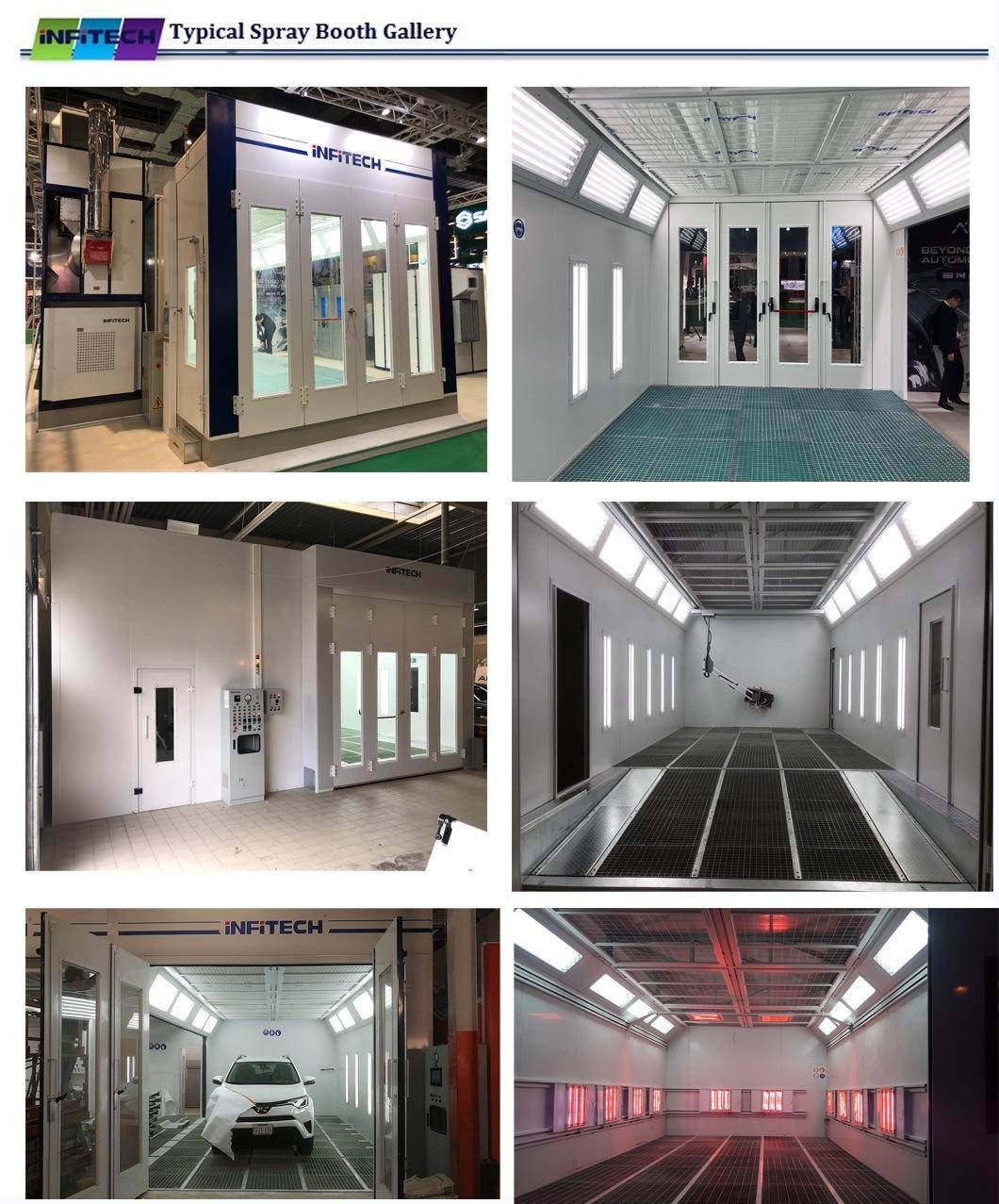

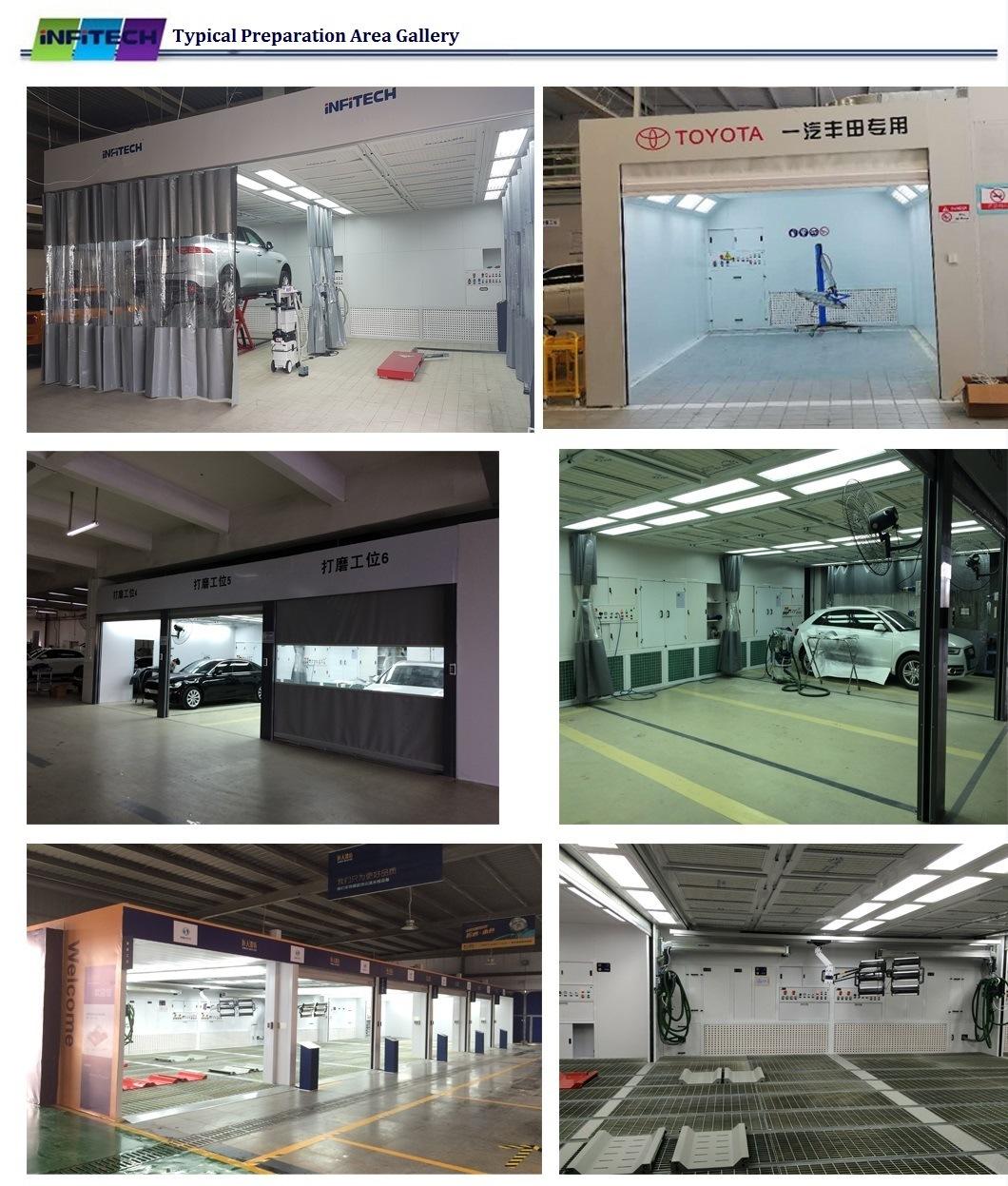

5. Typical projects

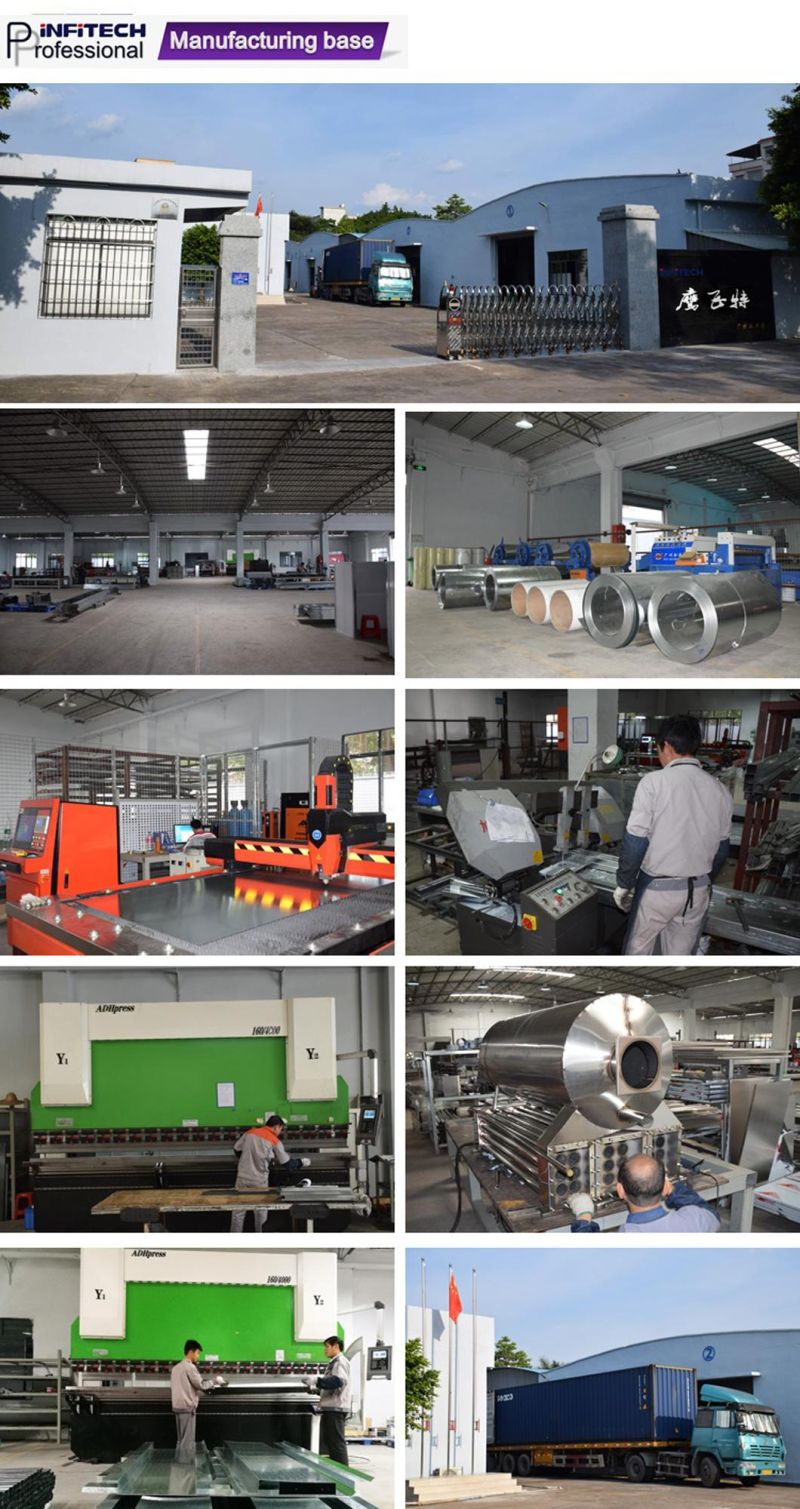

6. Factory photos
