SMD2835 240LEDs/M Flexible Light LED Strip with TUV CE RoHS IEC/En62471

• Certification：FCC, RoHS, CE, TUV CE, IEC,En62471
• Power：20W,M
• Emitting Color：Warm White,Nature White,Cool White, R,G,B,O,Y,P
• Voltage：12V,24V DC
• IP Rating：IP20, IP65, IP67, IP68
• LED Quantity：240LEDs,M 2835

=== Base Info ===

• Model NO.：TLV-FS2835Q240W
• Type：Flexible LED Strip Light Non-Waterproof Waterproof
• LED Suppliers：Xuyu,Honglitronic,Osram,Samsung
• LED Chip Brand：Sanan ( Epistar , Samsung Optional )
• LED Material：Packaged by 99.99% Pure Gold Wire, Red Copper Pad
• LED Bins：2-Step,3-Step,6-Step, Same Bin for Each Order
• LED Luminous：24-26lm,LED 2835
• PCB Material：Double-Sided Pure Copper Circuit Board
• PCB Width：10mm ( 15mm Optional )
• PCB Thickness：2oz ( 3oz Optional )
• LED Testing：IEC,En62471, Lm-80
• Adhesive Tape：Original 3000lse 3m Tape
• Packing：5m,Roll, Color Box , Anti-Static Bag
• Warranty：3 Years
• Certificates：TUV CE, FCC, RoHS, IEC,En62471
• Transport Package：Inner Box and Carton, 100reels,CTN
• Specification：5000*10*1.3mm
• Trademark：Topledvision
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：50000m,Month

=== Description ===

Basic Info.

Model NO. TLV-FS2835Q240W Type Flexible LED Strip Light Non-Waterproof Waterproof LED Suppliers Xuyu/Honglitronic/Osram/Samsung LED Chip Brand Sanan ( Epistar / Samsung Optional ) LED Material Packaged by 99.99% Pure Gold Wire, Red Copper Pad LED Bins 2-Step/3-Step/6-Step, Same Bin for Each Order LED Luminous 24-26lm/LED 2835 PCB Material Double-Sided Pure Copper Circuit Board PCB Width 10mm ( 15mm Optional ) PCB Thickness 2oz ( 3oz Optional ) LED Testing IEC/En62471, Lm-80 Adhesive Tape Original 3000lse 3m Tape Packing 5m/Roll, Color Box / Anti-Static Bag Warranty 3 Years Certificates TUV CE, FCC, RoHS, IEC/En62471 Transport Package Inner Box and Carton, 100reels/CTN Specification 5000*10*1.3mm Trademark Topledvision Origin Shenzhen, China HS Code 9405409000 Production Capacity 50000m/Month

Product Description

SMD2835 240LEDs/M Flexible Light LED Strip with TUV CE RoHS IEC/En62471

Product Parameter

Model No.	TLV-FS2835Q240W
LED Quantity	240LEDs/m 2835
Color Temperature	2000 / 24000 / 2600 / 2700 / 3000 /3500 / 4000 / 5000 / 5700 / 6500 / 8000 / 12000 K
Color	WW / NW / CW / R / G/ B / Y / Orange / Pink / Purple
Voltage	12V / 24V DC
Power (w/m)	6 / 8/ 10 / 14 / 16 / 20
CRI(RA>)	CRI>80 (CRI >90 / CRI >95 optional)
PCB Width	10mm ( 15mm optional )
PCB materials	2Oz Double-Sided pure copper Circuit Board
LED Suppliers	XUYU / Honglitronic / Osram / Samsung
LED Chip Brand	Sanan ( Epistar / Samsung optional )
LEDs Material	packaged by 99.99% pure gold wire, red copper pad
LED BINs	2-Step/3-Step/6-Step, same BIN for each order
Luminous (lm)	24-26lm/LED ( 1800-2400lm/m )
IP Rate	IP20 (33) / IP65 / Nano coating / IP67 / IP68
Cutting min unit	3 LEDs ( 12.5mm ) /  6LEDs ( 25mm )
View Angle	120°
Product Size (mm)	5000*10*1.3mm
Package (m/roll)	5m/roll ( customized length available, color box / anti-static bag packing )
Working Temperature (ºC)	-20-60°
Adhesive Tape	Original 300LSE 3M tape
Dimmable	Yes
Certificate	TUV CE, FCC, RoHS, IEC/En62471
Warranty	3 Years

Our Advantage:

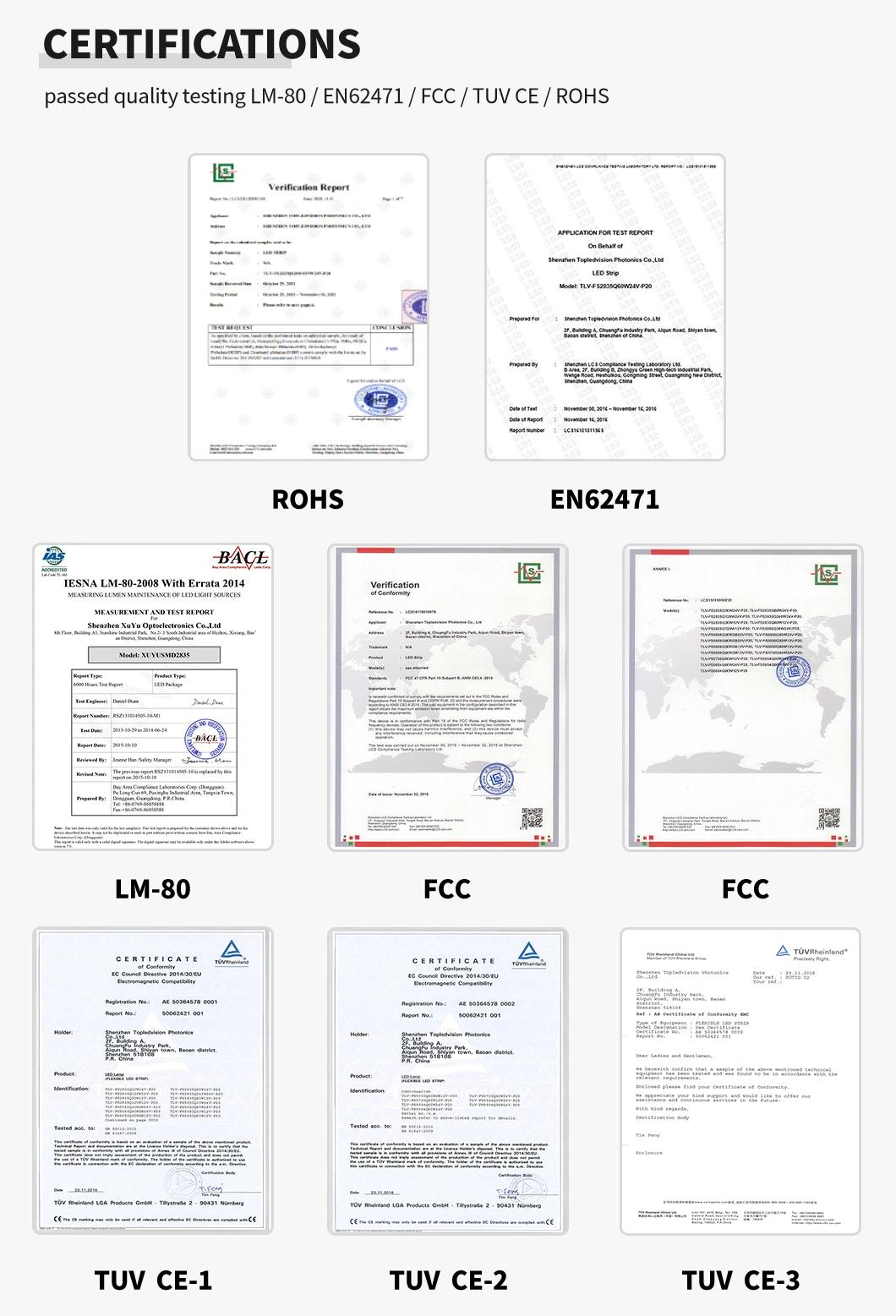

1. TUV CE, FCC, CE, RoHS, IEC/EN62471 certificates.
2. High CRI >95Ra, super brightness, ideal for restaurant and super market, make everything looks more real.
3. We do large stock materials for products to keep the same color temperature and PCB and stable quality for each batch.
4. Quick delivery time 3-5 working days.

Features as follow:

1. LED source: 24-26lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/10mm width FPC and smaller components, LED stripe light is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED strip 2835 have more than 50000hours working life with 3 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.


Model	LED quantity	Output	Power	PCB Width
TLV-FS2835Q30W	30LEDs/m	12/24V DC	6W	8mm
TLV-FS2835Q60W	60LEDs/m	12/24V DC	12W	8mm /10mm
TLV-FS2835Q120W	120LEDs/m	12/24V DC	16W	8mm /10mm
TLV-FS2835Q168W	168LEDs/m	12/24V DC	18W	10mm
TLV-FS2835Q240W	240LEDs/m	24V DC	20W	10mm
TLV-FS2835Q264W	264LEDs/m	24V DC	22W	10mm

IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater


Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.


Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.

Our Company:

FAQ:

Q1: Do you have free sample? A1: Yes, we can offer you free samples, excluding shipping cost.

Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail.

Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.

Q4: What's your delivery ways as usual? A4: Normally, we help you send the products by Express, Air or Sea transportation.

Q5: What's the payment term? A5: We accept  T/T, PayPal or Western Union, Cash.

Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.

Contact us for more details:
