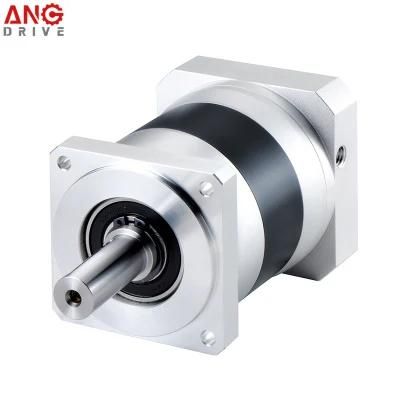

High Efficiency Coaxial Inline Servo Right Angle Precise Low Backlash Helical Precision Planetary Speed Gear Reducer

• Application：Machinery
• Function：Change Drive Torque
• Layout：Coaxial or Right Angle
• Hardness：Hardened Tooth Surface
• Installation：Horizontal Type
• Step：Double-Step

=== Base Info ===

• Model NO.：PL series
• Type：Planetary Gear Box
• Ratio：1,3 ~ 1,512
• Torque：40-3000nm
• Input：Servo Motor , Step Motor
• Output：Solid Shaft , Hollow Shaft , Flange
• Transport Package：Carton+Wooden Case
• Specification：Size 40-220
• Trademark：ANG Drive
• Origin：China
• HS Code：8483409000
• Production Capacity：30000PCS Per Month

=== Description ===
ANG Precision Planetary GearboxModel40-220TypeCoaxial or Right angleRatio1/3 ~ 1/512Torque40-3000NmEfficiency98%Input/Output shaft material40CrHousing material42CrMoMachining precision of gears6 GradeGear material20CrMnTiLubricating oilSynthetic GreaseSurface hardness of gearsHRC58-62Heat treatmentCarbonize & quencherBrand of bearingsC&U, HRBVibration≤15μmBrand of oil sealSKFOil Temp. rise (MAX)40ºCNoise (MAX)55-70 dBNoise (MAX)70º




FAQ

Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, flange, terminal box, IP grade, etc.

Q: Do you provide samples?
A: Yes. Sample is available for testing.

Q: What is your MOQ?
A: It is 1pcs for the beginning of our business.

Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.

Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.

Q: How to ship to us?
A: It is available by air, or by sea, or by train.

Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.

Q: How can I know the product is suitable for me?
A: >1^ST confirm drawing and specification >2^nd test sample >3^rd start mass production.

Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.

Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
