Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips

Qingdao Haochen Packing Co., Ltd. / 2022-06-27

Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips

  • Certification:UL, RoHS, CE, Bis
  • Power:14.4W,M
  • Emitting Color:RGB
  • Voltage:12V DC
  • IP Rating:IP67
  • Chips Qty:60PCS,Meter

=== Base Info ===

  • Model NO.:RCC60AA10G-1220
  • FPC Width:10mm
  • Lumens:250 Lm,Meter
  • Min. Cut:50mm
  • Transport Package:Carton Packaging
  • Specification:5M per roll
  • Trademark:MYNICE,Neutral,OEM,ODM
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:1, 000, 000m,Month

=== Description ===

Basic Info.

Model NO. RCC60AA10G-1220 FPC Width 10mm Lumens 250 Lm/Meter Min. Cut 50mm Transport Package Carton Packaging Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Magic SPI DC12V 5050RGB 60LEDs/meter flexible neon LED strips
Application
It is used in indoor and outdoor landscape lighting, architectural lighting, decorative lighting, groove lighting, showcase lighting, swimming pool lighting, yacht and ship lighting, contouring and other scenes.

Main features
- High-quality 5050RGB LEDs.
- Using SPI serial protocol,the signal output stability is good,and the scope of application is wide.
- IC has many options,flexible design and high cost performance.
- High light transmittance,environmentally friendly silicone material, UV resistance, yellowing resistance.
- Unique optical light distribution structure design,uniform light emission on the surface without shadows.

Main Parameters
Product size 5000*12*20 mm
Cut-able unit 50mm
LED pitch 16.67 mm
LED quantity 60 LEDs/m
Max. cascade length 5 m
Min. bend diameter 20 mm
Mounting solution 3M tape
Control method SPI External control
Grey scale 256
Operating ambient -25ºC~45ºC
Storage environment -25ºC~60ºC / 60% RH
Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips



Photometrical data

Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips
Optical illuminance parameters

Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips
Dimensional drawing
Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips

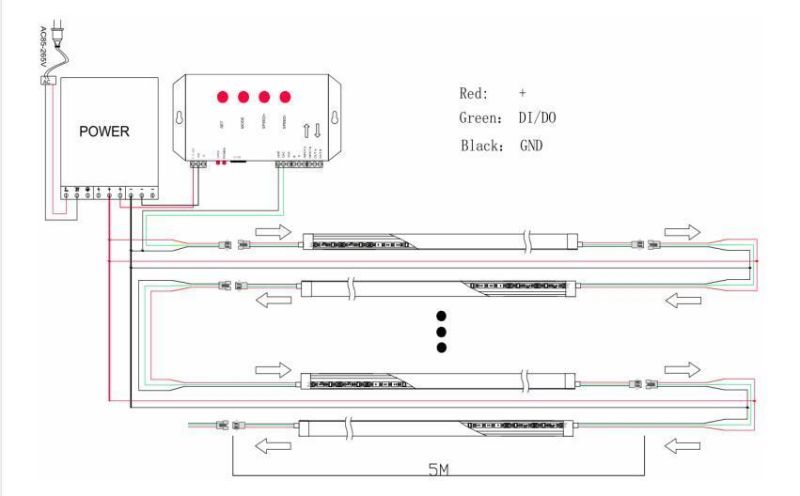

Installation wiring diagram
Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips

Optional accessories

Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips

Package
Magic Spi DC12V 5050RGB 60LEDs/Meter Flexible Neon LED Strips
Instructions

- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the
voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40
ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
