Guangli Factory Hot Sale Good Price Car Service Workshop Equipment Paint Spray Booth

• Type：Painting Spray Booth
• Certification：CCC, CE, CSA, GS
• Substrate：Steel
• Brand：Guangli
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type

=== Base Info ===

• Model NO.：GL1000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：24000
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL1000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

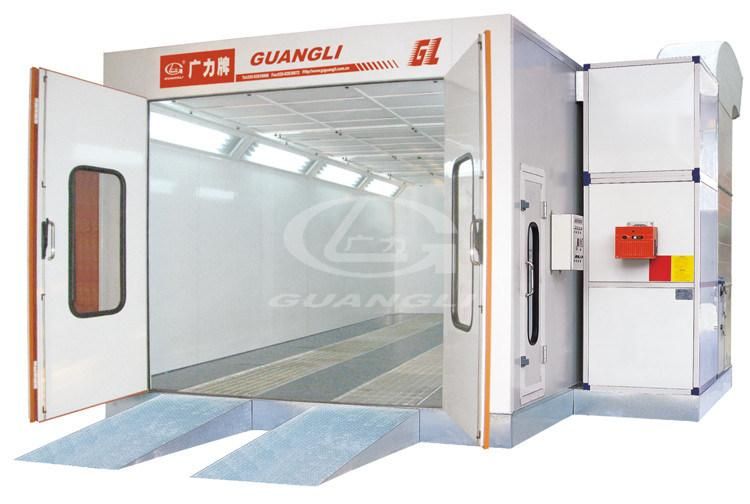

Guangli Factory Hot Sale Good Price Car Service Workshop Equipment Paint Spray Booth
Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,3 rows od vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp:2 pcs of vein board.
--One unit of 7.5kw intake fan and one unit of 4kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pcs of air mouth filter.
--Upper light :10sets,4*40W per set.
--Control box:components made in china,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying

Model	GL1000-A1
External size (m)	7.0X5.3X3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m3 /h )	24000
Air velocity (m/s)	0.25-0.35
Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	13.5
Suitable Automobile Type	Car
Remark	Customization is available

Guangli Spray Booth Show


Guangli Spray Booth Series


Factory Show
Founded in 1994, GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.Guangli enterprise headquarter covers 58,000M2 of grounding area and 36,000M2 of building area.
Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,
Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

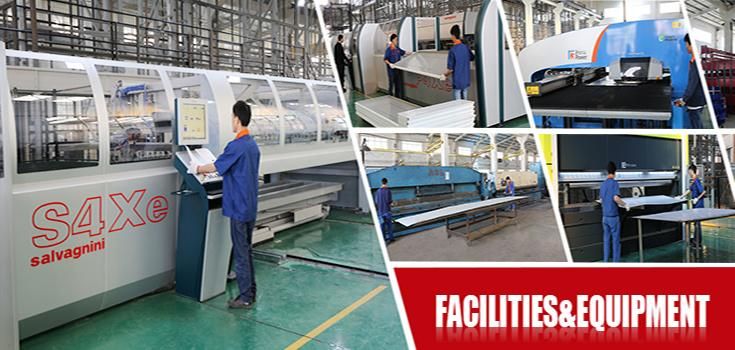

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.


Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers manyoptions for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.Contact Information:
