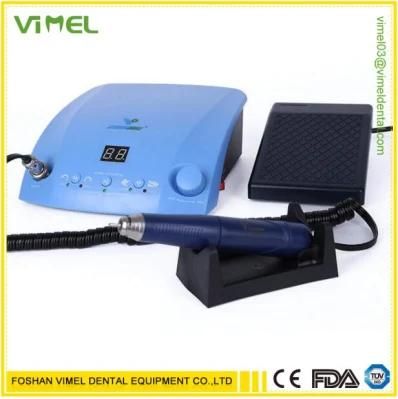

Strongdrill Dental Lab Brushless Micromotor Polisher Polishing Machine+Handpiece

• Interface：AC100-240V
• Teeth Whitening Method：Cold Light Whitening
• Applicable Departments：Oral Rehabilitation Department
• Certification：RoHS, ISO, UL, CE
• Type：Dental Drill & Accessories
• Material：Metal

=== Base Info ===

• Model NO.：WM-450
• Model：Strongdrill
• Transport Package：1set,Box
• Specification：4kg
• Trademark：VIMEL
• Origin：China(Mainland)
• Production Capacity：5000piece,Year

=== Description ===
ModelQZ-60InputAC220V /AC110 V,50-60HzOutputDC0-36VPower150WWeight2.25KGDimensionL205mm*W201mm*H80mmUseGrinding teeth, jade carving, tool repair, repair ManicureModelQZ-Q91000Rpm-50000Rpm1000Rpm-50000RpmMax torque9.5N.cmWeight245gCable length1.5MSizeL152mm*26mm










Instruction manual:

1 power socket: Connect to power line

2 Power fuse: fuse in the controller with automatic recovery function, when the motor current is too large or the use of force is too large, built-in recovery fuse is disconnected, so grinding machine handpiece to stop working, you need to turn off the main power switch for one minute after the restart

3 voltage switch: AC220V or AC110V, note voltage 110V AC220V can not be converted to use, otherwise it will damage the control panel, pay attention to the voltage 110V 220V can not be transferred, otherwise it will damage the control panel

4 speed foot switch Interface: The foot switch can choose any speed from 0 rpm to the speed control knob set

5 operation indicator: When running light is off, to be checked after voltage outlet fuse is disconnected, such as fuses off, you need to replace 2A fuse, can continue running.

6 main power switch

7 Knob Speed indicator: When the indicator light on the knob function is enabled speed.11

8 start and stop lights    start and stop lights to indicate the handpiece is in working condition, when the light is off, the handpiece to stop working

9reverse indicator lights on behalf of reversal

10 Forward indicator lights representatives Forward

11 speed control knob  speed control knob use to regular the speed, in the absence of the foot pedal , the handpiece  speed will be in accordance with the rpm speed control knob settings, there is a foot switch , handpiece speed will be in according to foot pedal  operation.

12  handpiece connector

13 foot pedal indicator lights, on behalf of the pedal speed control function is enabled, you can adjust speed through foot pedal

14 start /pause button

15 speed mode  select button to choose knobs or foot pedal to control speed

16reversing button control handpiece Reversible
