- Application:Motor, Electric Cars, Machinery, Marine, Agricultural Machinery, Car
- Function:Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout:T Type, L Type
- Hardness:Hardened Tooth Surface
- Installation:Universal Mounting
- Step:Single-Step
=== Base Info ===
- Model NO.:JTA20
- Type:Spiral Bevel Gearbox
- Structures:Spiral Bevel Gears, Input Shaft and Output Shaft..
- Max. Input Power:1.92kw
- Max. Torque:18.15nm
- Gear Ratios:1:1, 2:1
- Shafts Configurations:2 Way, 3 Way
- Drive Shafts Diameter:20mm
- Max. Input and Output Speed:1500rpm
- High Efficiency:95%-98%
- Shafts Rotation Directions:Forward and Reverse Direction
- Assembly Drawing Type:3D Model, 2D Drawing
- Warranty Period:1 Year
- Transport Package:Standard Exporting Plywood Cases
- Trademark:JACTON
- Origin:Guangdong, China
- HS Code:8483409000
- Production Capacity:6400 PCS,Month
=== Description ===
Basic Info.
Model NO.
JTA20
Type
Spiral Bevel Gearbox
Structures
Spiral Bevel Gears, Input Shaft and Output Shaft..
Max. Input Power
1.92kw
Max. Torque
18.15nm
Gear Ratios
1:1, 2:1
Shafts Configurations
2 Way, 3 Way
Drive Shafts Diameter
20mm
Max. Input and Output Speed
1500rpm
High Efficiency
95%-98%
Shafts Rotation Directions
Forward and Reverse Direction
Assembly Drawing Type
3D Model, 2D Drawing
Warranty Period
1 Year
Transport Package
Standard Exporting Plywood Cases
Trademark
JACTON
Origin
Guangdong, China
HS Code
8483409000
Production Capacity
6400 PCS/Month
Product Description
Jacton Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox (also known as a aluminium light duty 90 degree bevel gearbox, a aluminium light duty gearbox, a aluminium light duty 1:1 gear box, or a aluminium light weight bevel gear box) with advantages: high efficiency, high transmission capacity, low backlash, noiseless operation, and long service life.
Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox Features:
1. Maximum allowable torque 18.15 Nm, Maximum allowable power 1.92 kw, maximum allowable input or output speed 1500 rpm.
2. Bevel gears ratios 1:1 and 2:1. Transmission efficiency up to 94-98%.
3. Used in pairs high-precision spiral bevel gears to transmit rotary motion, mechanical power and torque.
4. Can be mounted in all directions, and mounting is also easy.
5. Solid input shaft and solid output shaft as standard.
6. 2 way, 2 way reverse, 3 way, 3 way reverse configurations as standard.
7. 6 types drive shaft arrangements and rotating directions. Note: drive shafts can be rotated in both clockwise and anti-clockwise rotation directions.
8. Mouting positions: horizontal mounting, overhung mounting, wall mounting.
9. Lubrication depends on output speed. Standard is grease lubrication that is maintenance free.
10. High efficiency, high transmission capacity, low backlash, noiseless operation, low running temperature and long service life.
Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox main components with international standard materials: The main components are Alloy steel case hardened spiral bevel gears for high efficiency, quiet operation, high rigidity, wear resistance and long service life. Alloy steel input shaft and output shafts are mounted on precision ball bearings for smooth operation. Custom high corrosion resistant stainless steel (SUS304) is used for the shaft material. Housings are made of lightweight aluminum alloy, compact, lightweight, and good-looking.
Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox Specifications
The specifications of Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox include bevel gears ratio, input speed, output speed, power rating, and working torque.
Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox Dimension Drawing
Find out Corrosion Resistant Aluminum Housings JTA20 Spiral Bevel Gearbox front view, side view and top view assembly drawings. About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact us directly.

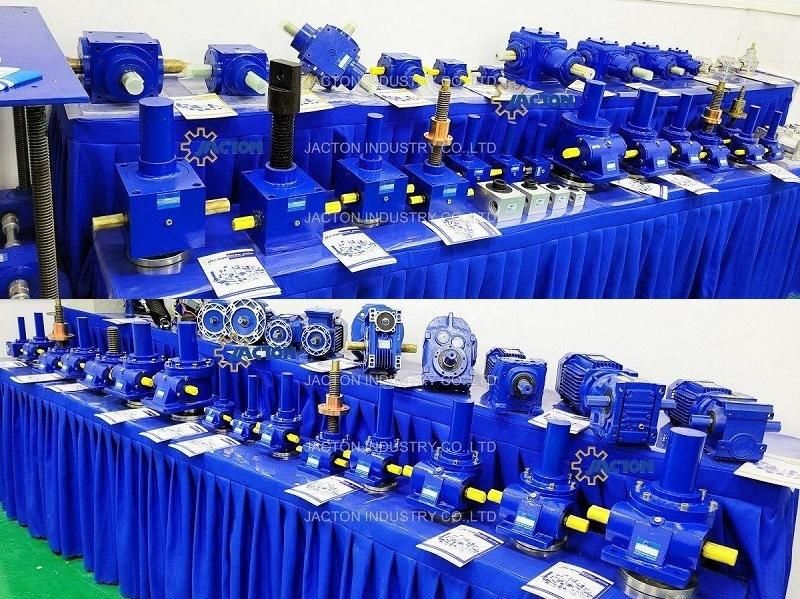

Company ProfilesJACTON Industry Co.,Ltd (VAT No.: 9144190007026567X3, registered Capital 500000CNY) is a leading manufacturer and supplier of Screw Jacks (Mechanical Actuators), Bevel Gearboxes, Lifting Systems, Electric Linear Actuators, Gearmotors and Speed Reducers, Others Linear Motion and Power Transmission Products in China. We are located in Chang An, Dong guan, Guang dong in China. We are an audited professional manufacturer and supplier by SGS (Serial NO.: QIP-ASI192186) and BV (Serial NO.: MIC-ASR202862) organizations. We have a strict quality system, with senior engineers, experienced skilled workers and practiced sales teams, and consistently provide the customers with the best engineered solution for precision linear actuation, power transmission and mechanical jacking systems. Jacton Industries guarantees quality, reliability, performance and value for today's demanding industrial applications.
Company Advantages* One of the biggest orders with 1750 units screw lift jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.Products List* Manual Screw Jacks
* Electric Screw Jacks
* Screw Jacks Series:
Cubic Screw Jack JTC Series, Machine Screw Jack JTW Series, Trapezoidal Screw Jack JT Series, Worm Screw Jack JTM Series, Stainless Steel Screw Jack JSS Series, Through Hole Screw Jack JTH Series, Ball Screw Jack JTB Series, Cubic Ball Screw Jack JTD Series, Bevel Gear Screw Jack JTS Series, and Electric Cylinder JTE Series.
* Bevel Gearboxes Series:
Cubic Bevel Gearbox JTP Series, Hollow Shaft Gearbox JTPH Series, Input Flange Gearbox JTPF Series, Input Flange and Hollow shaft Gearbox JTPG Series, Stainless Steel Gearbox JTP Series, Aluminum Gearbox JTA Series, and Bevel Gearboxes JT Series.
* Screw Jack Lifting Systems and Accessories:
2jacks lifting system, 3jacks lifting system, 4jacks lifting system, 6jacks lifting system, 8jacks lifting system......14jacks lifting system. Lifting systems accessories cover ac, dc motors, geared motors, servo motors, stepper motors, handwheels, couplings, universal joints, telescopic universal joints, connecting shafts, cardan shafts, limit switches, proximity switches, safety nut, travel nut, rod ends, stop nuts, pillow block bearings, flange blocks, motor flange nema or iec, encoder, potentiometer, frequency converter, position indicators, trunnion plate, and trunnion mounting brackets.
* Electric Linear Actuators Series:
Electro Mechanical Actuators LA Series, Electro Mechanical Actuators LAP Series.
* Gear Reducers Series:
Helical Gear Reducers R Series, Helical Bevel Gear Reducers K Series, Parallel Shaft Helical Gear Reducers F Series, Helical Worm Gear Reducers S Series, Helical Gear Motor GMH/GMV Series, and Worm Gear Reducers NMRV Series. Customers Distribution Countries* American Countries: United States, Mexico, Canada, Chile, Argentina, Bolivia, Brazil, Colombia, Guatemala, Honduras, Panama, Peru.
* European Countries: Germany, France, United Kingdom, Italy, Spain, Poland, Romania, Netherlands, Belgium, Greece, Czech Republic, Portugal, Sweden, Hungary, Austria, Switzerland, Bulgaria, Denmark, Finland, Slovakia, Norway, Ireland, Georgia, Slovenia.
* Asian Countries: Malaysia, Indonesia, Singapore, Philippines, Vietnam, Thailand, India, Israel, Cambodia, Myanmar, Sri Lanka, Maldives, Pakistan, Iran, Turkey, Jordan, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Georgia, Armenia.
* Oceanian Countries: Australia, New Zealand.
* African Countries: Egypt, Ethiopia, Nigeria, South Africa, Zambia, Mozambique.
