Outdoor Fixed Full Color Rear Maintenance LED Board

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：600W , m²

=== Base Info ===

• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>7000nits
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Cabinet：Alu,Steel
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP65
• Transport Package：Plywood Cases
• Specification：960x960mm 1280x1280mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Outdoor  front service back service led display screen

Model Number

P3 to P20

Pixel Pitch

3mm-20mm

Pixel Density(pixels/M2)

2500 -111111 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

320x320mm (options)

Module Resolution(pixels)

32*32 (otions)

Min.Viewing Distance(m)

3-50

Brightness(nits)

>6000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP65/IP54

Cabinet Size(mm)

960x960mm / 960x640mm / 960x1280mm / 1280x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

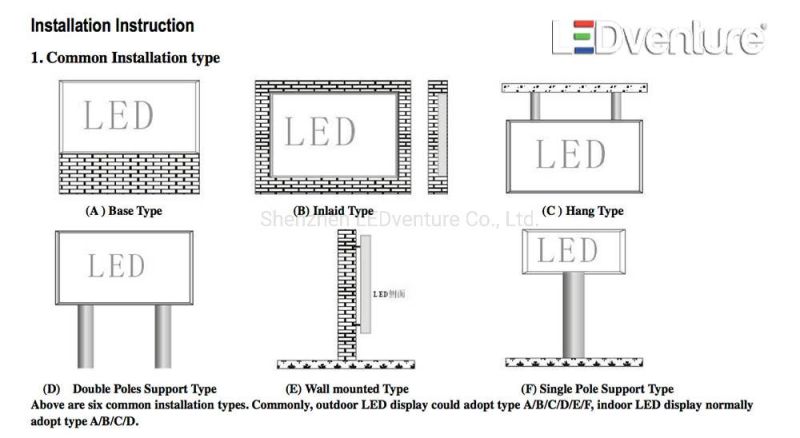

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.





Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
