P8 Outdoor LED Display Screen Wall for Advertising

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO9001
• Product Name：Outdoor LED Display P10-4s(High Brightness)
• Driver IC：Mbi5124
• Bightness CD/Sqm：5000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500K
• Transport Package：The Factory Packaging
• Specification：320*160mm
• Trademark：hongking
• Origin：China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

=== Description ===

Basic Info.

Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO9001 Product Name Outdoor LED Display P10-4s(High Brightness) Driver IC Mbi5124 Bightness CD/Sqm 5000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500-9500K Transport Package The Factory Packaging Specification 320*160mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

P8 Outdoor LED Display Screen Wall for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

 Overview:

• 1. CE & RoHS & CCC&EMC Certified
  2. Ultra-High Resolution
  3. 100 % waterproof, rainproof, and dustproof, IP Grade 65
  4. 3 years' or 2 years' warranty, optional
  5. The color for your life, incredible products and services as well

Features:

• Light Weigh and small structure
• Wide range of sizes
• Fast Installation

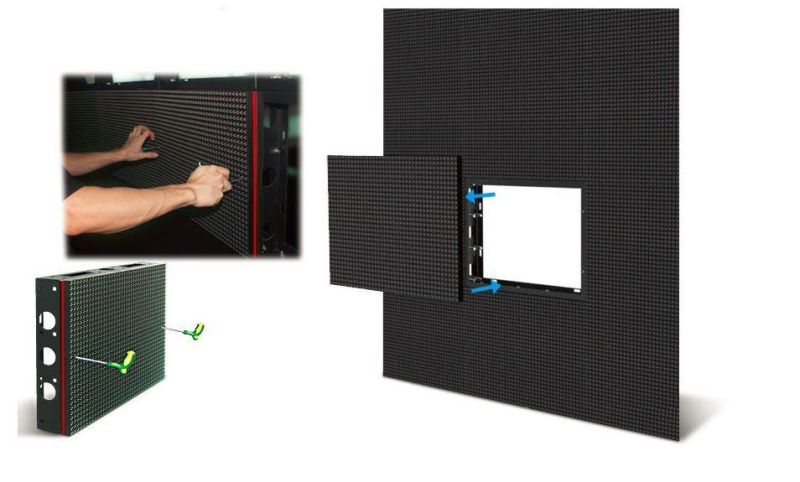

Cabinet:

• Durable and sturdy aluminum casting cabinet
• IP65 Waterproof




Specifications:

Product name	Outdoor SMD P10 led display
Pixel Pitch(mm)	10mm
Pixel configuration	1R1G1B/ SMD3535
Pixel density	10000dots/sqm
Brightness	7000cd/sqm
Module size(W*H)	320mm×160mm
Module Resolution (W*H)	32 dots x 16dots
Module weight	450g
Cabinet size (W*H)	960mm×960mm
Drive IC	MBI5124 OR ICN 2038s
Drive mode	1/2scan
Viewing Angle(V/H)	110ºC
Grey Scale	65536 degree
Life time	>100,000 Hours (80%)
MTBF	>50,000 Hours
Operating Voltage	AC110V/220V±10%
Screen Power Consumption	Max: 900w/sqm; Average:300w/sqm
Input Power Frequency	50/60Hz
Operating temperature	-30--60ºC
Humidity	10%-95%
Refresh Rate	≥1920HZ
Control Method	Synchronized with computer monitor

Product Application Cases:




Why choose  HONGKING?

    HONGKING is a professional manufacturer of LED display screens over 8 years. We have strong R&D to ensure high end products with user-friendly design .
    The prices are very competitive due to our large-scale procurement of raw material.   We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
    We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
    We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
    Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
    We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs.








Professional production:

Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

FAQ :

1. Q: Can I get some samples?
     A: Yes,sample order is available for quality check and market test.
 2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
 At least 30%deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  2-3 years warranty
4. Q: Do you have the products in stock?
    A: Yes ,of course
5. Q: Freight Cost?
    A: The shipping cost depends on different weight;
         We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
    A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
        We offer you TEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your LED product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement


If have any question please kindly feel free to contact with us




---------------------------------------------------------------------
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Contact : Phebe


---------------------------------------------------------------------
