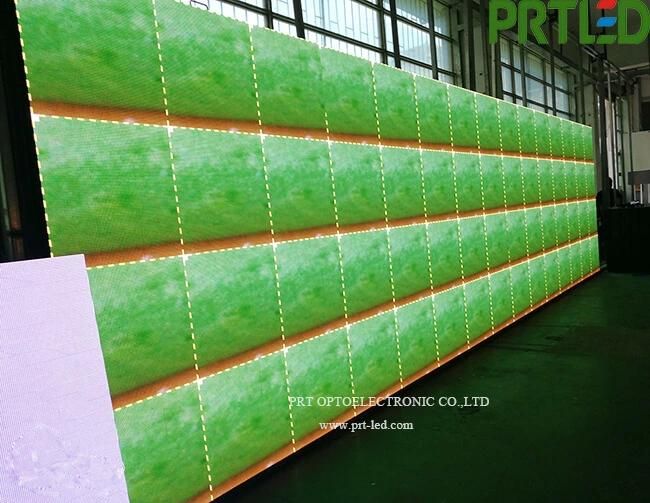

Full Color Video Advertising LED Display Screen with Panel 576 X 576 mm (indoor outdoor P3, P6)

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：6mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：P6
• Pixel Density：27777dots,Sq.M
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising, Stage Performance, Rental
• Certification：CE, RoHS, CCC
• LED Encapsulation：SMD3535
• Module Size：192 X 192mm
• Cabinet Size：576X576mm
• Cabinet Resolution：96X96 Dots
• Transport Package：Wooden Case or Flight Case
• Specification：CE, FCC. ROHS, 3C
• Trademark：PRT
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：3000sq. M,Month

=== Description ===
P6 SMD3535 Indoor full Color LED Screen SpecificationPixel pitch6mmPixel Configuration1R1G1BLED componentSMD3535Size of module192mm x 192mmResolution of module32 x 32 dotsSize of cabinet576mm x 576mm x 65mmResolution of cabinet96x96 dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet10.50KGSBrightness>6000cd/sq.mDensity27777dots/sq.mBest viewing angle140° /140°Pixel Configuration1R1G1BBest viewing distance5-60MMaximum power consumption1000W/sq.mAverage power consumption560W/sq.mDriving method1/8 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development





This cabinet design also suit for indoor P3,P6.

Our products produced according to international standard to ensure the high quality,and we got certifications as following:
