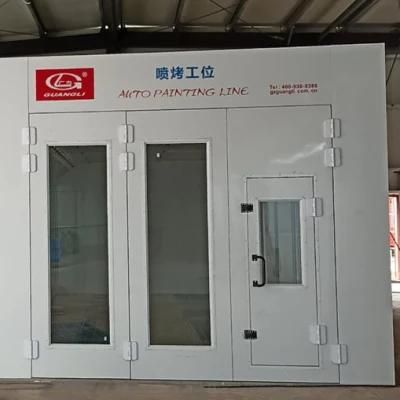

Spray Booth/Paint Booth with Customized Design

• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Guangli
• Coating：Painting
• Airflow Direction：Fully Undershot-type

=== Base Info ===

• Model NO.：GL Series
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：1 Piece in The Side Wall, with Pressure Lock
• Panel Color：White
• Keep Warm Material：EPS, Rock Wool as Optional
• Manufacture：Guangli
• External Size：7.0*5.3*3.5
• Internal Size：6.9*3.9*2.7
• Door Width：3 M
• Door Height：2.66m
• Air Flow (Cubic Meter/Hour)：24000
• Inside on-Load Air Speed(M/S)：0.3-0.5
• Power(Kw)：18
• Vehicle Suited：Saloon
• Transport Package：20 Gp Can Hold 1 PCS
• Specification：Internal Size 6.9 x 3.9 x 2.7(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

=== Description ===
Model NO.GL3000-A1 ( CE standard)External Size7.0*5.3*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover
Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorwhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light
Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensurring the sealSide light(2)sides*(4)sets*(2)pcs, LED 18W/piece
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the sealGenerator:ColorWhite, Iron frame with Aluminum angelBurnerItaly Riello diesel burner G20Intake Fan1 set of 7.5 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 7.5 kw without pre-filterFan capacity(30000)M³/hDuct&Chimney ductWith 5m exhaust duct.
5m straight chimney and 2 small bends.Motor Voltage380V/50HZ/3PH(other voltage contact me)Control boxCE components;Motor soft start; Without 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor full gridsFloor filter2  rows/setRamps2 pcs of veins plates style ramps
Filter Frame:Top filter 4 pcs/setStructureHinge installed iron welded, powdered
Automatically stop when preset time is up. ---Constant temperature spraying

Total Power: 18 KW

Optional wall panel structure--- stronger
