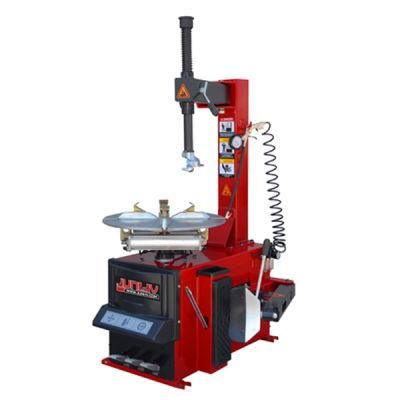

Heavy Dutytruck/Bus Earthmoving Vehiclestyre Changer with High Quality

• Structure：Vertical
• Power Source：Pneumatic
• Type：Simple Disassembly
• Automatic：Semi-Automatic
• Standard：Standard
• Certification：CE

=== Base Info ===

• Model NO.：JH-706A
• Condition：New
• Width：3"-13"
• Rim Clamp From Outside：10"-17"
• Motor：1.1kw-0.75kw
• Power Supply：110V,220V,380V,240V,415V
• Air Pressure：0.7-0.8MPa
• Rim Clamp From Inside：12"-20"
• Bead Breaker Pulling Force：2500kg
• Max. Wheel Diameter：650mm
• Transport Package：Iron Bracket
• Specification：Standard Export Packaging
• Trademark：Customer choice
• Origin：Dalian, China
• HS Code：84254290
• Production Capacity：600sets,Month

=== Description ===

Basic Info.

Model NO. JH-706A Condition New Width 3"-13" Rim Clamp From Outside 10"-17" Motor 1.1kw-0.75kw Power Supply 110V/220V/380V/240V/415V Air Pressure 0.7-0.8MPa Rim Clamp From Inside 12"-20" Bead Breaker Pulling Force 2500kg Max. Wheel Diameter 650mm Transport Package Iron Bracket Specification Standard Export Packaging Trademark Customer choice Origin Dalian, China HS Code 84254290 Production Capacity 600sets/Month

Product Description

Product DescriptionHeavy DutyTruck/Bus Earthmoving VehiclesTyre Changer with high qualityFeatures SPECIFICATION
Rim clamp from outside:10"-19"
Rim clamp from inside: 12"-21"
Max.wheel diameter: 960mm
Max wheel width:12"
Working air pressure:0.8-1.2Mpa
Motor:380v 0.75kw 3ph 50hz
Machine weight:190kg

ADVANTAGE
Square shape column, Swing arms type, Rotate handwheel limit, saving space
1)Hexagon head bolt shaft control vertical lift, manual locking.
2)Rotary plate with 4 clamping with self-centered construction could make sure it hold, clip wheel reliably.
3)Two sets of clamping cylinder assembly support the action of hold and clip the wheel.
4)Dual role bead breaker shoe control cylinders to press the tire.
5)3 Alumina alloy foot pedals.
6)Electronic control rotary plate clockwise and counterclockwise rotation.
7)Rotary plate with clamping control foot petals in cylinder forward step by step. Its convenient and promptly to folder rims.
8)Standard water-oil separator with pressure watch.





Product Detalis

Packing
Package:use the iron bracket package(2850mm*550mm*850mm)
shipping:25 days after receiving payment

Quality management
To guarantee high quality and efficient management, we have passed ISO9001 quality management system
certificate and the CE certification. All of our products are 100% inspected before shipment.Whole manufacturing
processes are under a veryserious and strict system.

The production process


About us
Qingdao Junhv Industry and Trade Limited Company located at Huangdao District Qingdao City,with an area of 10000 sq meters.
It takes 1 hour to Qingdao airport,and 40 minutes to Qingdao seaport.

The company is professional at researching & developing,producing and exporting various car lift,including 2 post lift,4 post lift,
scissor lift,and parking lift.also we sell tire machine and wheel balancer,and all products with CE certificate.

The company has most advanced production equipments,welding robot,germany laser cutting,full automatic bending machine,
powder painting line,automatic drill machine.all these machine can keep the accuracy of all parts of the lifts,and and can make
highest degree of adaptability during all parts.

The company sales team all woked in garage equipment business for many years and know what concern very much,easy to
communicate and always think for customers.
JUNHV aims to become of of the best garage equipments manufacturer in the world and lead the Chinese garage equipments
industry into modernized production and management system.

Give us one chance,we will payback you more wealth and free time !



Certificate
Q:What's the min order?

A:1 set.

Q:What's the warranty?

A:1 years for free.
