Contitech Air Suspension Shock Absorber Concoluted Type Fd70-13 Air Spring
Lin Yi Ben Ben International Trade Co., Ltd. / 2022-06-24
- Warranty：1 Year
- Part：Air Spring
- Type：Gas-Filled
- Spring Type：Air Spring
- Spring Material：Rubber
- Structure：Double Convoluted
=== Base Info ===
- Model NO.：FD 70-13
- Damping Force Direction：Bidirectional
- Condition：Brand-New
- Service：Sample and OEM
- Gas Hole：G1,4
- Screw Tooth：2xm8X1.25
- Transport Package：Strong Carton Box or as Customers Need
- Trademark：GUOMAT
- Origin：Guangzhou
- HS Code：8708809000
- Production Capacity：5000PCS,Month
=== Description ===
Top Cover Plate Diameter:105mm/4.13 inches
Bottom Cover Plate Diameter:105mm/4.13 inches
Top Cover Plate Screw(Nut) Tooth:2XM8X1.25
Botom Cover Plate Screw(Nut)Tooth:2XM8X1.25
Screw Center Distance of top Cover Plate:44.5mm/1.75 inches
Air Inlet Type:Metric
Air Inlet:G1/4
Rubber Bellows Diameter:146mm/5.75 inches
The Working Stroke:162mm/ 6.38 inches
Min Temperature:-76ºF
Max Temperature:158ºF
Bellows Type:Double Convoluted

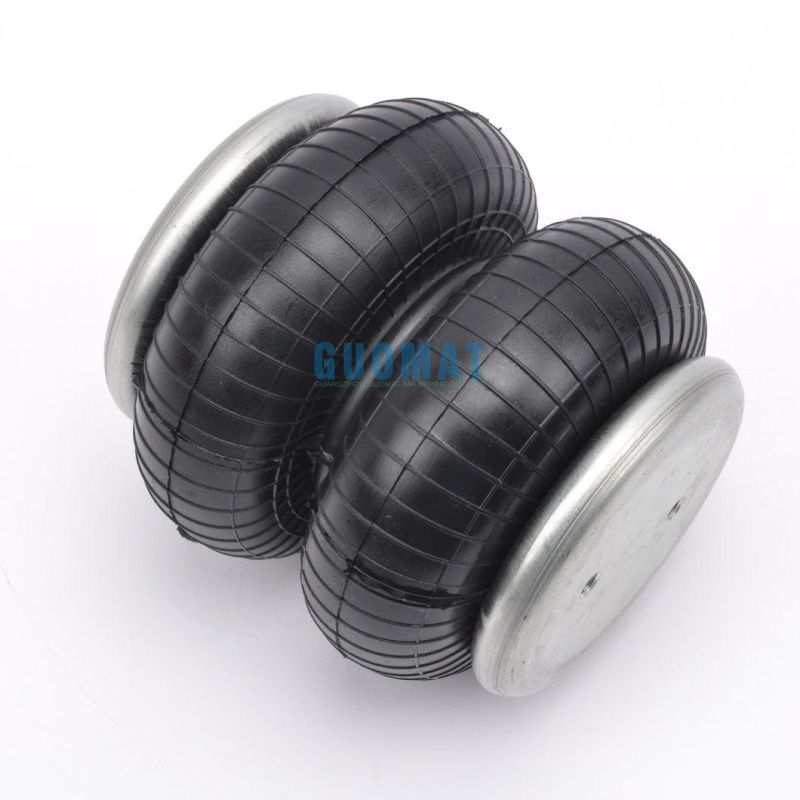

Product Image
FAQ
| 1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years. |
| 2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
| 3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order. |
| 4. What is your warranty term? Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts. |
| 5. Can i use my own logo and design on products? YES,OEM is welcomed. |
| 6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
