The Best LED Billboard Manufacturer in China-Szledworld

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：FO10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Configuration：SMD3535
• Module Size：320X160X16
• Cabinet Size：960X960X154
• Binet Weight：36 Kg
• Brightness：>7000CD,M2
• Viewing Angle：H: 120 V: 120
• Cabinet Material：Die-Casting ,Cold Rolled Steel or Aluminum
• IP Rate：Front IP65
• Supply Voltage：AC220V,50Hz; AC110V,60Hz
• Display Capability：Text, Graph and Video
• Transport Package：Wooden Case,Carton Box,Flight Case or as Required
• Specification：CE UL RoHS etc
• Trademark：LED World, OEM, ODM
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：10000sqm Per Moth

=== Description ===
Overview Product Description1, Waterproof module with enclosed structure;
2, Patent mask design, dust-proof and waterproof, protection level up to IP65;
3, High brightness, the highest brightness could reach 7000nits;
4, Durable fresh color and High brightness;
5, Support any format of video;
6, Remove the tools, improve the serviceability;



FAQ

1, What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks ;
2, Every Customer should know:
LED module may have some color difference if you order one type product two more times;
3, How long could I receive the inquiry reply?
You will get a reply within 24 hours

Product Parameters



ItemsP4mmP5mmP6mmP8mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD2525SMD2727SMD3535SMD3535SMD3535Pixel Pitch4mm5mm6mm8mm10mmPixel Density62500 dots/m240000 dots/m227777 dots/m215625 dots/m210000 dots/m2Module Size(mm)256x128160x160192x96or 192x192256x128320x160Pixels/Module64x3232x3232x16 or 32x3232x1632x16Cabinet Size(mm)768x768960x960960x9601024x1024960x960Pixels/Cabinet192x192192x192160x160128x12896x96Cabinet Weight24KG36KG36KG41KG36KGBrightness>5500cd/>5500cd/>6000cd/>5000cd/7000cd/Viewing Distance>4m>5m>6m>8m>10mPowerMax: 1300Max: 1300Max: 1300Max: 1000Max: 1000Consumption(W/)Ave: 300Ave: 300Ave: 260Ave: 260Ave: 300Driver Mode1/8 scan1/8 scan1/4 scan or 1/81/4 scan or 1/81/2 scanViewing AngleH: 120°;   V: 120°Cabinet MaterialCold Rolled Steel or aluminumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our project:



Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of a fully automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV, and other equipment.

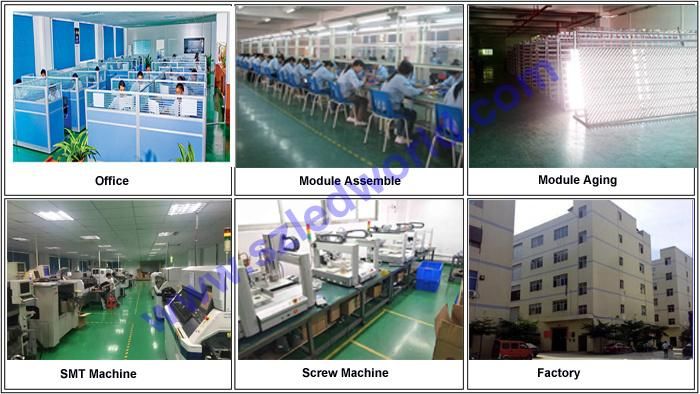

Our factory:


Applications:Business Organizationssupermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security companies, insurance companies, post offices, hospitals, schools, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

Control system:


Installation:



Steel structure:


Certification:



Training:
We offer training for free.
Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.
We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
