Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol

Fuzhou Wasendar Paper Craft Products Co., Ltd. / 2022-06-23

Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol

  • After-sales Service:Supplier Warranty
  • Warranty:12 Months
  • Certification:CE
  • Condition:New
  • Standard:Standard
  • Language:Spanish, Japanese, German, French, English

=== Base Info ===

  • Model NO.:USBCAN-II FD
  • Update Method:by Internet
  • Type:Engine analyzer
  • Parameter:PC Complies with USB2.0 High-Speed Specifications
  • Protocol:Support Can2.0A, B Protocol, Comply with ISO11898-
  • Interface:Integrated 2 Way Canfd Interface
  • Communication Baudrate:40kbps to 1Mbps
  • Baud Rate:Can Fd Baud Rate Is Arbitrarily Programmable From
  • Resistance:Built-in 120 Ohm Terminal Resistance, Can Be Contr
  • Transport Package:Carton
  • Specification:103x63x24mm
  • Trademark:GCAN
  • Origin:China
  • HS Code:8543709990
  • Production Capacity:10000

=== Description ===
CANFD supports ISO standardSupport ECAN Tools test software, support Windows series systemProvide host computer secondary development interface function
Fonction

Support standard CAN2.0A / B and CAN FD data communication

USBCAN-II FD can not only support ISO  standard CAN FD format data, but also compatible with standard CAN2.0A / B format data. When USBCAN-II FD is used to test the CAN FD network, the maximum baud rate can be set to 5Mbps, and the maximum data length can be configured to 64 bytes, which can meet the usage of CAN FD network monitoring, analysis, and testing on the market.

Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol
Has two independent CAN / CAN FD channels

USBCAN-II FD has two independent CAN / CAN FD channels, and the data between the two channels will not affect each other. Users can use the device to connect two independent CAN / CAN FD networks at the same time. The two CAN bus interfaces of USBCAN-II FD and the external CAN bus have an electrical isolation level of 2500V, which can effectively avoid the backflow damage caused by the different ground potentials of different nodes, and is particularly suitable for testing electric vehicles and trains.

Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol

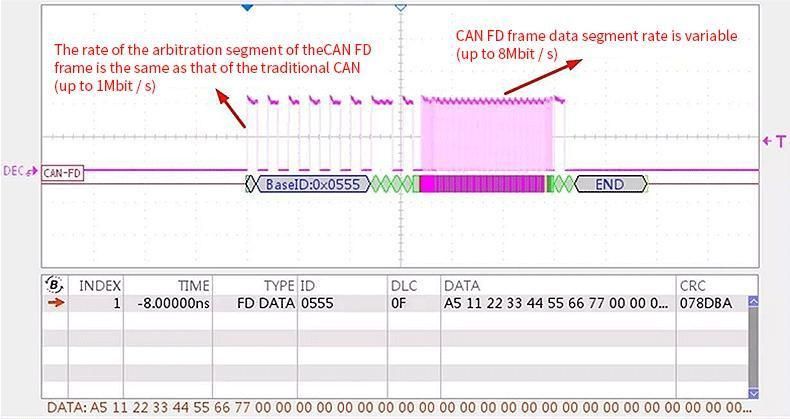

CAN FD bus with variable baud rate

The frame data segment of standard CAN FD data supports variable baud rate, and USBCAN-II FD supports variable baud rate function, so almost all CAN FD networks on the market can be tested and analyzed.

Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol

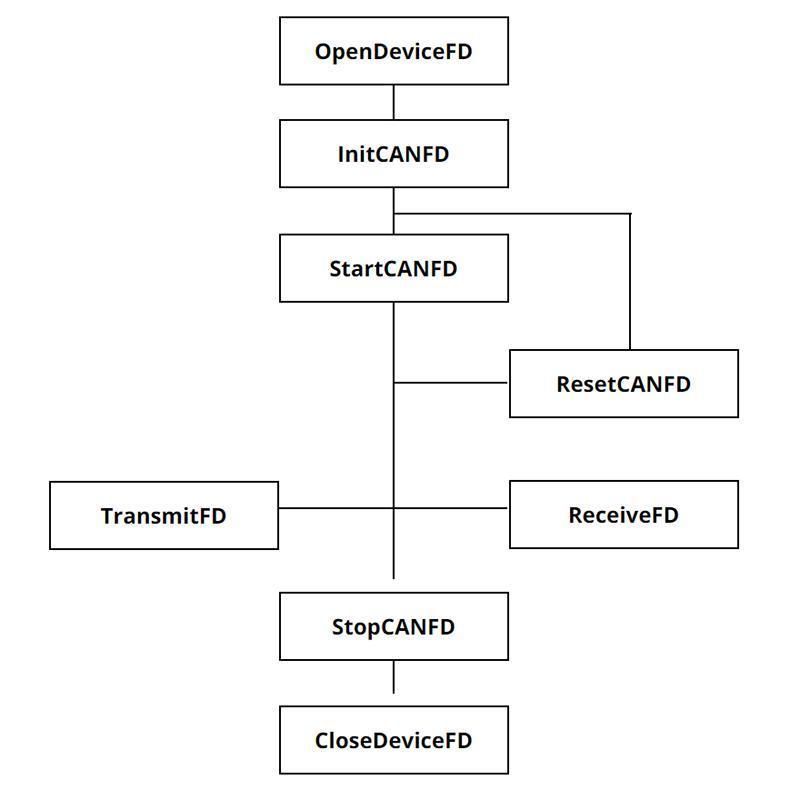

Secondary development

USBCAN-II FD supports secondary development by users. Our company provides users with complete development library files (dll, lib, h) and development reference routines. Users can develop their own software according to actual needs. If the user has used our company's other USBCAN secondary development before, you only need to make a simple modification to the previous software to
complete the development of CAN FD software.
Gcan USB-Can-II Fd Analyzer Supports J1939 ProtocolWhy choose us1.Our company with ten year's experience in CAN bus industry.
2.A full range of pre-sales and after-sales service support.
3.All the main products are independently developed by our company.
4.The company uphold the quality of conscience,the concept of costomer first.
Gcan USB-Can-II Fd Analyzer Supports J1939 Protocol
