China Factory Wholesale P3 Indoor Full Color LED Board Display

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：3mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：111111 , M²
• Scanning Mode：1,16 Scan

=== Base Info ===

• Model NO.：LW-FI 3
• System Operating Platform：Win7 XP Vista
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, CCC
• LED Type：SMD2020
• Viewing Angle：H:140 V140
• Traditional Cabinet：Metal Plate
• Module Size(mm)：192X192X13
• Cabinet Size(mm)：384X384
• Cabinet Material：Aluminum
• Cabinet Weight(Kg)：9kg
• IP Grade：IP31
• Mtbf：10000h
• Compliant Standard：CE,FCC,RoHS,ETL,CCC
• Transport Package：Plywood Box or Flight Case
• Specification：CE, ROHS, CCC, FCC
• Trademark：LED World
• Origin：Shenzhen, Guangdong, China.
• HS Code：8528591090
• Production Capacity：5000sq. M,Month

=== Description ===

Item
Indoor Fixed LED display SeriesPixel Pitch(mm)3mm4mm5mm6mmPixel density(pix/m2)111111625004000027777LED Type2020202035283528Viewing AngleH:140°,V:140°Color Depth(nits)1000120015001500Drive Method1/321/161/161/16Color Depth16384Refresh Rate(Hz)1200120012001200Module Size(mm)192×192×13256×128×13160×160×13192×192×13Cabinet Size(mm)384×384512×512×133640×640×133768×768×133Cabinet MaterialAluminumIron Sheet MetalIron Sheet MetalIron Sheet MetalCabinet weight(kg)9152332Voltage110/240VAverage.power(W/m2)300250160120Max.power(W/m2)900750480350IP GradeIP31Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCE,FCC,RoHS,ETL,CCC

Project case:




Product detail:

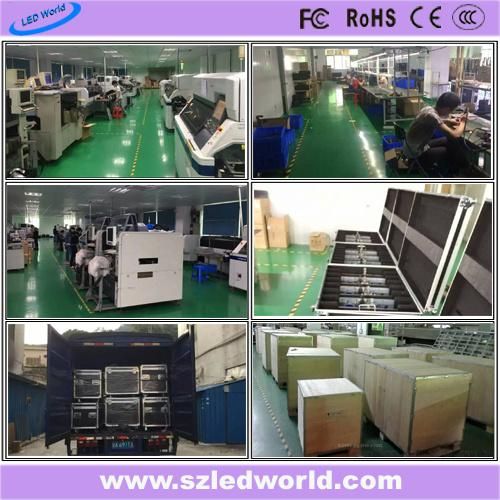

Workshop:
