Front Service P10 Outdoor Fixed LED Display with 960X960mm Panel

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Density：10000 Pixels,M2

=== Base Info ===

• Model NO.：P10
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Refresh Rate：>1920Hz
• Panel Material：Steel, Aluminum
• Brightness：>6500nits
• Processing：16bit
• Servicing：Front,Rear
• Control System：Nova
• Viewing Angle：160 Degree
• Warranty：2 Years
• LEDs：Nationstar
• Power Supply：Meanwell
• Transport Package：Flight Case or Plywood Case
• Specification：960mmx960mm
• Trademark：Bako Vision
• Origin：China
• HS Code：8528591090
• Production Capacity：10000sqm,Month

=== Description ===

Basic Info.

Model NO. P10 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL Refresh Rate >1920Hz Panel Material Steel/ Aluminum Brightness >6500nits Processing 16bit Servicing Front/Rear Control System Nova Viewing Angle 160 Degree Warranty 2 Years LEDs Nationstar Power Supply Meanwell Transport Package Flight Case or Plywood Case Specification 960mmx960mm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 10000sqm/Month

Product Description

Front Service P10 Outdoor Fixed Led Display with 960x960mm panel

P10 Outdoor Fixed Led Display features
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.
4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing new module with a smaller pixel, no need to purchase a new screen, this can save lots of costs.

P10 Outdoor Fixed Led Display Specs

	BOF-F-10
Physical Pitch	10 mm
Pixel Configuration	SMD 3535
Pixel Density	10,000 pixels/m²
Module Dimensions (W × H) (mm)	320 × 160
Panel Dimensions (mm)	1280 × 960 ×  150
NO .of Modules Per Panel (W × H)	4 × 6
Physical Resolution of Module (W × H)	32 × 32
Physical Resolution of Panel (W × H)	96 × 96
Panel Material	Steel / Aluminum
Weight(m²)	65/45
Processing	16 bit
Colours	281 trillion
Contrast Ratio	2,000 : 1
Average Power After Energy Saving	90 W/ m²
Max Power After Energy Saving	230 W/ m²
Refresh Rate	>1,920 Hz
Brightness	≥6500 nits
Vertical Viewing Angle	160°
Horizontal Viewing angle	140°
Expected Lifetime	100, 000 Hrs

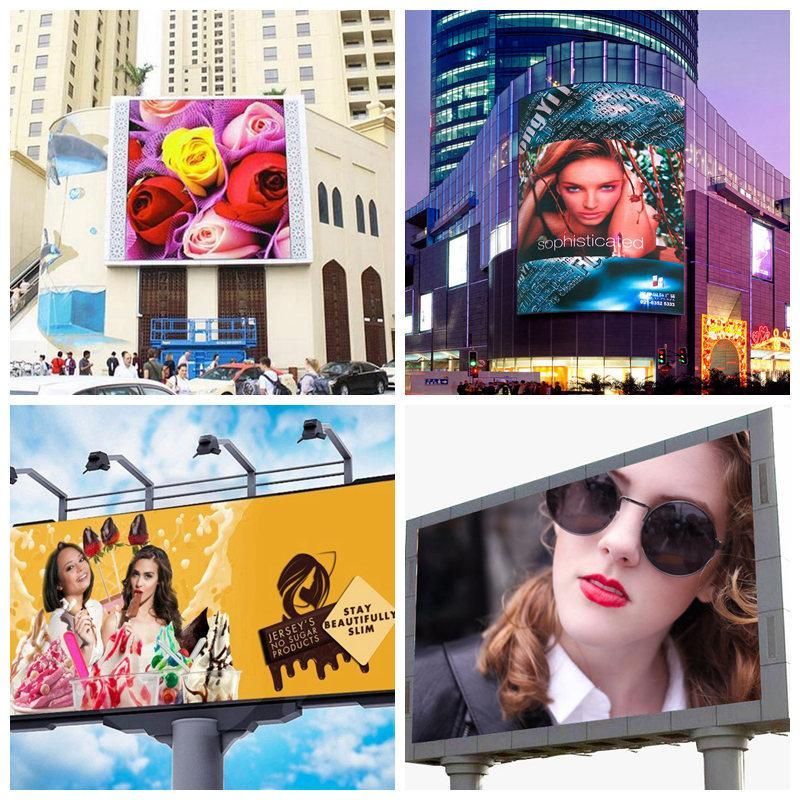

cases
