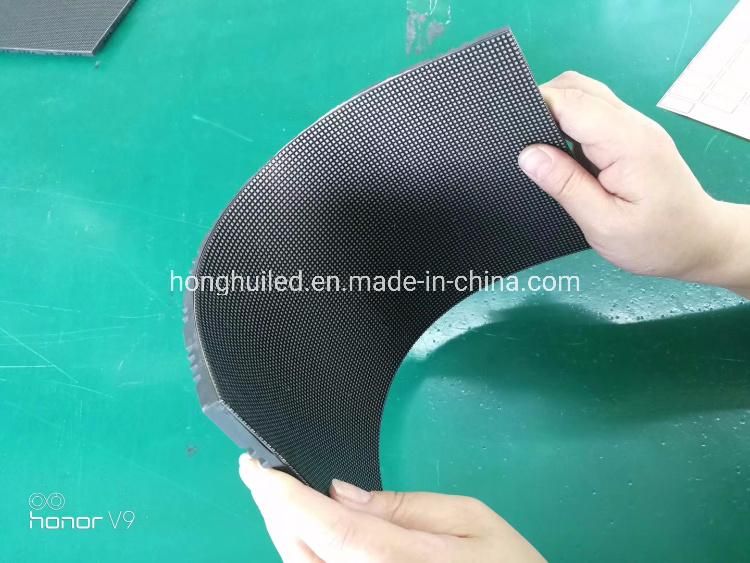

P2/P2.5/P3/P4/P5 Soft LED Display Module for Special-Shaped Screen

Freezer Spacer / 2022-06-27

Tube Chip Color：Full Color
IP Rating：IP43
Pixel Pitch：2.5mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：300W,M2

=== Base Info ===

Model NO.：P2.5
Pixel Density：160000DOT,M2
Scanning Mode：1,32s
Display Type：LED Video Display
Application：Arc LED Display, Cylindrical Screen and Waved Scre
Certification：CE, RoHS, UL, CCC, FCC
Product Name：P2.5 LED Display Module
Gray Levels：65536
Color Temperature：6500-7000K
Refresh Rate：900Hz
Display Contrast：2500:1
Frame Rate：60Hz,S
Service Life：100000h
Use Voltage：AC 90-240V
Operating Voltage：DC5V
Maximum Power Consumption：600W,M2
Transport Package：Carton,Case
Specification：320mm*160mm
Trademark：Honghui
Origin：Shenzhen, China
HS Code：8528591090
Production Capacity：350000

=== Description ===
  Pixel Pitch 2.5 mm Pixel density 160,000 dots/m2 Color temperature6000K--8000KViewing angleH:140;V:140Dead LED lamp rate≤0.1‰Non-Flatness <0.2mm   Module interval   <0.2mm    Packaging Gross Weight(KG)   20 kg (Estimated data)    Packaging dimension   up to module size    Brightness adjusted   256 grade by auto-optic/color &8 grade by hand    Input signal   RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc    Life-span    ≥1 00,000 hours    MTBF    5,000 hours    Frame frequency   25 - 60 Hz / s    Refresh rate   ≥2,000 Hz  / s    Single Input(with video processor)   HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.    Control Distance   120 m (no repeating); Optical fiber
transmission: 0.5km- 10km    Systems Operating Platform   Windows XP, Win 7, Win8, Win8.1, Win10   2. Product Details
P2/P2.5/P3/P4/P5 Soft LED Display Module for Special-Shaped Screen

3. Production process

4.Features and advantages

1. High refresh rate: With NOVA STAR  control system, no scanning line when photographed

2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect

3.High resolution: The most apparent features of the new generation of LED display

4.Good color uniformity: With brand Lamp  Nation Star and high refresh MBI5124 IC.

5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted

6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time

7. Long life span: over100,000hours, warranty from 2 to 5 years.

1. Price : We can give you the most satisfying price, cause we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry. Once the market change ,we will flexibly adjust the price and timely notify you about our update price. YOU WANT = WE DO. First time trial order will let you strongly shake hands with us. We warmly welcome any kind quality inspection process from your team.

2. Quality : Serious 24 hours led module testing time and 72 hours led display aging time. Before shipping and within the warranty time, our team will track the goods situation to satisfy your demand.

3. Production: Support Any Kind Special Customized Design. YOU NEED =WE DESIGN. We design exactly the same material you mentioned with our team in the sales contract and business negotiation process. We are direct factory, if your led project time is definitely fixed, without any change, we will arrange your order firstly to catch up with your time. MEET YOUR TIME = SUPPORT OUR TEAM.

5. Our Factory and Our Service

A	96 Hours Serious Testing Time
B	72 Hours Display Testing Time
C	24 Hours Module Testing Time
D	24 Hours After-sales online Service
E	12 Hours LED Inquiry Response Time
F	8 years Professional LED display factory
G	5 years Excellent Domestic Big Government LED Designer
H	3 years Expanding International Trade Experience

Question 1: How can I trust your HONGHUI LED factory ?

Answer : We specialized in led since 2015, it is over 8 years. In the past 8 years, we develop so well. Tomorrow and future, we will largely expand our LED market, you will see it .
Welcome to try our LED sample quality .
We do have100% confidence in our LED product.

Question 2: What is the warranty of your led display?

Answer: We have warranty of 2-5 years.

Q3:Is it easy to install this led display ?

Answer : Installation manual book or video will be provided to you.
If you still have problem on it, we will arrange professional engineer to guide you remotely or to your place help you.

Q4: What's your payment term? How long is your delivery time ?

Answer: We accept T/T, ALIBABA Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
