• Tube Chip Color：Full Color
• IP Rating：IP67
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：KS-DOOH-P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, FCC
• LEDs：Nationstar SMD3535
• Brightness：6500 Nit
• Module Size：320*320mm
• Module Resolution：32*32
• Product Name：P10 Outdoor Front Service LED Display
• IC：Mbi5124IC
• Transport Package：Plywood Case
• Specification：960*960mm
• Trademark：KS
• Origin：China
• HS Code：9405600000
• Production Capacity：100000sqm,Year

=== Description ===
Light ChipTypeSMD3535Chip parametersRed λd:(620-625nm) IV:(800-960mcd)Color1R1G1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd) LED ModulePixel Pixel10 mmModule Size320 mmWX320 mmHModule Resolution32x32=1024(Dots)Module Weight1.5kg LED Display CabinetPixel Density10000 Dots/m2Frame Frequencyno less than 60 frame/secCabinet Resolution96x96=9216(Dots) Input VoltageAC110-220V±10%,50/60Hzabinet Dimension(W*H*D)960x 960 x 110mmOutput VoltageDC-5V,40A/60A/80AModule Quanty /Cabinet9 pcs = 3(w) x 3(h)Grey Scale Levels16bitCabinets MaterialIron CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight37 kgBrightness Adjustment256 color levelsBrightness≥6500 nitsMTBF( mean time between failures)5000 hoursViewing AngleHorizontal 140°, Vertical 120°Life-span100,000 hoursNearest Viewing Distance10 meterProtection Level(front/back)IP65Power Consumption (Max)900 w/m2Malfunction Dot Rateless than 0.0001Power Consumption (Average)350 w/m2Working Temperature-30ºC~50ºCDisplay FunctionText,Graphics,VideoHumidity15%~85%Refresh Rate≥1920HzScan Mode1/2
Product description:


What is DOOH Led Display ?

DOOH is an all-new Digital Out-Of-Home advertising LED display billboard, unlike most of traditional outdoor display display, A1 featuring a thiner and lgihter cabinet, a fundamental redesigned weatherproof module bring A1 to a whole new level of performance.Beyond that, A1 is also a common cothode cabinet, it can save energy up to 75% without reducing brightness and contrast ratio.

Feature and Advantage

1. Aluminum frame, lightweight cabinet
A1 comes in a frame architecture and made of aluminum, each cabinet weighs only 28.5kg, lightweight cabinet result in easier handling, assembly and less installation cost.

2.Common cathode technology, saving energy up to 75%

3.Front and rear access

4.High ingress protection level, stable and durable

5.Customizable cabinet size

To provide customers with the bespoke solutions wthin the shortest timeframe, A1 cabinet is available in different sizes to meet market expectations or different project dimension requirments.

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines

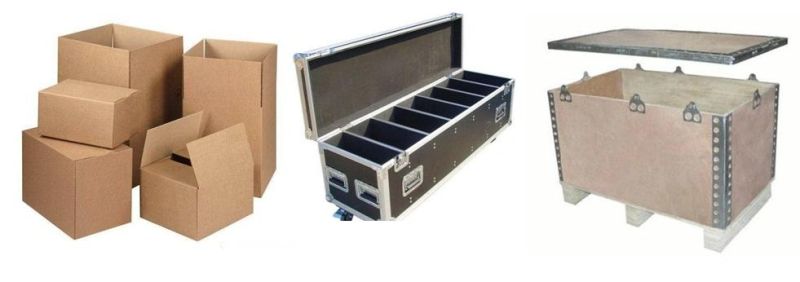

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
