P5 Full Color High Brightness Taxi Top Outdoor LED Display

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：5mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：P5
• Pixel Density：40000 DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>5500nits
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Cabinet Material：Aluminum
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Novastar
• Voltage：AC110-240V
• IP Rate：IP65
• Transport Package：Plywood Cases
• Specification：1120x320mm(Double-sided)
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

=== Description ===

Item

Outdoor back service taxi top P5 led display screen

Model Number

P5

Pixel Pitch

5mm

Pixel Density(pixels/M2)

40000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

160x160mm (options)

Module Resolution(pixels)

32*32 (otions)

Min.Viewing Distance(m)

5-50

Brightness(nits)

>5500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

1/8 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

1120x320mm(double-sided)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

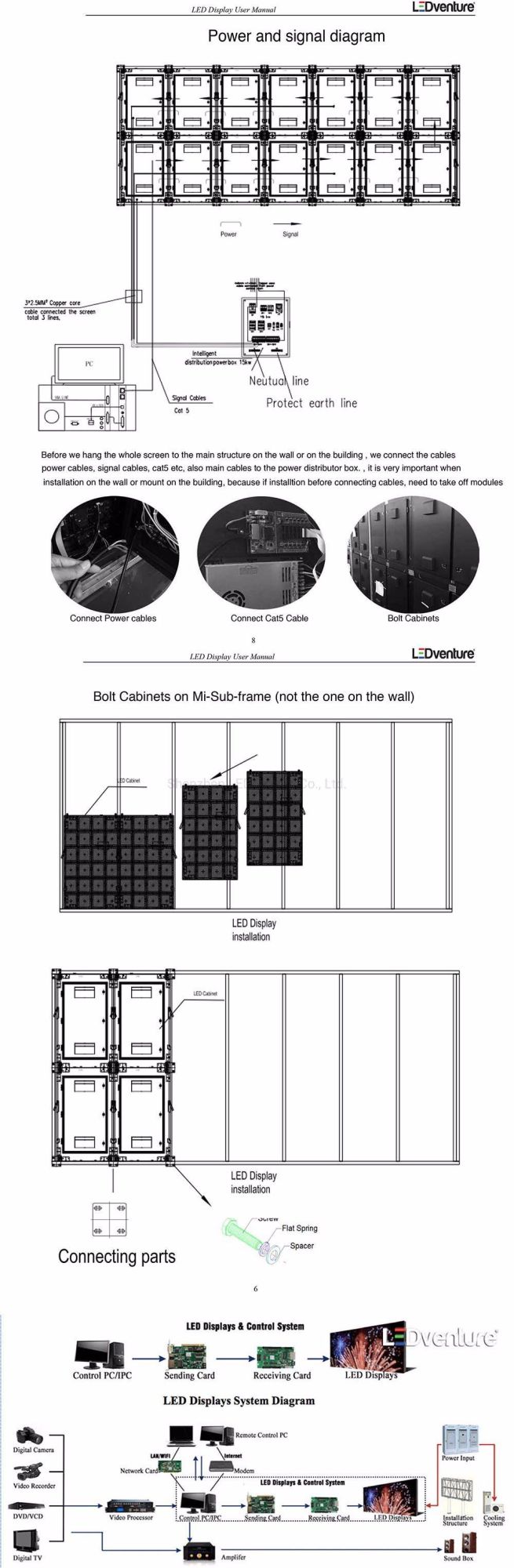

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.



Part 6: Packing information by plywood cases, packing well and easy to load



Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
