Shenzhen P2.5 Indoor Poster LED Display Screen for Advertising

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：P2.5
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000pixels,M2
• Scanning Mode：1,32 Scan

=== Base Info ===

• Model NO.：P2.5
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：1000nits
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• Cabinet：Alu,Steel
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：3meters
• Service Solution：Front + Rear Service
• Weight：35kg,M2 (Aluminium)
• Installation：Back Bolted Hanging
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x1920mm
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

=== Description ===
Overview Product Description

P2 P2.5 Indoor Outdoor LED Video display Wall for advertising is popular for indoor advertising media, such as in airport, shopping mall, shows etc, it is light weight design, HD resolution with high contract rate, also refresh rate is good level to ensure image quality, hot sale pixels are P2.5mm and P3mm.

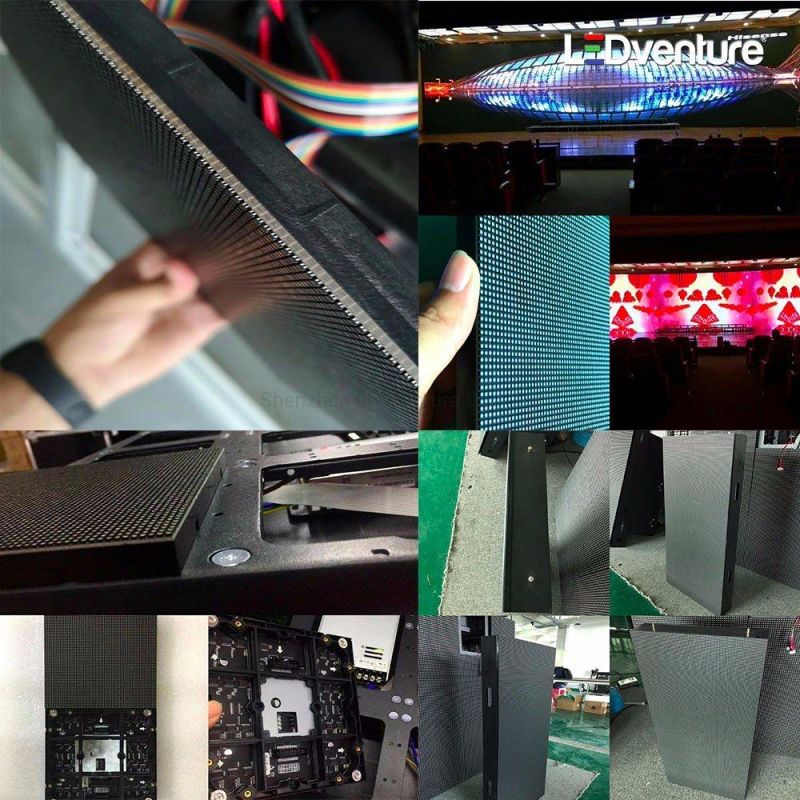

Detailed Photos

Indoor led video wall detail images included hardware.



Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.





Technical Specification



Item

High Brightness P2.5 Indoor LED Poster Display Screen

Model Number

P2 P2.5

Pixel Pitch

2mm 2.5mm

Pixel Density(pixels/M2)

160000-250000 pixels

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module size(mm)

160x160mm

Module Resolution(pixels)

64*64 (P2.5)

Min.Viewing Distance(m)

2.5-3meters

Brightness(nits)

100

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size(mm)

640x480mm (option)



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ/60HZ

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization



Installation Methods

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.








Packing Information

By plywood cases, packing well and easy to load.





Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
