Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen

Kunshan Grepak Packing Materal Co., Ltd. / 2022-06-27

Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:4mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:500W,M2

=== Base Info ===

  • Model NO.:P4 outdoor
  • Pixel Density:62500dots,M2
  • Scanning Mode:1,8 Scan
  • Display Type:LED Video Display
  • Application:Outdoor, Advertising
  • Certification:CE, RoHS, CCC
  • LED Specification:SMD1921
  • Panel Size:256mmx128mm
  • Lamps Brand:Sanan,Kinglight,Nation Star
  • Brightness:5500-7000CD,M2
  • Refresh Frequency:1920-3840Hz,S
  • Driving IC:Mbi5124,16169,Icn2038,16207 Ect
  • View Angle:Horizontal140°,Vertical20
  • Life Span:100000 Hours
  • Working Volitage:110V to 240V
  • Control Card:Nova Star,Colorlight,Linsn,HD
  • Working Temperature:-20°c to +60°c
  • System Operating Platform:Window XP
  • Humidity:10%~95%
  • H.S Code:8528591090
  • Delivery Time:10 to 20 Days, Dependons on Quantity
  • Transport Package:Plywood or Airline Fly Case Cabinet
  • Specification:1024mmx768mm
  • Trademark:Hooshine
  • Origin:Quanzhou, Fujian, China
  • HS Code:8528591090
  • Production Capacity:3000m2,Month

=== Description ===
Overview Product Description

Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display ScreenFront Service High Refresh Rate Outdoor P4 SMD1921 LED Display ScreenFront Service High Refresh Rate Outdoor P4 SMD1921 LED Display ScreenFront Service High Refresh Rate Outdoor P4 SMD1921 LED Display ScreenFront Service High Refresh Rate Outdoor P4 SMD1921 LED Display ScreenFront Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen

Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen





Pixel Information

Pixel Pitch

4mm

Pixel Density

62500 Pixels/m²

 Pixel Configuration

1R1G1B

LEDs Brand

Sanan/Kinglight/Nation Star

LEDs Wavelength

Red:    615 nm - 625 nm

Green:  520 nm - 535 nm

Blue:   465 nm - 475 nm

LED Module

Module Size

256 mm (Width) × 128 mm(Height) = 0.032768/m²

Module Resolution

64 pixels(Width) × 32 pixels(Height) = 2048 pixels

LED Cabinet

Cabinet Size

1024 mm(Width) × 768mm(Height) = 0.786432/m²

Cabinet Resolution

256Pixels(Width) × 192 Pixels(Height) = 49152 Pixels

Total QYT Module Per Cabinet

4 Modules(Width) × 6 Modules(Height) = 24Module

Cabinet Weight

23 kg

Cabinet Material

Steel or aluminum

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

1000 Watt/ m²

Avg. Power Consumption

500  Watt/ m²

Viewing

White Balance

 X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K)

Brightness

6000-6500cd/m²

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:120°/ Vertical:60°

Viewing Distance

10 - 150 meters

Ambint Conditions

Temperature Range

Storage:-40 °c  to +85°c.; Working:-20°c to +60°c

Operating Humidity

10%90%RH

Ingression Protection Grade

Front Side: IP65 (Resist spraying of water gun directly);

Back Side: IP54  (Resist Rain)

Processing

Scanning Mode

1/8 Scan

Refresh Frequency

1920HZ-3840HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Controller

Nova Star,Cololight,Linsn,HD etc.

Other

Life Span

100,000 Hours

Hooshine Packing



Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen

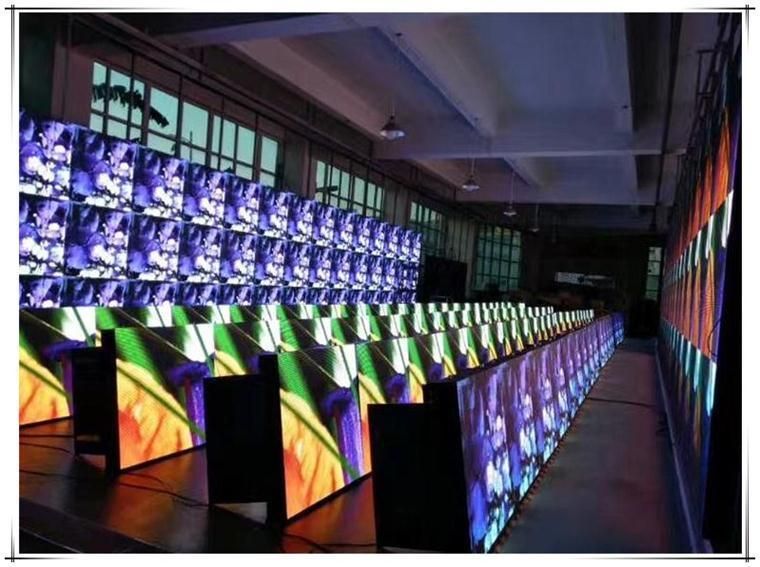

Factorty Tour



Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen


Our Service



FAQQ1: Where is your nearest Sea Port?

A: Our nearest sea port is at Xiamen,Fujian Provice

Q2: What's the brand of your diode chip?A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.

Q3. Can I order a sample for led display screen?A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.

Q4. How do you ship the goods and how long does it take to arrive?A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.

Q5. Is it OK to print our logo on led screen product?A: Yes,we can print your logo according your request.

Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.

Secondly, during the guarantee period, we will send new parts with new order for small quantity.

If the screen has serious damaged ( e.g. The whole cabinet couldn't work normally) caused by human, we would mend it with charge based on the cost


Front Service High Refresh Rate Outdoor P4 SMD1921 LED Display Screen
